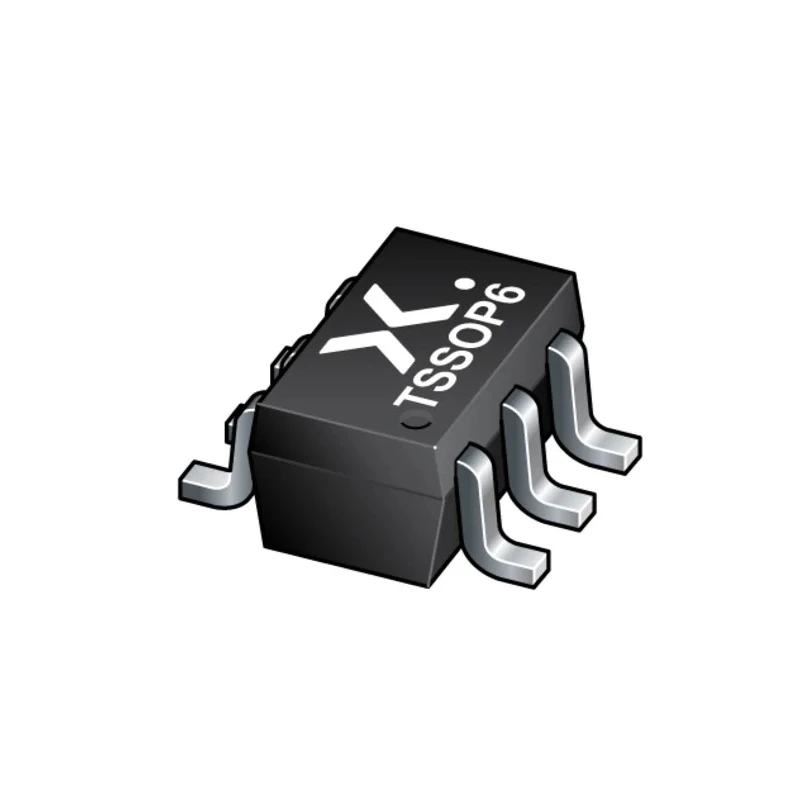

Nexperia 3-Input Multifunction Logic Gate 6-Pin SC-88 Surface Mount AUP Family 74AUP1T97GW-Q100H

Nexperia 74AUP1T97GW-Q100H is a multifunction logic gate IC designed for advanced electronic component applications. This device is surface mount compatible in a 6-pin SC-88 package, supporting 3-input logic functions suitable for a wide range of electronic circuits requiring configurable logic states.

The device integrates level translating Schmitt-trigger inputs, providing overvoltage tolerance up to 3.6 V and robust noise immunity, making it ideal for high-performance, low-voltage digital systems. Its wide operating voltage range from 2.3 V to 3.6 V coupled with low static power consumption of 1.5 μA maximum ensures efficient operation in power-sensitive designs.

Additional features include low noise overshoot and undershoot of less than 10% of VCC, IOFF circuitry that enables partial power-down mode to reduce power usage when inactive, and excellent latch-up immunity exceeding 100 mA, aligned with JESD 78 Class II standards. These features enable reliable performance in automotive and industrial applications.

The 74AUP1T97GW-Q100H functions as multiple logic gates, including multiplexer (MUX), AND, OR, NAND, NOR, inverter, and buffer, configurable through a 3-bit input, offering high design flexibility. It complies with JEDEC and automotive AEC-Q100 standards, meeting stringent quality and reliability requirements.

Multifunction 3-input logic gate IC with level translating Schmitt-trigger inputs. Wide supply voltage range of 2.3 V to 3.6 V with low power dissipation. Overvoltage tolerant inputs and high noise immunity ensure robust performance.

Partial power-down via IOFF circuitry for energy-efficient operation. Latch-up performance exceeding 100 mA per JESD 78 Class II. Operating temperature range from -40°C to 125°C suitable for automotive use. Compact 6-pin SC-88 surface mount package for space-saving PCB layouts.

Conforms to JEDEC and AEC-Q100 automotive standards for quality assurance.

This component is well-suited for industrial, automotive, telecommunications, consumer electronics, and embedded systems requiring versatile Logic Gate functionalities with robust electrical characteristics. It is suitable for engineers designing low voltage logic circuits with focus on noise immunity and power efficiency.
