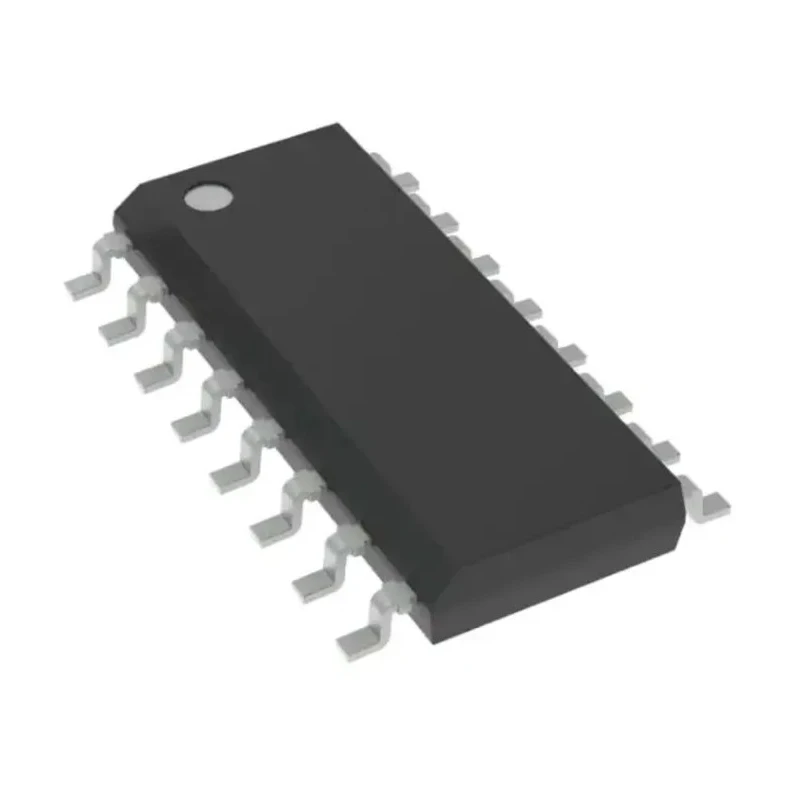

STMicroelectronics Surface Mount 8-bit DMOS Shift Register SO-16 4.5 - 5.5V 125°C STPIC6C595MTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 10mm |
| Model | STPIC6C595MTR |
| Width | 4mm |
| Mount Type | Surface |
| Series | STPIC6C595 |
| Maximum Operating Temperature | 125°C |
| Package Type | SO-16 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | DMOS |
| Minimum Supply Voltage | 4.5V |
Key Features
- Suitable for moderate load power systems with low current design.
- Contains an 8-bit serial-in, parallel-out shift register with D-type storage register.
- Built-in voltage clamp protects against inductive transient damage.
- Low on-resistance of 4 ohms typical for efficient switching.
- Eight 100 mA DMOS outputs with a 250 mA current limit capability.
- 33 V output clamp voltage ensures robust performance.
- Device architecture allows easy cascading for multi-stage configurations.
- Low power consumption supports energy-efficient applications.
Product Description
STMicroelectronics STPIC6C595MTR is an 8-bit surface mount shift register using medium voltage, low current DMOS technology, packaged in a SO-16 surface mount form factor. It operates within a supply voltage range of 4.5 V to 5.5 V and can withstand maximum operating temperatures up to 125°C, suitable for demanding industrial electronic environments.
This device integrates an 8-bit serial-in, parallel-out shift register feeding an 8-bit D-type storage register, making it ideal for applications requiring precise digital data handling and moderate load switching capabilities in communication, control, and power management systems.
The STPIC6C595MTR features low on-resistance (approximately 4 ohms), eight high current DMOS outputs rated at 100 mA each with a safe current limit of 250 mA. It offers an output clamp voltage of 33 volts for inductive transient protection, enhancing durability in industrial and automotive electronics.
Designed to be easily cascaded for expanded output capacity, this shift register finds applications across industrial automation, embedded systems, and electronic instrumentation. Its surface mount SO-16 package enables efficient PCB assembly and space-saving layouts.
Low Rdson of 4 ohms typical ensuring efficient power handling. Eight DMOS outputs delivering 100 mA each with 250 mA limit. Built-in voltage clamp for inductive transient protection. Supports temperatures up to 125 degrees Celsius.
Compatible with supply voltages from 4.5 to 5.5 volts. Cascadable design for extended output implementation. Surface mount SO-16 packaging for compact design integration. Low power consumption suitable for energy-conscious designs.
This Shift Register is RoHS compliant, adding to its suitability for environmentally conscious production standards. Typical use cases include electronic control units, automation systems, electronic instrumentation, and other semiconductor applications in industrial and laboratory settings.
Explore the full range of STMicroelectronics semiconductor products on EnvMart for advanced industrial electronics solutions.
