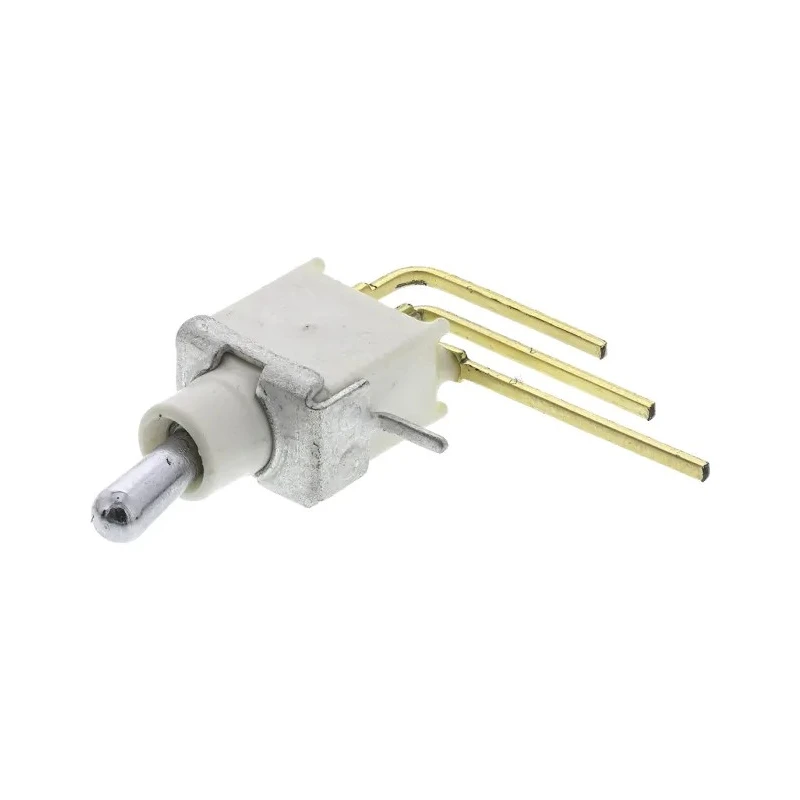

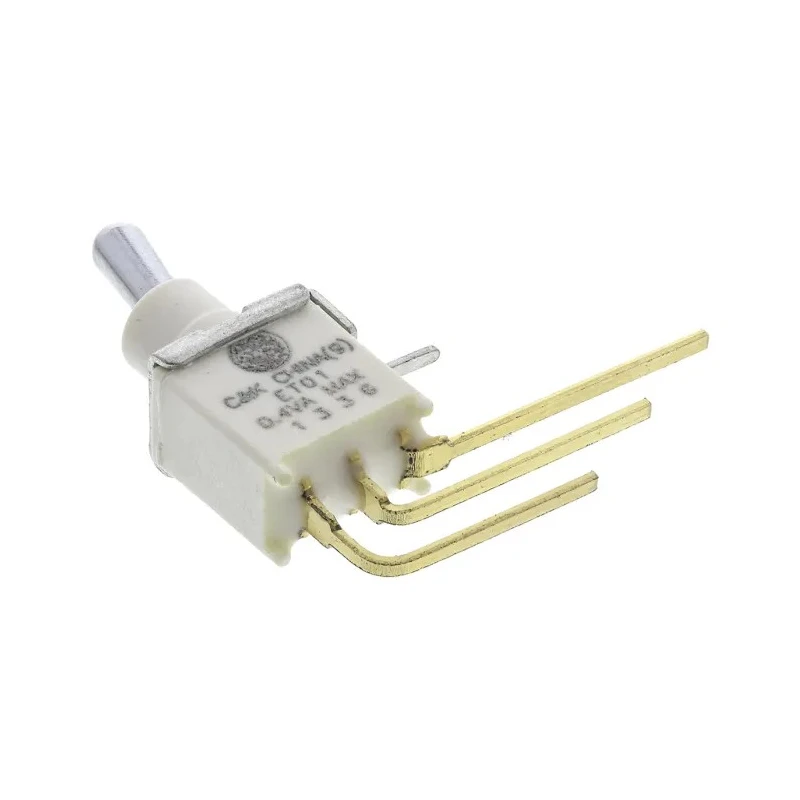

C & K Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 20 V dc 20 V ac ET01MD1AVBE
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Operating Temperature Range | -30 to +85°C |
| Length | 8.13mm |
| Model | ET01MD1AVBE |
| IP Rating | IP57 |
| Width | 6.22mm |
| Mount Type | PCB |
| Series | ET |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 6.1mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 20V ac |
| Electrical Life | 20000 cycles |
| Actuator Material | Brass |
| RS PRO Toggle Switch, PCB Mount, Latching, SPDT, Through Hole TerminalBrand | RS PRO |
Key Features
- PCB mount type with through hole terminals for secure installation.
- On-On switch operation with SPDT contact configuration.
- Operates within temperature range of -30°C to 85°C with brass actuator material.
- IP57 rated for protection against dust and water ingress.
- Epoxy resin sealed terminations providing durability and reliability.
- Gold contacts ensuring low contact resistance and extended electrical life of 20000 cycles.
- Compliant with RoHS and UL standards.
Product Description
C & K ET01MD1AVBE Toggle Switch PCB Mount On-On SPDT is a precision electronic component designed for reliable low-level signal switching in industrial, automation, and electrical applications.
This switch features a PCB mount configuration with through hole terminals that allow secure soldered connections on printed circuit boards.
The switch operation is On-On with a single pole double throw (SPDT) contact arrangement, capable of handling contact currents up to 400mA. It supports contact voltages of 20 V dc and 20 V ac, making it suitable for low-voltage control circuits.
Constructed with a brass actuator and sealed with epoxy resin, it provides robust mechanical durability and environmental protection rated at IP57, which safeguards against dust ingress and water jets.

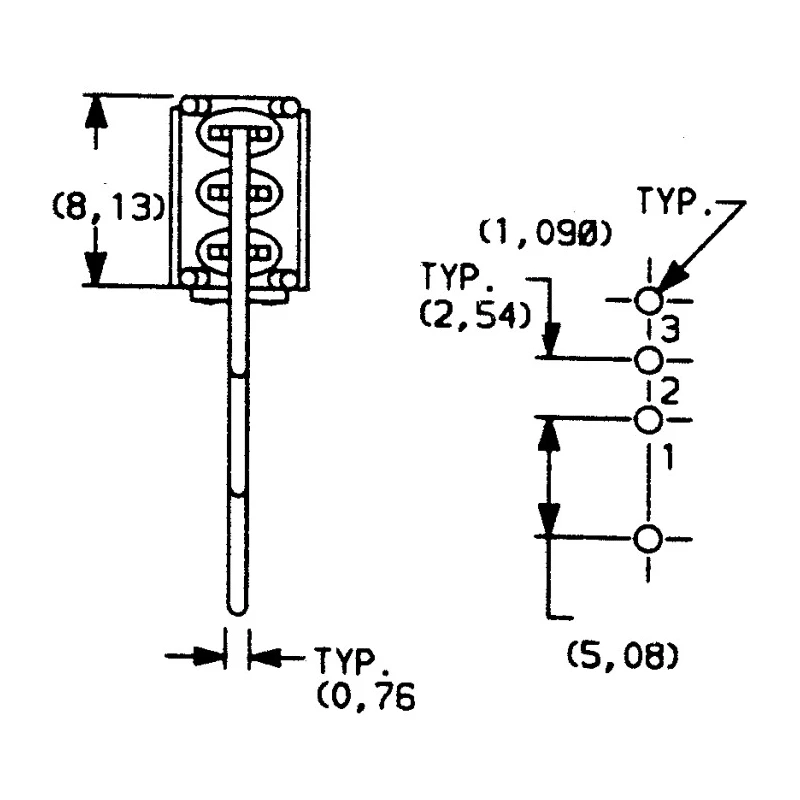

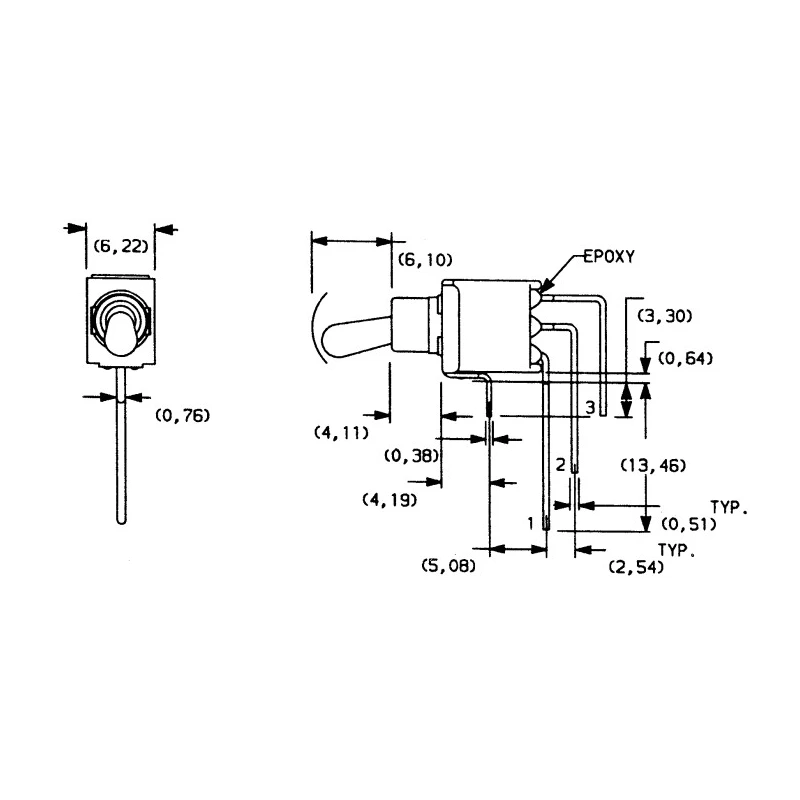

The actuator length measures 6.1mm, with a compact overall length of 8.13mm and width of 6.22mm, enabling integration into tight PCB layouts. The operating temperature range of -30°C to 85°C allows use in varied environmental conditions.
Gold-plated contacts ensure minimal wear and oxidation, extending the electrical life of the switch to 20,000 cycles, thus ensuring long-term consistent performance. PCB mount with through hole terminals for secure assembly.
On-On SPDT contact configuration for versatile switching. 400mA contact current rating suitable for low-power signals. Epoxy resin sealed terminations for durability and protection. Brass actuator delivering mechanical reliability.
IP57 ingress protection rating against dust and water jets. Wide operating temperature range from -30°C to 85°C. Gold contacts for enhanced electrical performance and life. Electrical life expectancy of 20,000 switching cycles.
Compliance with RoHS and UL safety standards.
This C & K ET Series toggle switch is ideally used in industrial automation, electronic equipment, control panels, and signal switching applications where reliability, compact size, and environmental protection are critical.
Explore more Toggle Switches and high-quality PCB mount components in the Electronics & Electricals category at EnvMart for professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration, allowing for versatile switching capabilities.
It has a maximum contact current rating of 400mA, making it suitable for low-power signal applications.
It supports contact voltages of 20 V dc and 20 V ac, suitable for low-voltage control circuits.
The operating temperature range is from -30°C to +85°C, allowing for use in various environmental conditions.
This unit has an IP57 rating, providing protection against dust ingress and water jets.
The actuator is made of brass, which contributes to its mechanical reliability.
It has an electrical life expectancy of 20,000 cycles, ensuring long-term consistent performance.
The overall length is 8.13mm, and the width is 6.22mm, making it compact for integration into tight PCB layouts.
This model utilizes a PCB mount configuration with through hole terminals for secure soldered connections.
Yes, it is compliant with RoHS and UL standards, ensuring it meets specific safety and environmental requirements.
The actuator length measures 6.1mm, which is suitable for various applications.
This switch is designed for reliable low-level signal switching in industrial, automation, and electrical applications.
