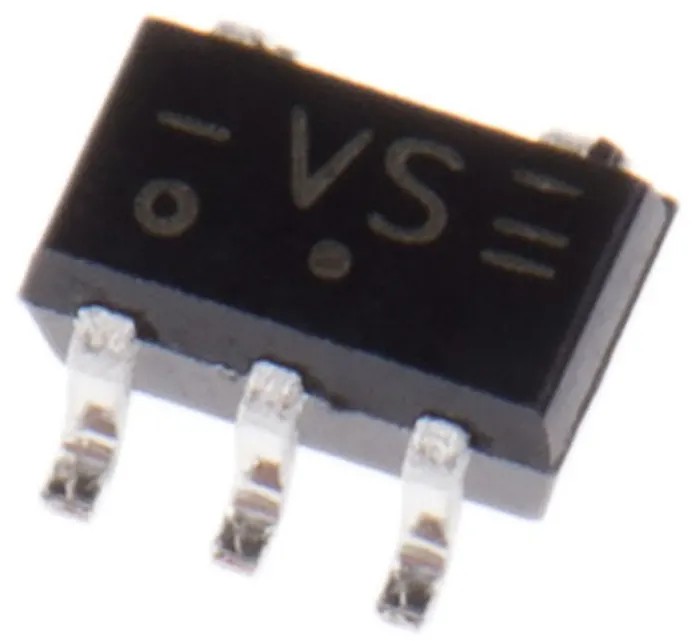

Nexperia 1 2-Input NOR Logic Gate, CMOS Low-Voltage, Surface Mount TSSOP 5-Pin 74LVC1G02GW,125

The Nexperia 74LVC1G02GW,125 is a single 2-input NOR logic gate from the low-voltage CMOS 74LVC family designed primarily for use in electronic and semiconductor applications requiring reliable, low-power logical operations. This device is surface mount-ready, packaged in a compact TSSOP 5-pin form factor, rendering it suitable for modern printed circuit board designs where space conservation is essential.

Operating with an input voltage range from 1.65 V to a maximum of 5.5 V, the gate ensures compatibility with a wide variety of power supplies and logic families including TTL and LVTTL inputs. The propagation delay time is minimal at 5.5 ns under a capacitance load of CL, supporting high-speed switching essential in timing-critical digital circuits.

This logic gate's operating temperature range of -40°C to 125°C allows deployment in various industrial, commercial, and consumer electronics environments, even under demanding thermal conditions. The device delivers a maximum high-level output current of -32mA and a maximum low-level output current of 32mA, ensuring robust signal driving capability for downstream logic components.

The gate features CMOS input circuitry without Schmitt trigger action, optimized for low power consumption and noise immunity. Its physical dimensions - 1 mm height and 2.25 mm length - facilitate compact assembly and integration in miniature electronic devices.

Single 2-input NOR gate functionality. Low-voltage CMOS logic technology for energy efficiency. Surface mount package: 5-pin TSSOP. Wide operating voltage range: 1.65 V to 5.5 V. Propagation delay time: 5.5 ns at CL. Operating temperature range: -40°C to 125°C.

Input compatible with LVTTL/TTL logic levels. Output current: max -32mA (high), 32mA (low). Compact size for PCB integration. Designed for industrial, commercial, and consumer electronics applications.

This logic gate is ideal for electronics engineers and developers seeking reliable, compact, and low-power digital logic components for system integration and prototype development. It finds application in general control logic, signal processing circuits, embedded systems, and other semiconductor-based products.
