Vishay Thyristor 800 V, 22 A, Gate Trigger Current 60 mA, Surge Current 420 A VS-22RIA80

Vishay VS-22RIA80 Thyristor is a high-performance semiconductor SCR device, designed for electronic industrial applications including battery chargers, welding equipment, regulated power supplies, and motor control circuits. Operating at a voltage rating of 800 V and current of 22 A, it provides dependable phase control switching capabilities.

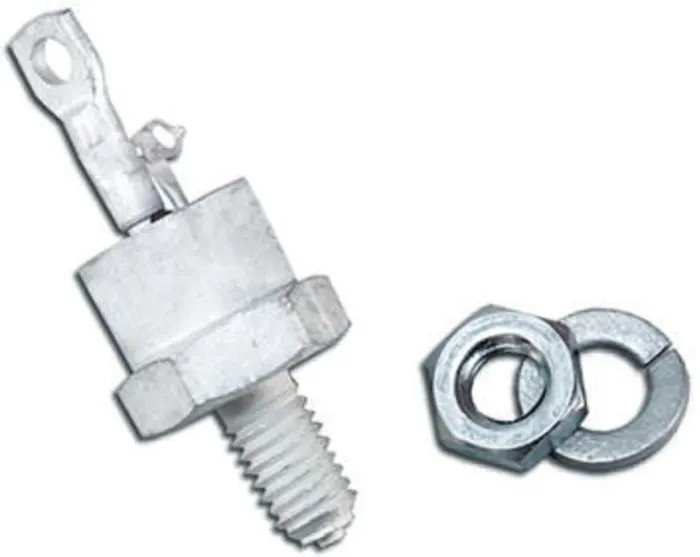

The device uses a TO-48 package type with a screw mount for secure installation. Its electrical parameters include a gate trigger current of 60 mA, surge current capacity of 420 A, and a peak on-state voltage of 1.7 V, which ensures efficient conduction with minimal losses.

It operates reliably across a broad temperature range, from -65°C to 125°C, suitable for demanding industrial environments. The two-pin configuration supports easy circuit integration and stable conduction with a maximum holding current of 130 mA.

This Vishay thyristor is designed for discrete semiconductor applications requiring robust switching characteristics without automotive certification requirements. Its repetitive peak reverse voltage of 800 V protects circuits from reverse voltage conditions.

The device features a Surge Current Rating of 420 A for high load tolerance. Gate Trigger Current is 60 mA, allowing efficient switching control. Designed with a TO-48 package and screw mount type for secure attachment. Operating temperature range spans from -65°C to 125°C, ensuring robustness in harsh environments.

Electrical design includes a Peak On-State Voltage of 1.7 V ensuring low conduction losses. Thyristor type is SCR, suitable for controlled rectification purposes. Pin count is 2, facilitating straightforward integration into circuits.

Maximum Holding Current is 130 mA, providing stable conduction maintenance. The device is RoHS compliant and designed without automotive-specific standards. Its repetitive peak reverse voltage is 800 V, offering reliable blocking capability.

This product is ideal for industrial electronics, manufacturing equipment control, HVAC systems, and power regulation solutions. The Vishay VS-22RIA80 supports robust, efficient electronic switching in critical industrial and commercial devices. Browse more semiconductor components at EnvMart for matched solutions.
