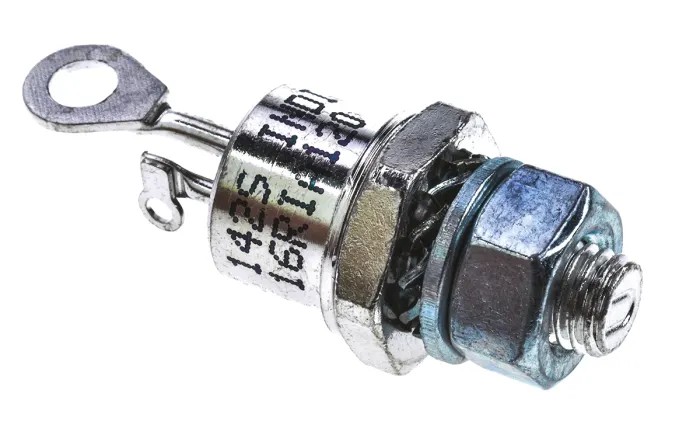

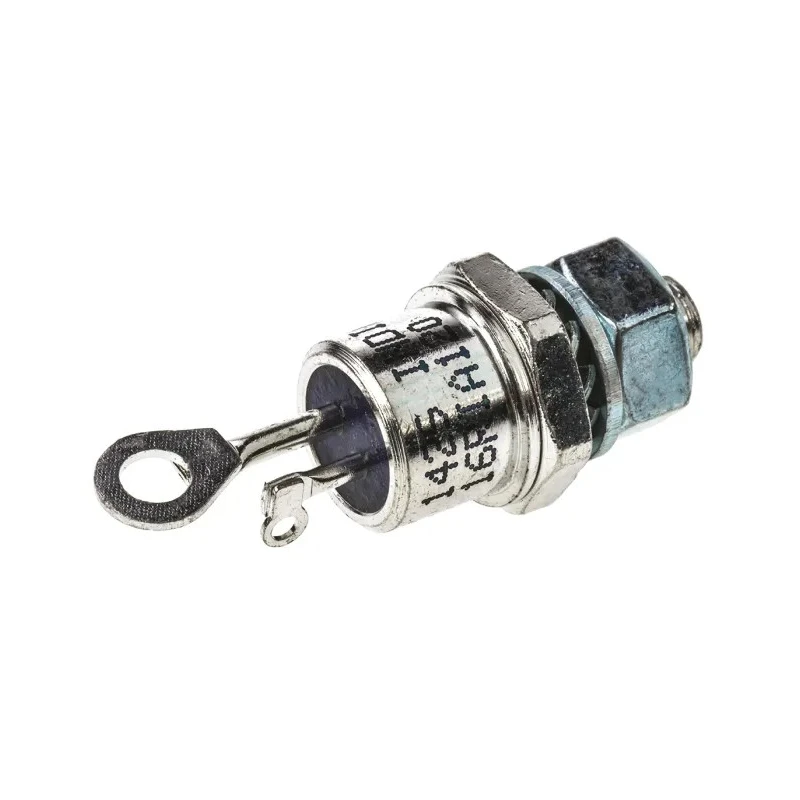

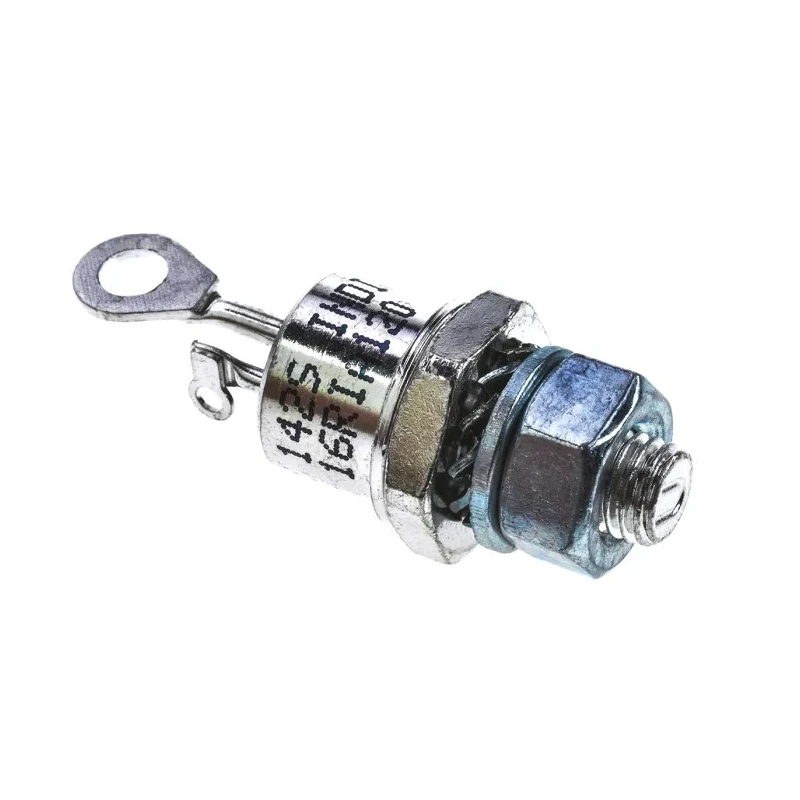

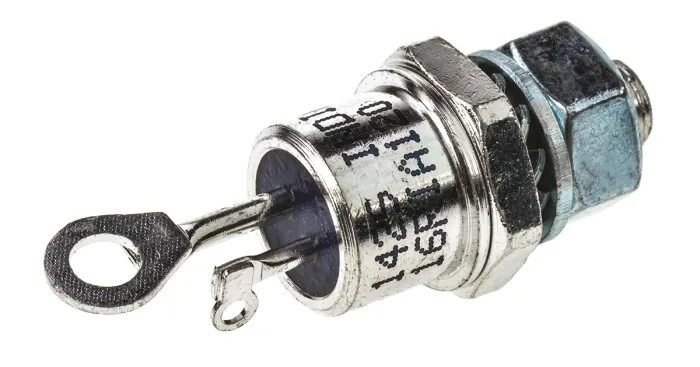

Vishay Thyristor SCR TO-48 Package 1200 V, 16 A, 60 mA Gate Trigger Current VS-16RIA120
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-16RIA120 |
| Mount Type | Screw |
| Series | VS-16RIA |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-48 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Rated Average On-State Current Irms | 16A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 360A |
| Maximum Gate Trigger Current Igt | 60mA |
| Maximum Holding Current Ih | 130mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.75V |
| Repetitive Peak Off-State Current | 10mA |
Key Features
- Phase control device with a TO-48 package designed for screw mounting.
- Repetitive peak reverse voltage rating of 1200 volts for high voltage applications.
- Surge current rating up to 360 amperes ensuring handling of transient loads.
- Maximum gate trigger current of 60 milliamperes for reliable triggering.
- Operates efficiently between temperatures of -65°C to 125°C.
- Features a maximum holding current of 130 milliamperes for stable operation.
- Two pin configuration suitable for compact circuit designs.
- Peak on-state voltage of 1.75 volts to minimize power loss during conduction.
Product Description
Vishay VS-16RIA120 Thyristor SCR is a high-quality solid-state semiconductor device designed to act as a bistable switch in industrial and electronic control circuits. It features a TO-48 package with screw mount, making installation secure and reliable.
Rated with a repetitive peak reverse voltage (VDRM) of 1200 volts and a surge current capability of 360 amperes, this device can handle demanding power conditions with ease. The SCR’s gate requires a maximum trigger current of 60 mA, ensuring precise and controlled switching.
Operating temperature range from -65°C to 125°C guarantees performance in harsh operating environments. Its maximum holding current of 130 mA ensures steady conduction post-triggering. The device maintains a low peak on-state voltage of 1.75 volts, reducing energy loss during active conduction.
The SCR is widely used in industrial applications such as battery chargers, welding machines, plating equipment, regulated power supplies, and circuits that require temperature or speed control. Its efficient switching capabilities make it suitable for both AC and DC load management.
Phase control thyristor device encapsulated in a TO-48 package. Rated for 16 A average on-state current with peak surge tolerance of 360 A. Gate trigger characteristics optimized for reliable activation at 60 mA and 2 V maximum.
Temperature operation range from -65°C minimum to 125°C maximum. Screw mounting design for easy integration in electronic assemblies. Two-pin configuration supports compact and effective circuit design. Low on-state voltage drop minimizes power dissipation during conduction.
Rugged construction for industrial and commercial electronic control applications.
This Vishay Thyristor is a trusted component for applications in industrial automation, power control, HVAC equipment, and manufacturing processes where reliable switching and power regulation are critical.
Explore additional Vishay electronic components and related semiconductor devices in the EnvMart catalog for your industrial and technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-16RIA120 thyristor has a maximum repetitive peak reverse voltage rating of 1200 volts.
This model is rated for an average on-state current of 16 A.
The surge current rating of the VS-16RIA120 is 360 amperes, allowing it to handle transient loads effectively.
The maximum gate trigger current for this thyristor is 60 milliamperes.
This thyristor operates efficiently within a temperature range of -65°C to 125°C.
The peak on-state voltage for the VS-16RIA120 is 1.75 volts, which helps minimize power loss during conduction.
The thyristor features a screw mounting design, ensuring secure installation in electronic assemblies.
This model has a two-pin configuration suitable for compact circuit designs.
The maximum holding current for this thyristor is 130 milliamperes, ensuring stable operation post-triggering.
This thyristor is widely used in applications such as battery chargers, welding machines, and regulated power supplies.
The maximum gate trigger voltage for the VS-16RIA120 is 2 volts.
The country of origin for the Vishay VS-16RIA120 thyristor is India.
