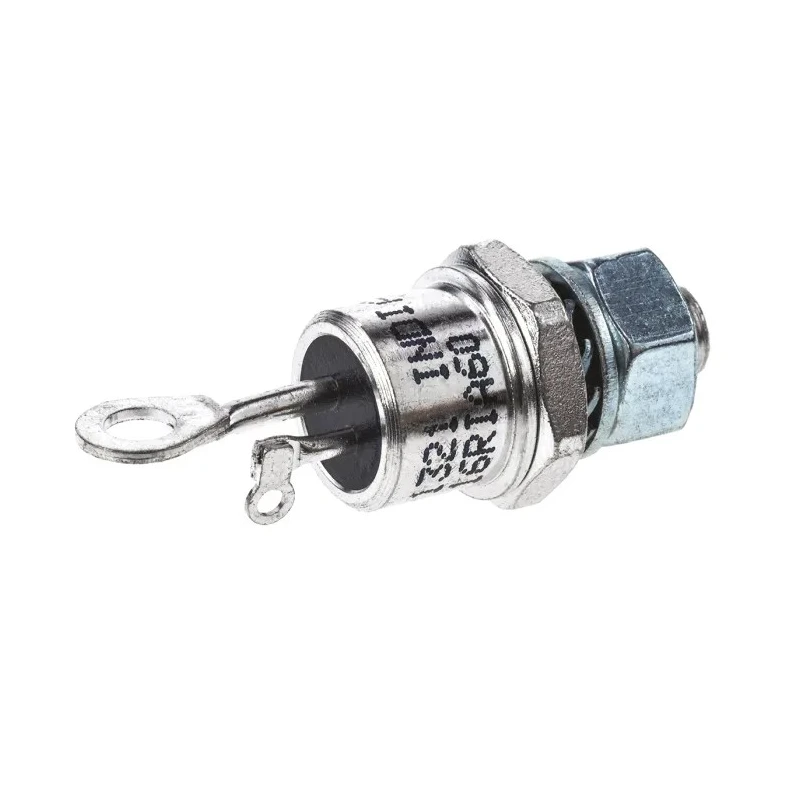

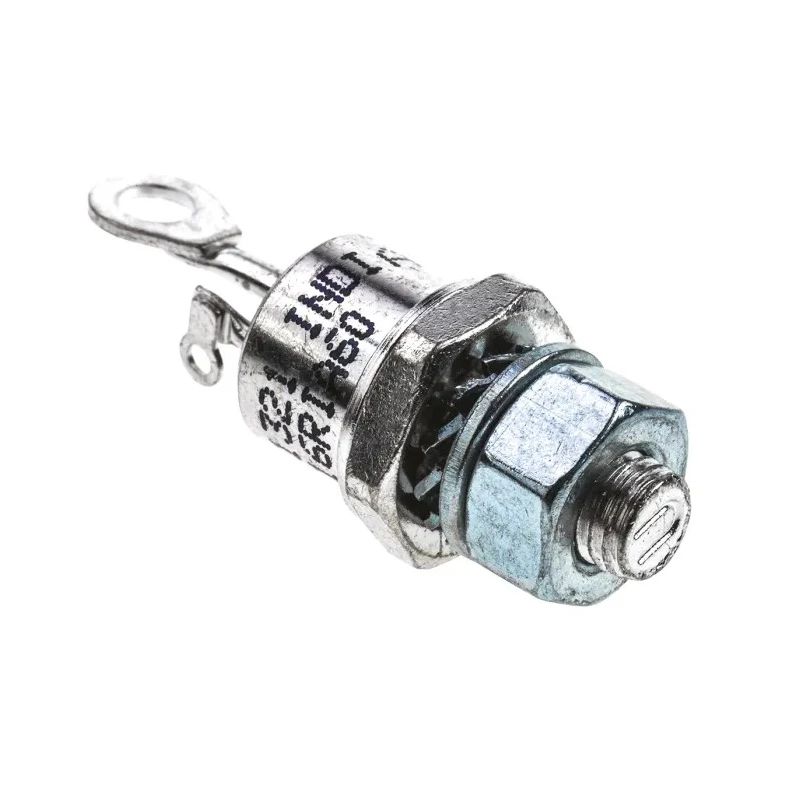

Vishay Thyristor 600 V 360 A Rated Average On-State Current 16 A Maximum Gate Trigger Current 60 mA 1.75 V TO-48 16RIA60
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30.2mm |
| Model | 16RIA60 |
| Width | 15.5mm |
| Mount Type | Screw |
| Series | VS-16RIA |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-48 |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated Average On-State Current Irms | 16A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 360A |
| Maximum Gate Trigger Current Igt | 60mA |
| Maximum Holding Current Ih | 130mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.75V |
| Repetitive Peak Off-State Current | 10mA |
Key Features
- The device has a rated average on-state current of 16 A for robust power handling.
- It features a maximum gate trigger current of 60 mA for reliable triggering.
- Maximum gate trigger voltage is specified at 2 V, ensuring precise control.
- The thyristor has a peak on-state voltage of 1.75 V and a surge current capacity of 360 A.
- Mounting is by screw with a compact TO-48 encapsulation measuring 30.2 mm height and 15.5 mm width.
- Its maximum operating temperature is 125°C, suitable for industrial conditions.
- Maximum holding current is 130 mA, with repetitive peak reverse voltage of 600 V.
- The package is RoHS compliant, supporting regulatory standards.
Product Description
Vishay 16RIA60 Thyristor is a high-performance solid-state semiconductor device rated at 600 V and 360 A. Encapsulated within a TO-48 2-Pin package, it is designed for use in phase control applications such as battery chargers, welders, plating equipment, regulated power supplies, and speed control circuits. Its robust construction supports demanding industrial environments requiring reliable and efficient switching.
The device features a rated average on-state current (Irms) of 16 A and a surge current rating of 360 A, suited for high power and transient conditions. The maximum gate trigger current (Igt) is 60 mA with a gate trigger voltage of 2 V, enabling precise and energy-efficient control. The thyristor's peak on-state voltage is 1.75 V, contributing to low conduction losses.
Dimensionally, the TO-48 package measures 30.2 mm in height and 15.5 mm in width, with a pin count of 2, facilitating easy mounting through screw installation. Operating up to a temperature of 125°C, this device ensures stable performance under industrial thermal conditions. The repetitive peak reverse voltage (VDRM) rating of 600 V and maximum holding current of 130 mA provide reliable blocking and holding characteristics respectively.
The 16RIA60 thyristor is RoHS compliant, addressing environmental and safety standards. Its repetitive peak off-state current is limited to 10 mA, enhancing operational stability and minimizing leakage. This device is ideal for applications requiring efficient switching and control in power electronics circuits.
The Vishay 16RIA60 Thyristor is engineered for industrial, electronic components, power supply regulation, and control equipment. Common applications include battery chargings, welding machinery, and temperature or speed control circuits.
Its TO-48 screw mounting allows secure installation in compact PCB footprints. The device's electrical ratings support high current and voltage loads, suitable for robust power electronics. RoHS compliance ensures the product meets hazardous substance standards for environmental safety.
Explore Vishay’s extensive range of semiconductor devices on EnvMart for high-quality and reliable power electronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this thyristor is 16 A, suitable for robust power handling in various applications.
The maximum gate trigger current for the Vishay 16RIA60 is 60 mA, allowing for reliable triggering of the device.
The peak on-state voltage of this model is 1.75 V, contributing to low conduction losses during operation.
The surge current rating for the Vishay 16RIA60 is 360 A, making it suitable for high power and transient conditions.
The TO-48 package measures 30.2 mm in height and 15.5 mm in width, facilitating easy mounting in compact spaces.
The maximum operating temperature for this thyristor is 125°C, ensuring stable performance in industrial environments.
The repetitive peak reverse voltage rating for this model is 600 V, providing reliable blocking characteristics.
This thyristor is mounted using screws, which allows for secure installation in various applications.
The maximum holding current for the Vishay 16RIA60 is 130 mA, ensuring effective holding characteristics during operation.
The maximum gate trigger voltage for this model is 2 V, enabling precise control during operation.
This device is RoHS compliant, addressing environmental and safety standards for hazardous substances.
The Vishay 16RIA60 is suitable for applications such as battery chargers, welders, plating equipment, and speed control circuits.
