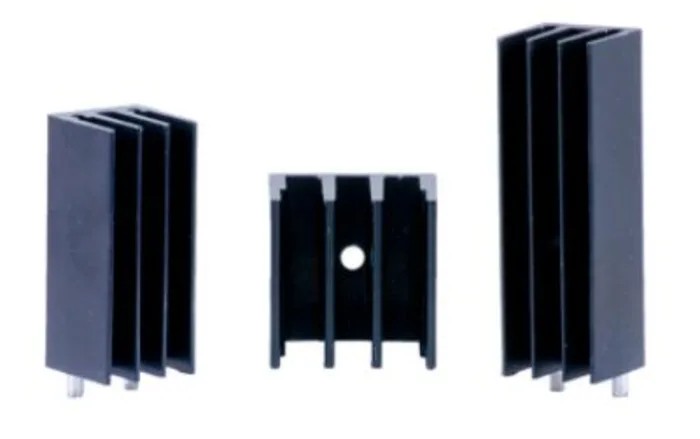

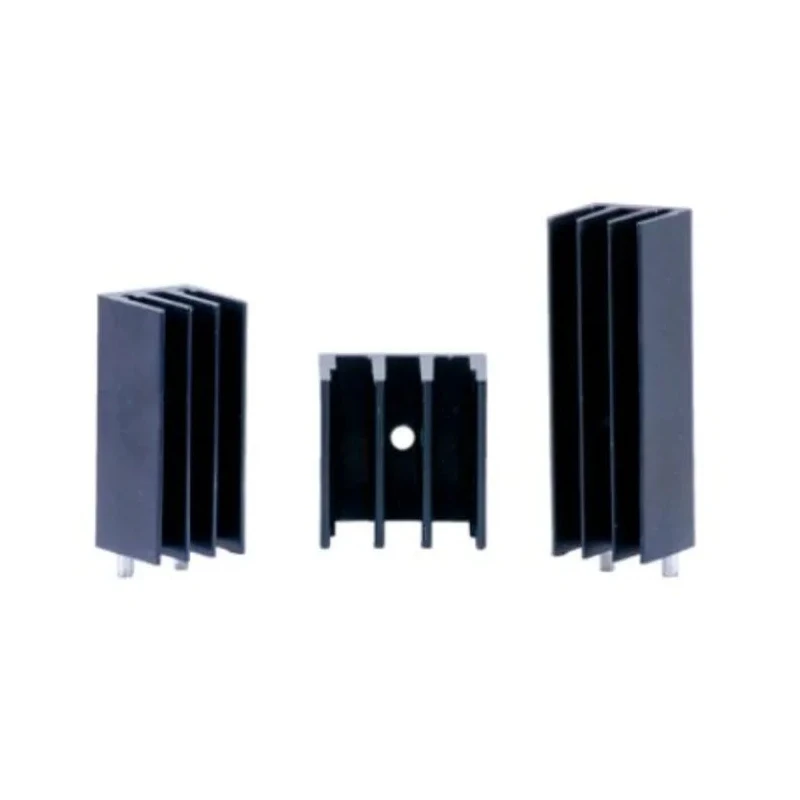

Arcol Ohmite Heatsink for TO-220 and TO-247 Devices and Bridge Rectifiers Anodised Finish 14°C/W Thermal E2A-T247-38E
Specifications
| Country of Origin | China |
|---|---|
| Brand | Arcol Ohmite |
| Height | 38.1mm |
| Length | 16.28mm |
| Model | E2A-T247-38E |
| Finish | Anodised |
| Width | 16.3mm |
| Series | EX |
| SURFACE AREA | 5129mm² |
| Thermal Resistance | 14°C/W |
| For Use With | TO-220 and TO-247 Devices and Bridge Rectifiers |
| Fastening | PCB Through Hole |
| Compatible Package Type | TO-220, TO-247 |
Key Features
- Suitable for mounting TO-220 and TO-247 devices and bridge rectifiers.
- Anodised finish enhances durability and corrosion resistance.
- Thermal resistance rating is 14°C/W for effective heat dissipation.
- Features PCB through-hole fastening for secure installation.
- Compact dimensions of 38.1 mm height, 16.28 mm length, and 16.3 mm width.
- Compatible with EX series and multiple package types including TO-220 and TO-247.
- Surface area of 5129 mm² supports efficient heat conduction.
- Manufactured to meet application standards, originating from China.
Product Description
Arcol Ohmite E2A-T247-38E heatsink is engineered for thermal management applications involving TO-220 and TO-247 semiconductor devices as well as bridge rectifiers. With a thermal resistance of 14°C/W, this anodised heatsink ensures efficient heat dissipation, protecting sensitive electronic components from overheating. Its compact form factor with dimensions 38.1 mm in height, 16.28 mm in length, and 16.3 mm in width makes it suitable for tight circuit board layouts.
The heatsink employs a PCB through-hole fastening method, providing secure mounting on printed circuit boards. The anodised surface finish provides enhanced protection against environmental factors and extends operational durability. Featuring a surface area of 5129 mm², it effectively transfers heat away from semiconductor devices, maintaining performance stability and prolonging component life.
This product is part of Arcol Ohmite's EX series, compatible with multiple package types including TO-220 and TO-247, which are commonly used in power electronics and industrial applications. It is ideal in industries such as electrical, automation, HVAC, and power supply systems requiring reliable thermal control.
Suitable for TO-220 and TO-247 devices and Bridge Rectifiers. Anodised finish for superior corrosion resistance. 14°C/W thermal resistance for effective heat dissipation. PCB through-hole fastening for secure attachment.
Compact size adapts to various application needs. Large surface area supports efficient heat transfer. Part of EX series by Arcol Ohmite. Manufactured in China ensuring consistent quality.
This heatsink is essential for maintaining device temperature within safe operating limits in power electronics and related industrial systems. Explore a broad range of Arcol Ohmite heatsinks and components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The thermal resistance rating of this heatsink is 14°C/W, ensuring effective heat dissipation for the mounted devices.
This heatsink has dimensions of 38.1 mm in height, 16.28 mm in length, and 16.3 mm in width.
It is compatible with TO-220 and TO-247 devices as well as bridge rectifiers.
The heatsink employs a PCB through-hole fastening method for secure attachment to printed circuit boards.
The surface area of this heatsink is 5129 mm², which supports efficient heat conduction.
It features an anodised finish that enhances durability and provides corrosion resistance.
Yes, this heatsink is part of the EX series by Arcol Ohmite.
This heatsink is manufactured in China, ensuring consistent quality.
It is suitable for applications in power electronics and industrial systems requiring reliable thermal control.
The compact size of 38.1 mm height, 16.28 mm length, and 16.3 mm width makes it adaptable for tight circuit board layouts.
It supports multiple package types, specifically TO-220 and TO-247.
By effectively transferring heat away from semiconductor devices, it helps maintain performance stability and prolongs component life.
