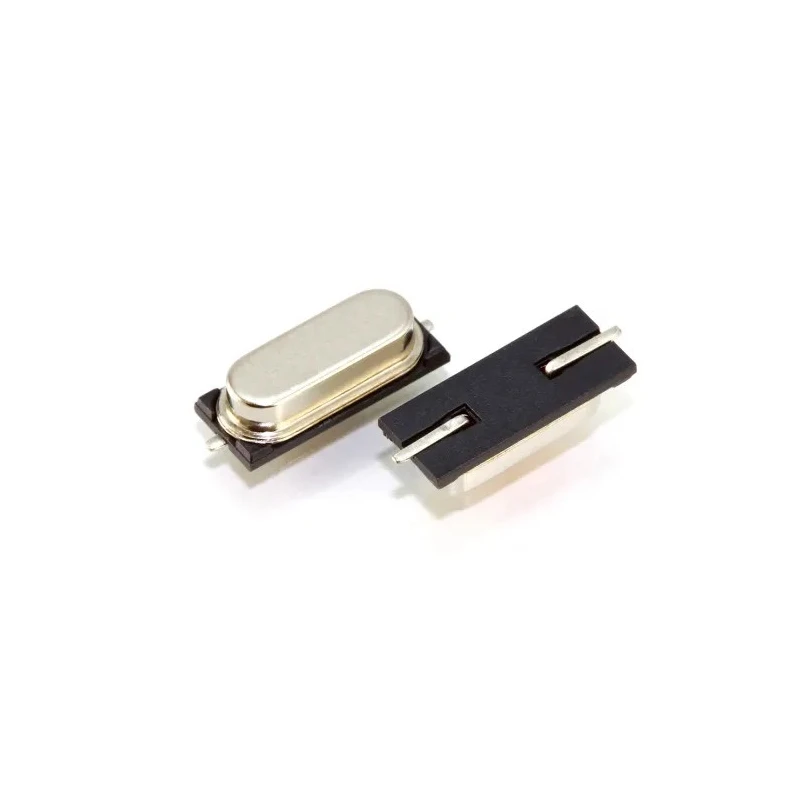

Ecliptek 24 MHz Surface Mount Crystal Unit 30 ppm Frequency Tolerance Tape & Reel E1SEA18-24.000M TR

Ecliptek E1SEA18-24.000M TR is a 24 MHz surface mount crystal unit designed for high precision applications requiring stable frequency output. It features a frequency tolerance of 30 ppm and an overall frequency stability of ±50 ppm, ensuring reliable operation in diverse industrial and electronic environments.

This crystal unit comes in a Tape & Reel packaging type, facilitating automated pick-and-place assembly processes for electronics manufacturing. Its physical dimensions are compact, measuring 13.3 mm in length, 4.85 mm in width, and 3.2 mm in height, with a standard HC49/UPO package form factor.

The device has a load capacitance of 18 pF and a series resistance of 40 Ω, designed to optimize the oscillator circuit performance. It operates over a temperature range from -20°C to 70°C, suitable for typical industrial environments. The product adheres to RoHS directives, reflecting compliance with environmental and safety regulations.

These characteristics make this crystal unit ideal for applications in consumer electronics, industrial control systems, communication devices, and other precision instrumentation requiring stable frequency references.

Manufactured in China, the E1SEA18-24.000M TR model offers reliable performance for engineering and production needs. Set your PCB designs with this high-quality component to ensure accurate timing and frequency stability in your projects.

This crystal unit operates at a standard frequency of 24 MHz. Frequency tolerance of 30 ppm supports precise frequency control. Surface mount Tape & Reel package ensures compatibility with automated assembly. Dimensions: 13.3 mm length, 4.85 mm width, and 3.2 mm height.

Load capacitance rated at 18 pF for optimized circuit integration. Operating temperature range of -20°C to 70°C supports industrial environments. Series resistance of 40 Ω maintains signal integrity. Compliant with RoHS for environmental safety standards.

Compact HC49/UPO package form factor for versatility. Manufactured in China under quality control standards. Explore more Crystal Units and oscillator components for your PCB and electronic system designs at EnvMart.
