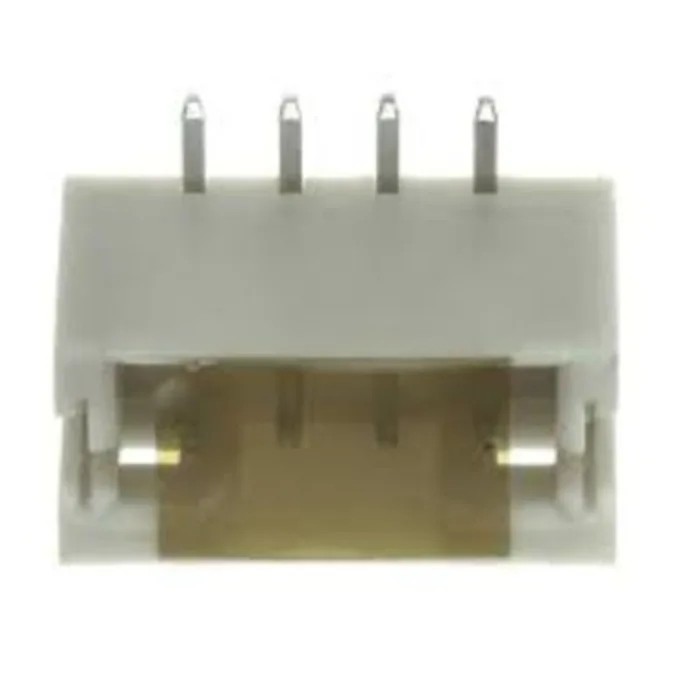

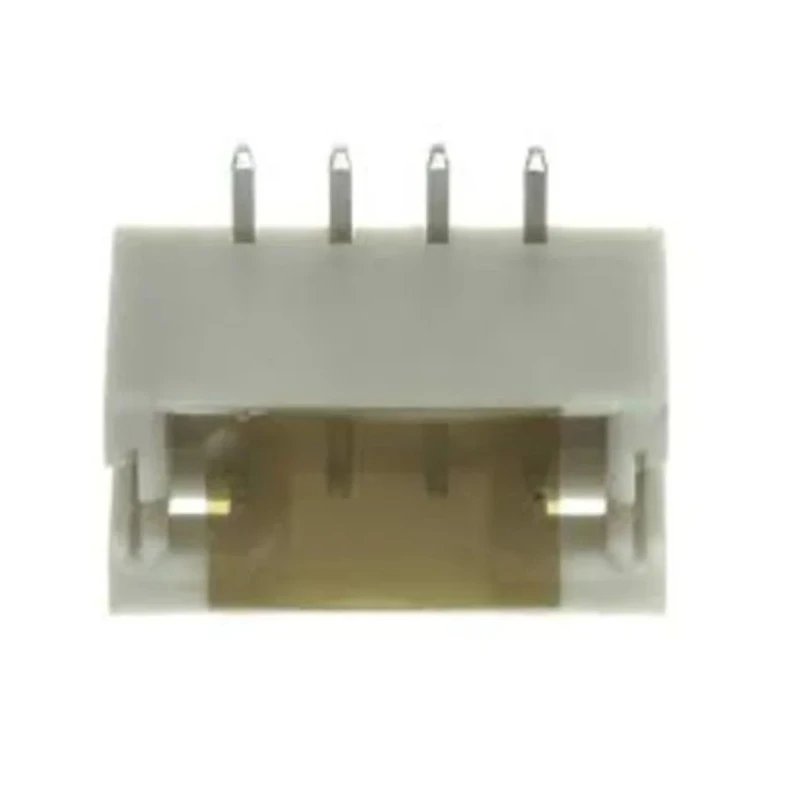

TE Connectivity HPI Series Vertical Surface PCB Header 4 Contact, 2 mm Pitch, 1 Row, Shrouded 1775470-4

TE Connectivity 1775470-4 HPI Series Vertical Surface PCB Header is a robust connector designed for high performance wire-to-board applications requiring precision and durability. This PCB header features 4 contacts arranged in a single row with a 2 mm pitch, enabling compact and reliable interconnect solutions.

The header is constructed with a polyamide 9T fiberglass housing that provides excellent mechanical strength and electrical insulation, suitable for industrial and commercial electronics. Brass contacts plated with tin ensure effective electrical conduction and corrosion resistance.

Rated for 3A current and 250V voltage, this header supports a wide range of electronic circuits and systems. It is designed for surface mount technology, simplifying automated PCB assembly processes with a 2 mm tail pin length for secure soldering.

Its vertical orientation and shrouded construction help maintain proper alignment and prevent incorrect mating in complex electronic assemblies. The component operates efficiently across a temperature range of -25°C to 85°C, making it well suited for varying environmental conditions.

The 1775470-4 complies with UL 94 V-0 flammability standards, ensuring greater fire resistance and safety in electronic equipment. This PCB Header series is HPI, designed for wire-to-board connectivity. The header has a 3A current rating and operates at a voltage of 250V.

Contacts are brass with tin plating, ensuring reliable conductivity. Polyamide 9T fiberglass housing enhances durability and electrical insulation. Operating temperature ranges from -25°C to 85°C for versatile applications.

The header features a 2 mm tail pin length for secure PCB mounting. Designed for surface mount termination with a male contact gender. The shrouded, 1-row vertical orientation prevents misalignment during mating. Complies with UL 94 V-0 flammability standard for safety.

This product is ideal for industrial, electronic manufacturing, telecommunications, and power electronics applications requiring reliable PCB connections. Explore the full TE Connectivity portfolio on EnvMart for advanced electronic components and connectors.
