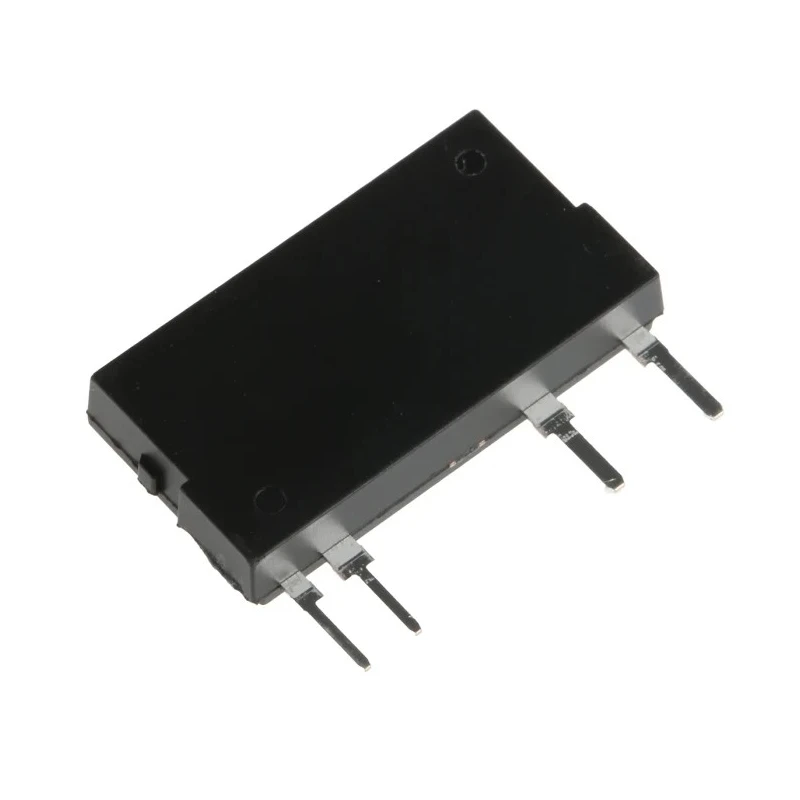

Panasonic AQZ Series Solid State Relay PCB Mount 3A Load 60V Load 5V DC Control AQZ202
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 12.5mm |
| Length | 21mm |
| Model | AQZ202 |
| IP Rating | IP20 |
| Width | 3.5mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | AQZ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | SIL-4 |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Maximum Load Current | 3A |
| Standards/Approvals | UL |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | 0V |
| Minimum Control Voltage | 1.5V dc |
| Maximum Control Voltage | 5V dc |
| Off State Leakage Current | 10μA |
| On State Resistance | 0.18Ω |
Key Features
- PCB mount type designed for compact circuit integration.
- Maximum load current of 3 amperes with 60 volts load rating.
- Low on state resistance of 0.18 ohms for efficient conduction.
- Wide operating temperature range from -40°C to 85°C ensures reliability.
- Single-pole single-throw (SPST) contact configuration with MOSFET output.
- Offers excellent board space saving and low power consumption.
- Isolation voltage between coil and contacts up to 2.5 kV.
- Environmentally friendly with resistance to vibration and abrasion.
Product Description
Panasonic AQZ202 Solid State Relay is a high-capacity, PCB mount photoMOS relay designed for both DC and AC load switching applications. It supports a maximum load current of 3 amperes and maximum load voltage of 60 volts ensuring robust performance for industrial use.
This relay features palladium-nickel contacts that provide high electrical endurance, combined with a MOSFET output stage housed in a SIL-4 package. It operates efficiently with a control voltage range from 1.5V DC to 5V DC, requiring low power and offering simplified PCB layout.
The device withstands a wide service temperature between -40°C and 85°C, making it suitable for harsh industrial environments. It also offers resistance to vibration and abrasion and isolation voltage of 2.5 kV between coil and contacts for enhanced safety.
Key features include a compact size with 21 mm length, 12.5 mm height, and 3.5 mm width, low off-state leakage current of 10 μA, and a minimal capacitance of 1.5 pF supporting fast switching.
PCB mount type solid state relay with 3A load current and 60V load voltage. Low on state resistance and MOSFET output ensure efficiency and durability. Environmentally friendly with extended operating temperature range. High isolation voltage and resistance to mechanical stresses.
Suitable for automotive, industrial machinery, telecommunication, and control systems.
Panasonic AQZ202 is UL and CSA certified ensuring compliance with industrial safety standards. This relay is ideal for controlling low-level analogue signals without the need for additional power supply or counter electromotive protection diode.
Explore more Panasonic industrial electrical components and Solid State Relays in EnvMart's electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 3 amperes.
The load voltage rating for this model is 60 volts.
It operates with a control voltage range from 1.5V DC to 5V DC.
This relay features a MOSFET output type.
The dimensions of this model are 21 mm in length, 12.5 mm in height, and 3.5 mm in width.
The isolation voltage between the coil and contacts is up to 2.5 kV.
It has an operating temperature range from -40°C to 85°C.
The contact configuration is single-pole single-throw (SPST).
The off-state leakage current is 10 μA.
This model is designed for PCB mounting.
The relay is UL certified, ensuring compliance with industrial safety standards.
The on-state resistance is 0.18 ohms.
