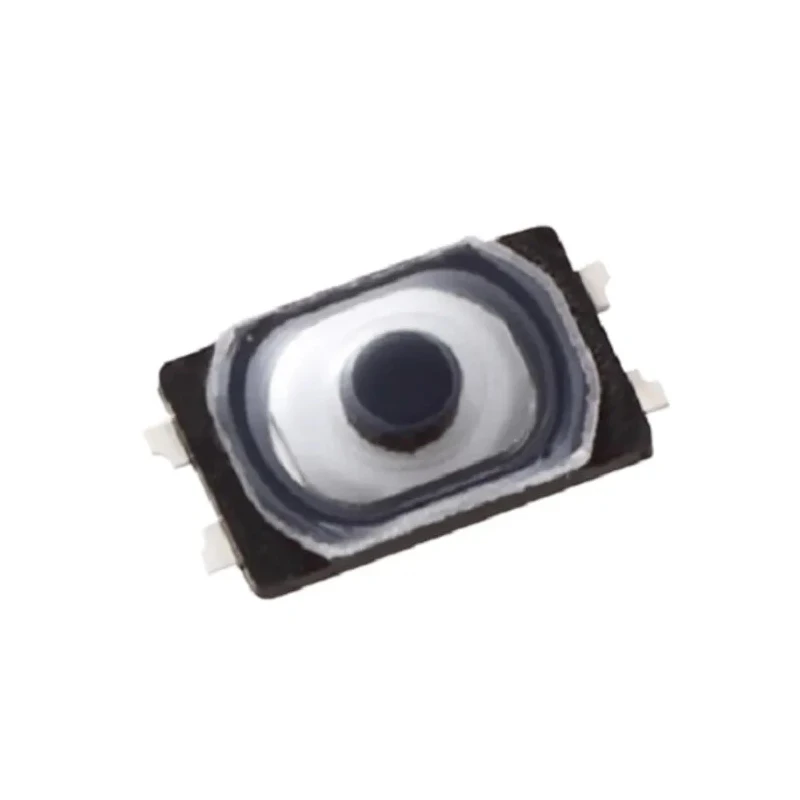

Panasonic IP67 Black Tactile Switch Push Plate 0.7 mm SPST 20mA 15 V dc Surface
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 0.5mm |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Surface |
| Series | EVPB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Terminal type | Straight |
| Switch Operation | Push-On |
| Actuator Colour | Black |
| Actuator Length | 0.7mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 1N |
Key Features
- The IP67 rated switch ensures protection against dust and water intrusion.
- Push plate actuator style with black colour provides high operability.
- Maximum operating temperature up to 85°C suits robust applications.
- Designed for surface mounting with a compact height of 0.5 mm.
- Switch contact current rating of 20 mA at 15 V dc for reliable operation.
- Mechanical operating force is 1 N for smooth actuation.
- Non-illuminated switch suitable for various electronic device interfaces.
- Widely used in smartphones, wearable devices, and similar compact electronics.
Product Description
Panasonic EVPBB1AAE000 IP67 Black Tactile Switch Push Plate is a surface-mount tactile switch featuring a 0.7 mm actuator length and SPST contact configuration. Designed to operate with a contact DC voltage of 15 V and a contact current of 20 mA, this switch combines high reliability with excellent durability in compact electronic applications.
The switch is rated IP67, providing full protection against dust ingress and immersion in water. Its black push plate actuator ensures ease of operation with a mechanical operating force of 1 N and a height of just 0.5 mm, ideal for slim profile devices.
With an operating temperature range of -40°C to +85°C, this tactile switch is suited for harsh environments and is commonly used in smartphones, wearable technology, and other consumer electronic products requiring reliable switch operation and a compact form factor.
The surface mount design facilitates automated placement, improving production efficiency. The switch is non-illuminated and features straight terminals for robust connectivity. It conforms to the EVPB series by Panasonic, ensuring consistent quality and performance.
The IP67 rating supplies excellent ingress protection against dust and water. Compact size and low profile enhance device design flexibility. Reliable push plate actuator supports diverse consumer electronic interfaces. Wide operating temperature range caters to demanding industrial and commercial conditions.
Supports a 20 mA max contact current at 15 V DC for safe and efficient operation. Surface mount package suitable for automated PCB assembly processes. Black actuator color maintains aesthetic uniformity in device design.
Applications include smartphones, wearables, and other portable electronic devices requiring durable tactile feedback. Explore a comprehensive selection of Tactile Switches at EnvMart for versatile electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C, making it suitable for robust applications in various environments.
This tactile switch has an IP67 rating, providing full protection against dust ingress and immersion in water.
The mechanical operating force for this switch is 1 N, allowing for smooth actuation.
The switch has a contact current rating of 20 mA at 15 V DC, ensuring reliable operation.
This model is designed for surface mounting, facilitating easy installation in compact electronic devices.
The actuator length of the push plate is 0.7 mm, contributing to its compact design.
The switch features an SPST (Single Pole Single Throw) contact configuration.
The height of this model is 0.5 mm, making it ideal for slim profile devices.
The actuator of this tactile switch is black, which helps maintain aesthetic uniformity in device design.
With an operating temperature range of -40°C to +85°C, this switch is suited for harsh environments and demanding applications.
This model features straight terminals, ensuring robust connectivity during installation.
This tactile switch is widely used in smartphones, wearable devices, and other compact electronics requiring reliable switch operation.
