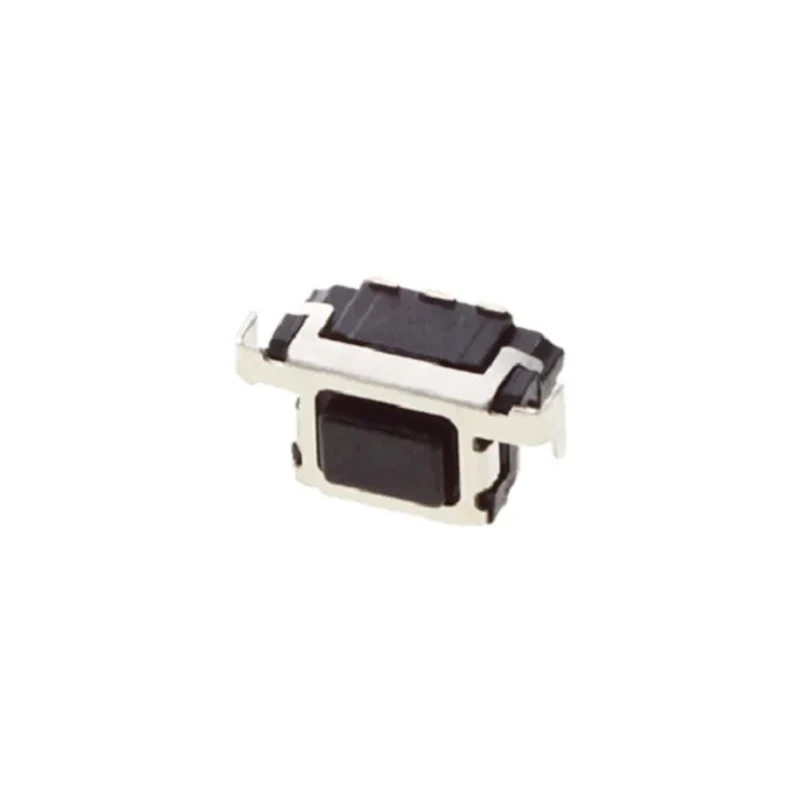

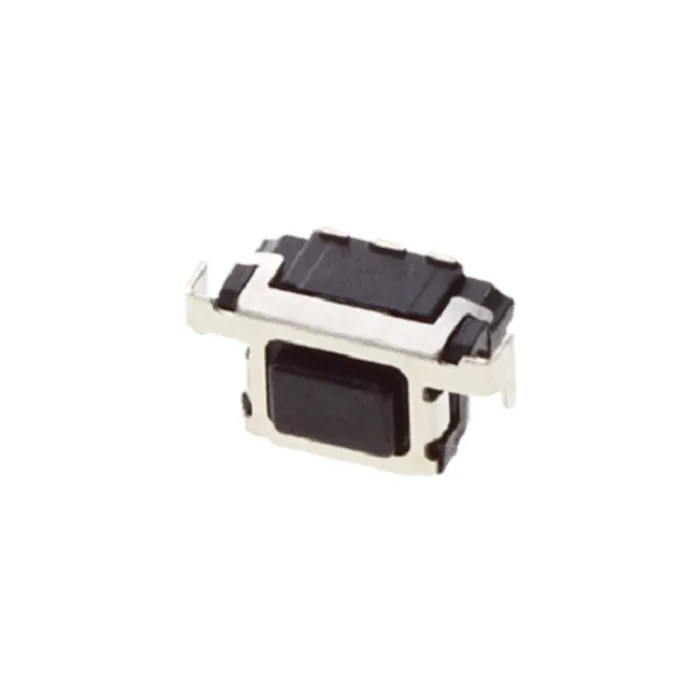

Panasonic Black Grey Tactile Switch Push Plate 2.2mm SPST 20mA 15V DC Edge EVPAEGE2A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.6mm |
| Model | EVPAEGE2A |
| Mount Type | Edge |
| Series | EVPAE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Terminal type | Solder |
| Switch Operation | Push-On |
| Actuator Colour | Black, Grey |
| Actuator Length | 2.2mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 1.6N |
Key Features
- The 2.2 mm actuator length ensures precise push-on switch operation.
- Rated for 20mA contact current at 15V DC, suitable for low voltage applications.
- Edge mounting type improves soldering strength and operational durability.
- Compact height of 2.6 mm and operating force of 1.6N ensure efficient tactile feedback.
- Manufactured in Japan with robust design for extended operational life and ESD resistance.
- Push plate actuator style enhances user tactile response in portable electronic devices.
- Suitable for portable electronics including mobile phones, digital cameras, camcorders, and audio players.
Product Description
Panasonic EVPAEGE2A tactile switch push plate features a black and grey push plate actuator with a precise 2.2 mm length, delivering reliable SPST contact configuration rated for 20mA at 15V DC. This compact edge mount switch, measuring 2.6 mm in height and requiring an operating force of 1.6N, provides excellent soldering strength and durability in the operating direction.
Designed and manufactured in Japan, this tactile switch offers an extended operational life and includes electrostatic discharge (ESD) protection, making it ideal for use in various portable electronic equipment such as mobile phones, digital still cameras, camcorders, and portable audio players.
This push-on type switch operates smoothly with a snap action mechanism and is specifically engineered for low voltage resistive load applications ranging from 10 μA 2 V DC to 20 mA 15 V DC. The edge mount style installation simplifies automated machine insertion processes, enhancing production efficiency.
The tactile switch is part of the Panasonic EVPAE series, with no specific industry standards or approvals apart from compliance with RoHS. Its compact dimensions and robust build make it suitable for electronics manufacturing, electrical automation, and consumer electronics development.
The 2.2 mm actuator length is optimal for tactile feedback. SPST contact configuration ensures simple on/off switching. Edge mount design enhances soldering reliability. Black and grey actuator colors provide clear user interface feedback.
Durable build suitable for long-life portable device applications. Manufactured in Japan ensuring high quality standards. Operating temperature up to 85°C supports various environmental conditions. Explore more high-quality Tactile Switches and components in the Electronics & Electricals category at EnvMart to meet your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The actuator length of this tactile switch is 2.2 mm, which ensures precise push-on switch operation.
The maximum operating temperature for this model is 85°C, allowing it to function in various environmental conditions.
This tactile switch features an SPST (Single Pole Single Throw) contact configuration, providing simple on/off switching.
The rated contact current for this switch is 20mA, making it suitable for low voltage applications.
This switch uses an edge mounting type, which enhances soldering strength and operational durability.
The operating force required for this model is 1.6N, which ensures efficient tactile feedback during operation.
The actuator colors for this switch are black and grey, providing clear user interface feedback.
The terminal type of this tactile switch is solder, facilitating easy connection in electronic applications.
The switch operation type for this model is push-on, featuring a snap action mechanism.
This tactile switch is suitable for portable electronics, including mobile phones, digital cameras, camcorders, and audio players.
This tactile switch belongs to the Panasonic EVPAE series, designed for various electronic applications.
Yes, this model includes electrostatic discharge (ESD) protection, enhancing its reliability in electronic devices.
