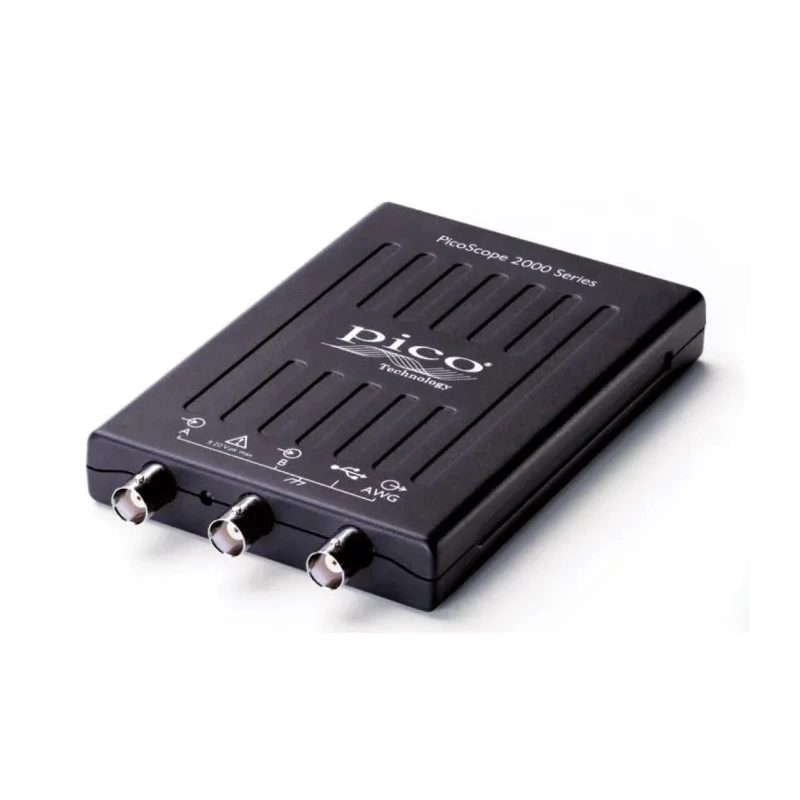

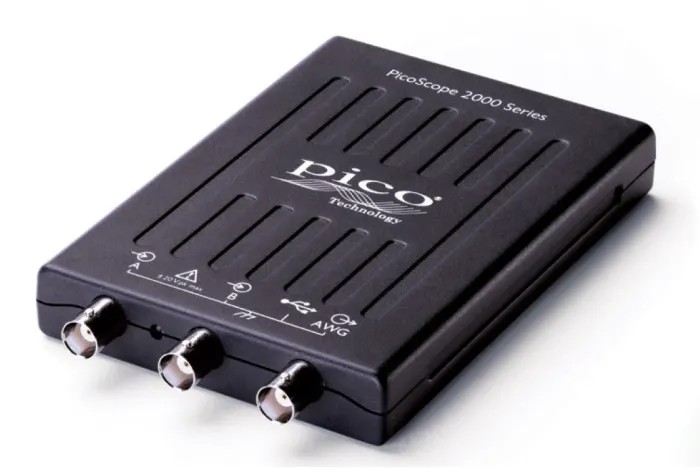

Pico Technology PC Based Oscilloscope, 25 MHz Bandwidth, 2-Channel, USB Powered PICOSCOPE 2205A
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Pico Technology |
| Height | 19mm |
| Length | 142mm |
| Model | PICOSCOPE 2205A |
| Width | 92mm |
| Bandwidth | 25MHz |
| Sampling rate | s |
| Series | PicoScope 2000 |
| Interfaces | USB connected and powered |
| Number Of Channels | 2 |
| Vertical Resolution | 8 bit |
| Rise Time | 14ns |
| Interface Type | CAN, IIC, LIN, RS232, SPI, UART, USB |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 10mV/div |
| Minimum Time Base | 5ns/div |
| Maximum Vertical Sensitivity | 4V/div |
| Maximum Time Base | 5000s/div |
| EN 61010-1 | 2010 |
| EN61326-1 | 2006 |
| RS PRO 2205A, 20 MHz PC Based Oscilloscope 2-ChannelRS Stock No. | 163-2719Brand: RS PRO |
Key Features
- The oscilloscope features 25 MHz bandwidth suitable for a variety of electronic measurements.
- It includes 2 input channels enabling simultaneous signal observations.
- Powered and connected via USB, eliminating the need for an external power supply.
- Equipped with PicoScope 6 software providing advanced analysis including serial decoding and mask limit testing.
- Compact size with dimensions of 142mm length, 92mm width, and 19mm height, facilitating bench use without occupying much space.
- Supports multiple interface types including CAN, IIC, LIN, RS232, SPI, UART, and USB for versatile connectivity.
- Sampling rate of 200 MS/s enables capturing fast transient signals accurately.
- Includes two 60 MHz probes, USB cable, quick start guide, software, and reference CD in the package.
Product Description
Pico Technology PICOSCOPE 2205A is a PC Based Oscilloscope from the PicoScope 2000 series with a bandwidth of 25 MHz and 2 channels. This USB powered oscilloscope is compact and lightweight, providing benchtop performance with portability. It occupies minimal space on the bench and is ideal for close proximity to the circuit under test.

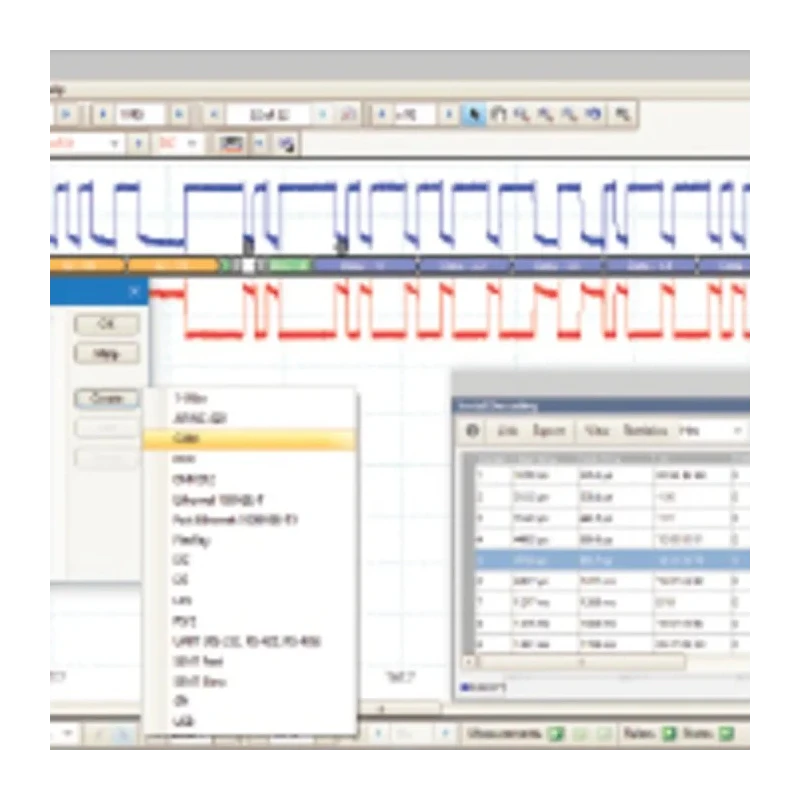

The device includes PicoScope 6 software which enables advanced features such as serial bus decoding, mask limit testing, spectrum analysis, and waveform generation. Its 200 MS/s real-time sampling rate allows precise signal capture. The instrument supports multiple communication interfaces including CAN, IIC, LIN, RS232, SPI, UART, and USB for flexible connectivity.
The oscilloscope features 8-bit vertical resolution, minimum time base of 5 ns/div, maximum vertical sensitivity of 4 V/div, rise time of 14 ns, maximum time base of 5000 s/div, and minimum vertical sensitivity of 10 mV/div. It is USB connected and powered, eliminating the need for bulky external power supplies.
Package contents include two 60 MHz probes, a USB cable, quick start guide, software, and reference CD. This PC Based oscilloscope is widely used in design, testing, education, servicing, monitoring, fault finding, and repair work, offering a cost-effective, portable solution with benchtop capabilities.
This product is manufactured in the United Kingdom and complies with certification standards EN 61010-1:2010 and EN61326-1:2006. The oscilloscope offers benchtop performance in a pocket-sized device for convenience. USB powered and connected for ease of use and portability.
Advanced software features support comprehensive signal analysis and testing. High-speed sampling rate captures transient signals accurately. Compact dimensions make it suitable for crowded bench environments. Supports multiple serial communication interfaces for diverse applications.
Ideal for industrial, educational, laboratory, and repair use cases. Includes all necessary accessories to begin immediate use. Reliable performance backed by recognized international safety and EMC standards. Explore the full range of Oscilloscopes in the Industrial Machines & Instruments category on EnvMart for professional measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PicoScope 2205A features a bandwidth of 25 MHz, suitable for a variety of electronic measurements.
This model has 2 input channels, enabling simultaneous signal observations.
The oscilloscope has a maximum sampling rate of 200 MS/s, allowing for accurate capturing of fast transient signals.
It supports multiple interface types including CAN, IIC, LIN, RS232, SPI, UART, and USB for versatile connectivity.
The oscilloscope has dimensions of 142 mm in length, 92 mm in width, and 19 mm in height, making it compact for bench use.
The vertical resolution of the PicoScope 2205A is 8 bits.
The minimum vertical sensitivity is 10 mV/div, while the maximum is 4 V/div.
The rise time of this oscilloscope is 14 ns.
The package includes two 60 MHz probes, a USB cable, a quick start guide, software, and a reference CD.
It comes equipped with PicoScope 6 software, which provides advanced analysis features including serial decoding and mask limit testing.
The device complies with certification standards EN 61010-1:2010 and EN61326-1:2006.
This oscilloscope is manufactured in the United Kingdom.
