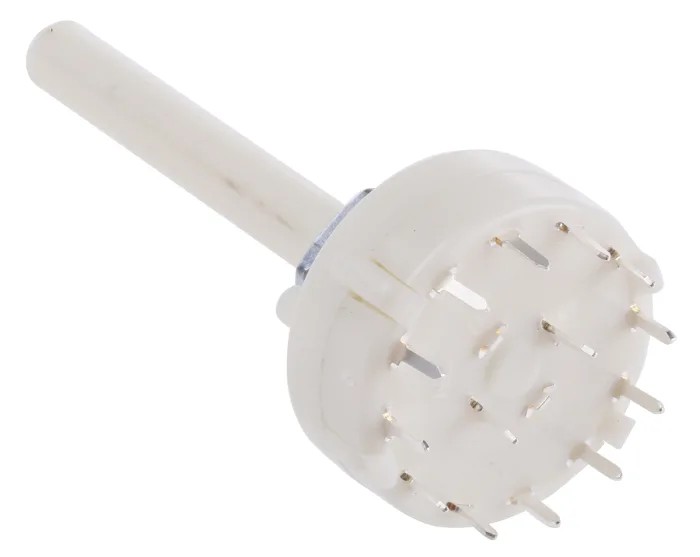

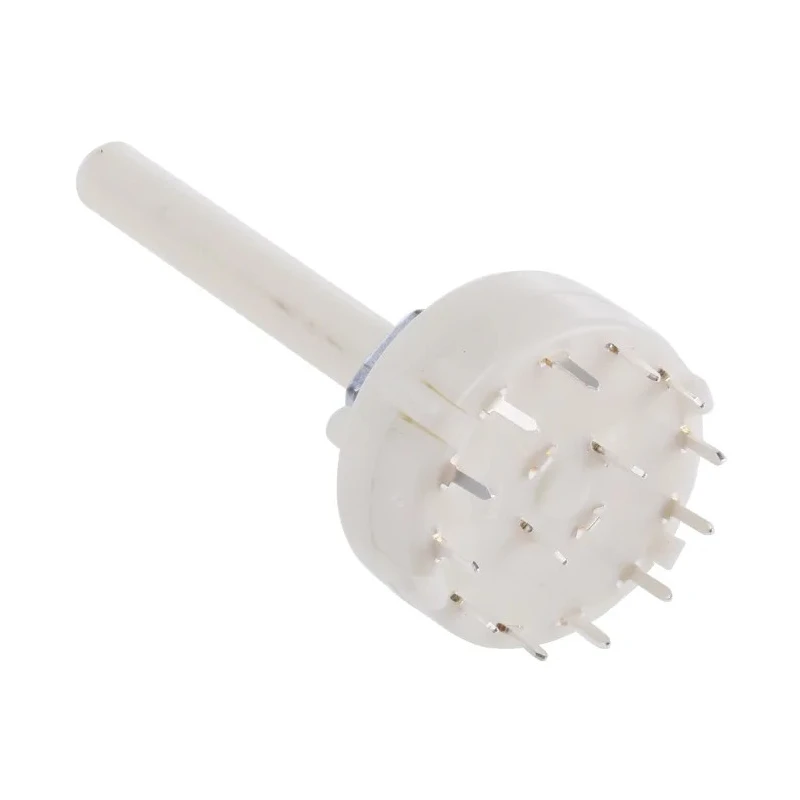

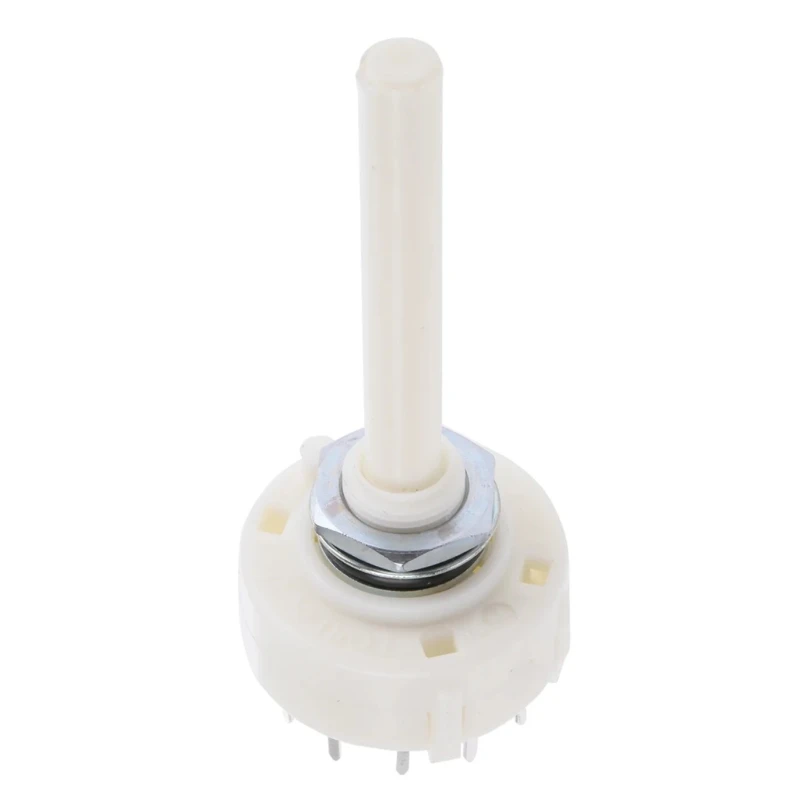

Lorlin CKF Series DP6T Rotary Switch 150mA PCB Mount, Solder Terminals, Polyamide 66 Housing DP6T
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Height | 64.1mm |
| Model | DP6T |
| Depth | 18.1mm |
| IP Rating | IP65 |
| Width | 27.5mm |
| Mount Type | PCB |
| Housing Material | Polyamide 66 |
| Series | CKF |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DP6T |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Maximum dc Voltage | 250V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Actuator Colour | White |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Operations |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 30 ° |
| Alps Alpine, 6 Position DP6T Rotary Switch, 150 mA, PC PinBrand | Alps Alpine |
| C & K, 6 Position DP6T Rotary Switch, 150 mA, SolderBrand | C & K |
Key Features
- The switch supports a 150mA contact current rating.
- It features polyamide 66 housing for enhanced durability and insulation.
- The unit is sealed to IP65 for protection against dust and water ingress.
- Designed with a 30° indexing angle and double pole 6 throw contact configuration.
- Its compact size includes a 27.5mm diameter and 64.1mm height for easy PCB mounting.
- Operating temperature range from -30°C to 85°C suits diverse environments.
- Mechanical life rated for 10,000 operations ensures extended usage.
Product Description
Lorlin DP6T Rotary Switch CKF Series is a sealed rotary switch intended for PCB mounting with reliable latching operation and solder terminals, designed specifically for electronic and electrical applications requiring a compact yet durable switching solution.
This 2-pole, 6-position Rotary Switch supports a switch contact current of 150mA and is rated for a maximum voltage of 250V AC/DC, making it suitable for low current switching tasks in industrial and commercial electronic circuit boards.
The switch features a polyamide 66 housing providing robust mechanical strength and electrical insulation, complemented by an IP65 rating that ensures protection against dust ingress and water splashes. With a diameter of 27.5mm, a depth of 18.1mm, and a height of 64.1mm, the switch is compact and fits standard PCB layouts.
The actuator is white in color and the switch has a 30° angle of throw with dampened indexing to reduce shaft play, enhancing positional accuracy and ease of operation. Mechanical durability is assured with a lifespan of 10,000 operations.
The operating temperature spans from -30°C to 85°C, allowing its deployment in varied environments including industrial automation, instrumentation, and consumer electronics. Its latching operation and sealed design make it ideal for use in applications requiring reliable multi-position switching under protected conditions.
The switch supports a 150mA contact current rating. Polyamide 66 housing ensures durability and insulation. Sealed to IP65 rating for protection against dust and water. Double pole 6 throw configuration with 30° indexing angle.
Compact size with a diameter of 27.5mm and height of 64.1mm. Operating temperature range of -30°C to 85°C. Mechanical lifespan of 10,000 operations for long-term reliability. This product is manufactured in the United Kingdom and conforms to RoHS standards, signifying compliance with environmental and safety requirements.
Explore our Electronics & Electricals category to find compatible switches and other components for your industrial and laboratory control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a contact current rating of 150mA.
It is rated for a maximum voltage of 250V AC/DC.
The switch has an IP65 rating, providing protection against dust and water ingress.
The switch has a diameter of 27.5mm, a height of 64.1mm, and a depth of 18.1mm.
It operates within a temperature range of -30°C to 85°C.
This rotary switch features a double pole 6 throw (DP6T) configuration.
It is designed with solder terminals for PCB mounting.
The mechanical life is rated for 10,000 operations.
The housing is made from polyamide 66, providing durability and insulation.
The switch has a 30° angle of throw, which aids in positional accuracy during operation.
Yes, it conforms to RoHS standards, signifying compliance with environmental and safety requirements.
This product is manufactured in the United Kingdom.
