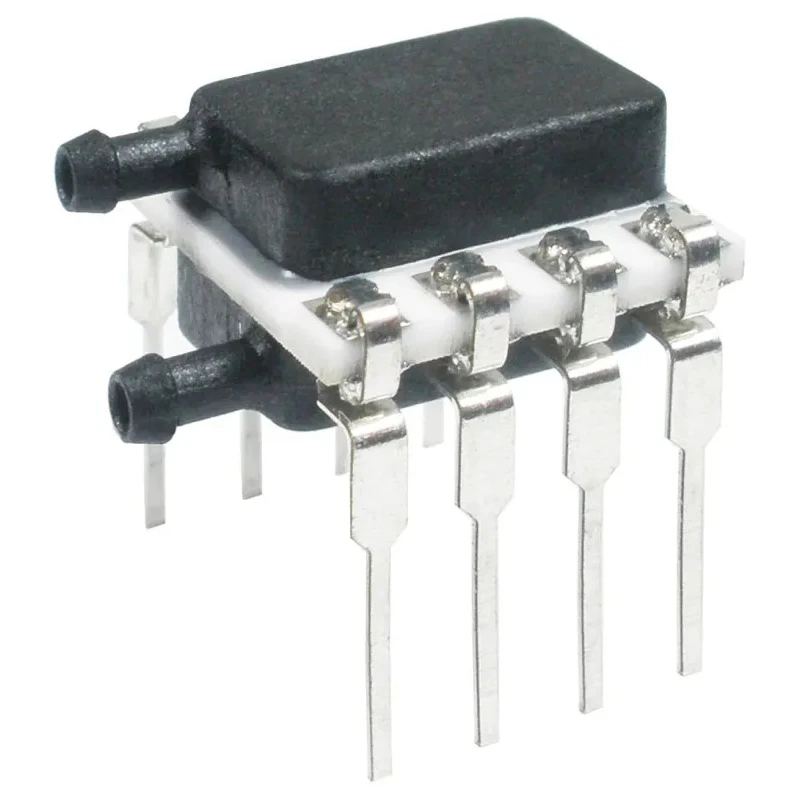

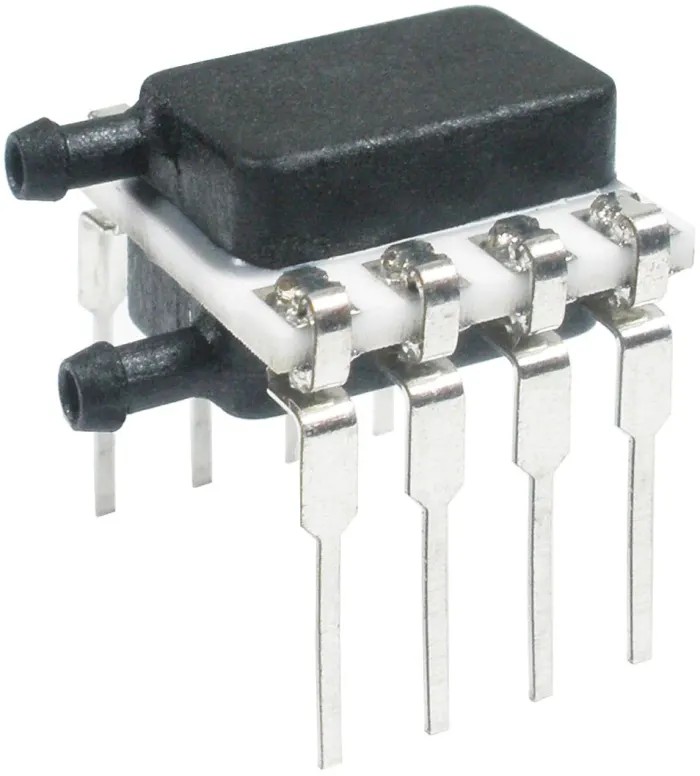

Honeywell Differential Pressure Sensor Surface Mount 4 Pin SIP Package SSCSNBN015PDAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 15 psi |
| Height | 22.87mm |
| Length | 27.31mm |
| Model | SSCSNBN015PDAA5 |
| Sensor Type | Differential Pressure Sensor |
| Mount Type | Surface |
| Series | SSC |
| Maximum Operating Temperature | 85°C |
| Port Type | Dual Axial |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | -15psi |
| Maximum Overload Pressure | 60psi |
Key Features
- Operates with a supply voltage range from 3.3V to 5V.
- Maximum operating pressure of 15 psi with overload up to 60 psi.
- High accuracy of ±0.25% ensures reliable and stable output.
- Dual axial port type supports differential pressure sensing.
- Wide operating temperature range from -40°C to 85°C.
- Compact dimensions of 27.31mm length and 22.87mm height.
- No automotive certification; designed for industrial use.
- SSC series with ratiometric analog output.
Product Description
Honeywell SSCSNBN015PDAA5 Differential Pressure Sensor is a precision piezoresistive silicon sensor provided in a 4-pin SIP surface mount package. It supports a differential pressure range of ±15 psi with a maximum overload pressure rating of 60 psi, making it ideal for sensitive pressure measurement in electronic components and industrial instrumentation.
With an operating supply voltage between 3.3V and 5V and an accuracy of ±0.25%, this sensor provides industry-leading long-term stability and reliable output essential for applications requiring precise pressure monitoring. The sensor utilizes dual axial ports enabling differential pressure sensing in compact form factor optimized for PCB mounting.
Its rugged design supports operating temperatures from -40°C to 85°C, accommodating a variety of environments including laboratory setups, HVAC systems, pneumatic control, and industrial automation. The sensor does not feature automotive certifications, focusing its use on general industrial, electronic, and laboratory instrumentation sectors.
Operates between supply voltages of 3.3V and 5V. Maximum operating pressure of 15 psi, overload up to 60 psi. Accuracy of ±0.25% ensures precise pressure detection. Surface mount SIP package with 4 pins for easy integration.
Dual axial pressure ports for differential measurement. Temperature range from -40°C to 85°C tolerance. Compact dimensions facilitate installation in tight spaces. SSC series with analog ratiometric output.
This sensor is suitable for applications in industrial equipment, electronic devices, laboratory instruments, HVAC monitoring, and pneumatic systems. Its design supports integration in pressure measurement IC assemblies requiring stringent accuracy and stability. The package enables efficient mounting on printed circuit boards with surface mount technology.
Explore Honeywell sensors and other Pressure Sensor ICs on EnvMart for a wide range of industrial and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 15 psi, with an overload pressure rating of up to 60 psi.
This model has an accuracy of ±0.25%, ensuring reliable and stable output for pressure measurements.
It operates with a supply voltage range from 3.3V to 5V.
The sensor has a length of 27.31mm and a height of 22.87mm, making it compact for installation.
The operating temperature range is from -40°C to 85°C, suitable for various industrial environments.
It features a ratiometric analog output, which is typical for the SSC series.
This model is designed for surface mounting, utilizing a 4-pin SIP package for easy integration.
It utilizes a dual axial port type, which supports differential pressure sensing.
No, this sensor does not have automotive certification and is designed for industrial use.
It is suitable for applications in industrial equipment, electronic devices, laboratory instruments, HVAC monitoring, and pneumatic systems.
The minimum operating pressure is -15 psi, allowing for a range of differential pressure measurements.
The Honeywell SSCSNBN015PDAA5 is manufactured in India.
