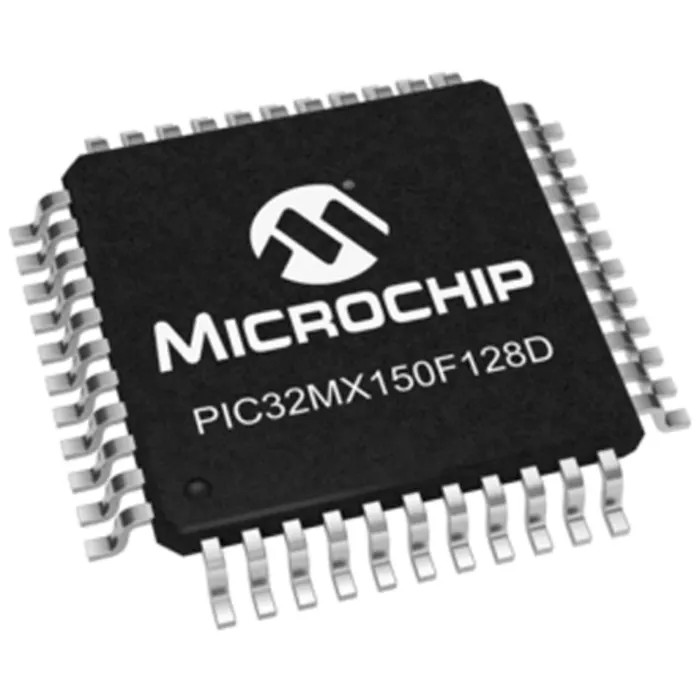

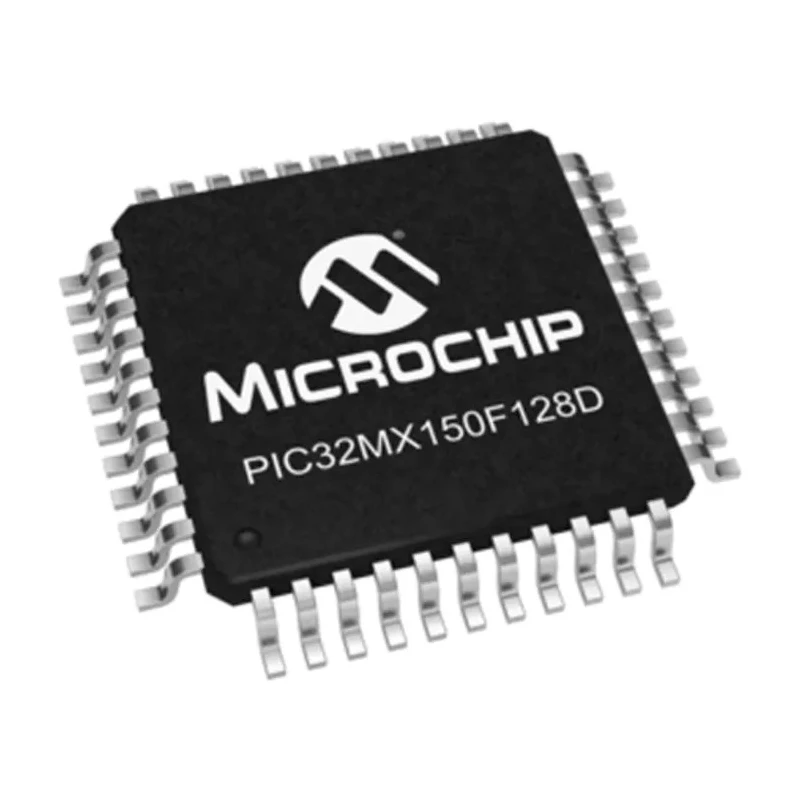

Microchip 32 bit PIC Microcontroller 40 MHz 131kB FLASH 44-Pin TQFP PIC32MX
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC32MX |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC32MX |
| Maximum Operating Temperature | +85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Clock and can be tuned in Run-Time |
| Ram size | 32kB |
| Pin Count | 44 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 131kB |
| Maximum Clock Frequency | 40MHz |
| Analogue Comparators | 3 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
| High-performance 32-bit microcontrollers designed for | High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio |
Key Features
- Operates on a PIC 32-bit core architecture optimized for embedded applications.
- Offers 32kB RAM and supports 13 channels of 10-bit ADC for analog inputs.
- Programmable through In-Circuit Serial Programming (ICSP) and supports In-Circuit Debug (ICD).
- Features Peripheral Pin Select for flexible I/O pin assignments and five 16-bit timers.
- Supports data communication interfaces including USB OTG, SPI, I2C, UART with LIN 2.0 and IrDA protocols.
- Suitable for applications requiring multitasking embedded control and high-performance audio processing.
- Operates within temperature range of -40°C to +85°C for industrial reliability.
- Maximum supply voltage is 3.6V with minimum 2.3V ensuring stable power requirements.
Product Description
The Microchip PIC32MX150F128D-I/PT is a high-performance 32-bit microcontroller featuring a PIC core operating at 40 MHz, making it ideal for advanced embedded applications.
This device integrates 131kB of FLASH program memory and 32kB of RAM, supporting intensive processing tasks such as user interfaces, Ethernet, USB, CAN connectivity, and audio processing.
Packaged in a 44-pin Thin Quad Flat Package (TQFP), it ensures surface mounting flexibility alongside compact dimensions of 10mm by 10mm and a height of 1.05mm. Designed for industrial and commercial applications, it operates reliably from -40°C to +85°C with a supply voltage range from 2.3V to 3.6V, suitable for demanding environments.
Peripheral pin select capability enables configurable I/O pins, complemented by five 16-bit timers and multiple ADC channels for precise analog data acquisition.
Communication interfaces include USB 2.0 Full-Speed On-The-Go (OTG) controller, SPI, I2C with SMBus support, and UART modules supporting LIN 2.0 and IrDA protocols, addressing versatile connectivity needs.
The microcontroller supports MIPS32® M4K® core architecture delivering efficient processing with features such as MIPS16e® mode for code size optimization and multiple power management modes for energy efficiency.
Operates at 40 MHz clock frequency. Includes 131kB FLASH memory and 32kB RAM capacity. Features 13-channel 10-bit ADC and three analog comparators. Implemented with RISC instruction set architecture for streamlined processing.
5 timers and Peripheral Pin Select enhance embedded control capabilities. USB OTG, SPI, I2C, and UART interfaces provide versatile communication options. Compact 44-pin TQFP package suitable for dense PCB layouts.
With application areas spanning industrial automation, audio interfaces, embedded communication, and graphics, the PIC32MX150F128D-I/PT Microcontroller offers robust performance and flexibility. Explore the Microchip product portfolio for efficient and reliable 32-bit embedded solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the Microchip PIC32MX150F128D-I/PT is 40 MHz.
This microcontroller features a program memory size of 131kB FLASH.
It has a RAM size of 32kB.
The operating temperature range for this model is from -40°C to +85°C.
This model supports 13 channels of 10-bit ADC for analog inputs.
It comes in a 44-pin Thin Quad Flat Package (TQFP).
It supports USB OTG, SPI, I2C, and UART with LIN 2.0 and IrDA protocols.
The height of the PIC32MX150F128D-I/PT is 1.05mm.
This model features five 16-bit timers.
The supply voltage range is from 2.3V to 3.6V.
It operates on a PIC 32-bit core architecture optimized for embedded applications.
It is suitable for applications requiring multitasking embedded control and high-performance audio processing.
