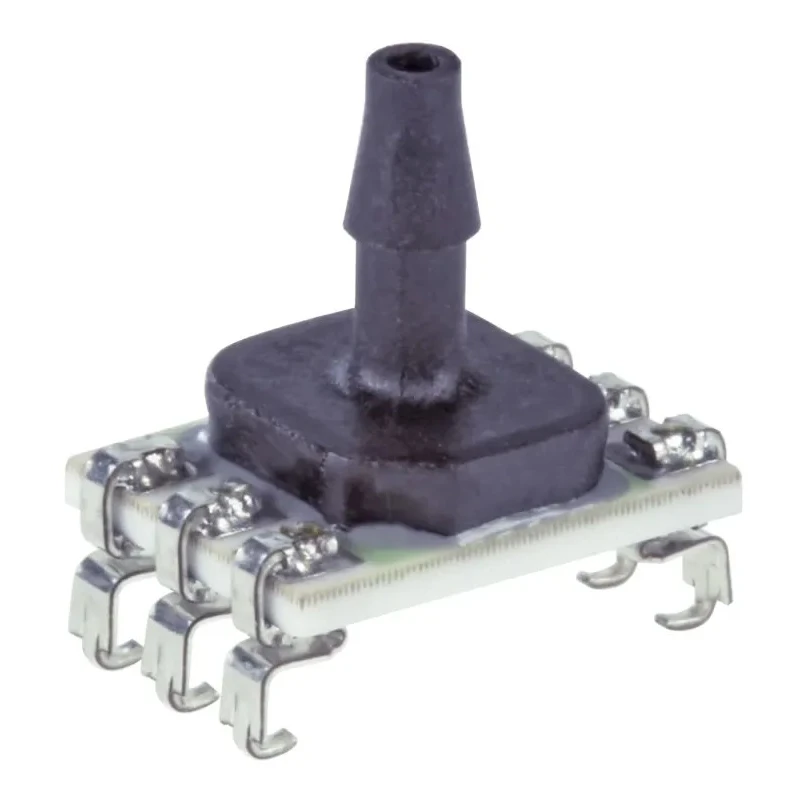

Honeywell Technologies Gauge Pressure Sensor Board 6 Pin SMT 5V 250psi Max Overload Accuracy ±0.25% ABPMANV060PGAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 60 psi |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPMANV060PGAA5 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 250psi |
Key Features
- This sensor features a maximum operating pressure of 60 psi and a maximum overload pressure of 250 psi.
- Piezoresistive sensor type with single axial barbed port ensures accurate pressure readings.
- Compact dimensions of 10.63mm height, 7.3mm length and 6.3mm width suit board mounting applications.
- Wide operating temperature range from -40°C to +85°C enables use in various industrial environments.
- ISO 9001 manufacturing standard with compliance to BPA Free, LFGB, and NSF-169 standards ensures quality and reliability.
- Outputs include ratiometric analogue and 12-bit digital signals compatible with I2C or SPI protocols.
- Designed for dry gas or liquid media usage with options for dry or liquid media versions.
- Applications include CPAP and ventilator pressure monitoring, pneumatic control, blood analysis equipment, HVAC transducers, and commercial appliances.
Product Description
Honeywell Technologies ABPMANV060PGAA5 is a gauge pressure sensor board designed for precise pressure measurements up to 60 psi maximum operating pressure, with a maximum overload pressure of 250 psi. It operates on a low voltage 5 V supply and offers ±0.25% accuracy, making it suitable for sensitive measurement applications in industrial, laboratory, HVAC, and medical environments.
This pressure sensor utilizes piezoresistive sensing technology with a single axial barbed port for reliable pressure transduction. The SMT package with 6 pins facilitates easy board mounting with compact dimensions of 10.63mm height, 7.3mm length, and 6.3mm width.
The sensor supports both analogue ratiometric output and 12-bit digital output interfacing through I2C or SPI protocols. It includes on-board calibration and temperature compensation for stable and accurate readings over a wide temperature range from -40°C to +85°C.
Manufactured under ISO 9001 standards with BPA Free, LFGB, and NSF-169 approvals, this sensor offers a robust solution for monitoring pressures in dry gas or non-corrosive liquid media environments. An optional sleep mode provides power saving to support battery-powered applications.
Typical applications include respiratory devices such as CPAP and ventilators, pneumatic valve positioning, blood analysis and bedside monitoring equipment, HVAC system transducers, process gas monitoring, and compact commercial appliance integration like coffee machines.
This sensor offers ±0.25% accuracy for precise pressure measurement. It operates on a 5 V supply voltage with low power consumption. The device is temperature compensated for reliable performance across -40°C to +85°C. Overpressure limits up to 250 psi provide safety margins against pressure spikes.
Ratiometric analogue and 12-bit digital outputs ensure compatibility with various controllers. Compact SMT package with 6 pins enables integration into board-mounted systems. Compliant with ISO 9001 manufacturing to guarantee product quality.
Explore EnvMart's wide selection of industrial sensors and components for your project needs.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 60 psi, with a maximum overload pressure of 250 psi.
This model utilizes piezoresistive sensor technology for accurate pressure measurements.
The sensor has compact dimensions of 10.63mm in height, 7.3mm in length, and 6.3mm in width.
It offers an accuracy of ±0.25%.
The sensor supports ratiometric analogue output and 12-bit digital output, compatible with I2C or SPI protocols.
The operating temperature range is from -40°C to +85°C.
This sensor is designed for board mounting applications.
It is designed for use with dry gas or non-corrosive liquid media.
It complies with BPA Free, LFGB, NSF-169 standards and is manufactured under ISO 9001 standards.
The sensor operates on a supply voltage of 5V, with a minimum supply voltage of -0.3V.
Typical applications include CPAP and ventilator pressure monitoring, pneumatic control, blood analysis equipment, and HVAC transducers.
Yes, it includes an optional sleep mode to support battery-powered applications.
