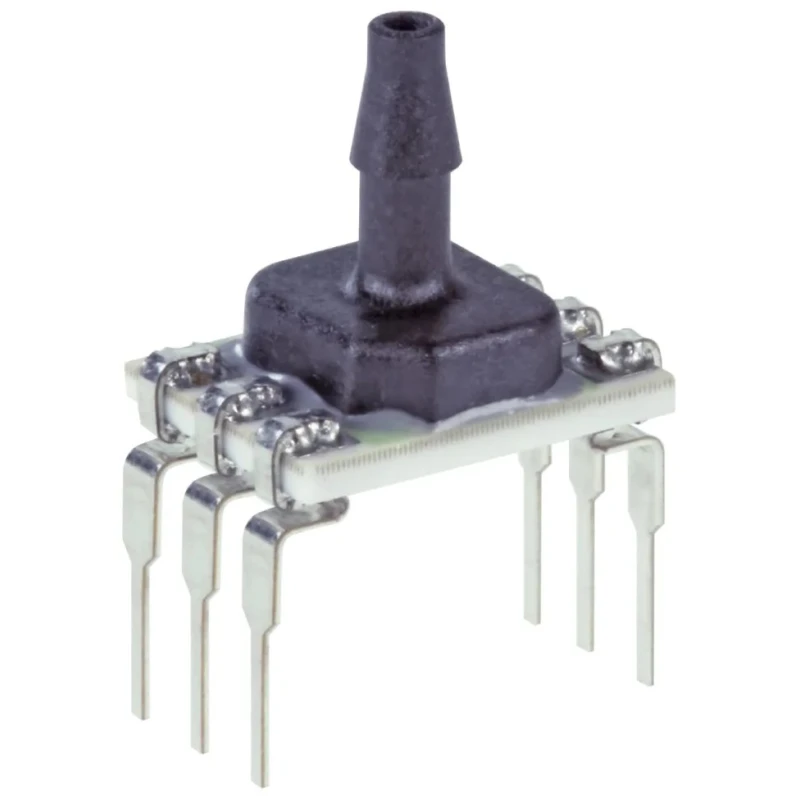

Honeywell Technologies Piezoresistive Pressure Sensor Board Mount DIP 6-Pin 5V 1 psi ±0.25% Accuracy ABPDANN001PGAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 1 psi |
| Height | 3.63mm |
| Length | 7.3mm |
| Model | ABPDANN001PGAA5 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 30psi |
Key Features
- This sensor is piezoresistive type designed for precise low-pressure measurement.
- Maximum operating pressure is 1 psi with a maximum overload pressure of 30 psi.
- Operates with supply voltages from 3.3V to 5V for flexible application designs.
- Compact board mount DIP package with 6 axial barbed pin connections.
- Operates in temperatures from -40°C to +85°C ensuring reliability in varied conditions.
- Provides a ratiometric analogue and digital output with fast update rates - 1 kHz analogue and 2 kHz digital.
- Excellent ±0.25% full scale span accuracy with ±1.5% total error band over compensated temperature range.
- Low power consumption with 2 µA sleep mode extends battery life in portable applications.
Product Description
Honeywell ABPDANN001PGAA5 is a high-precision piezoresistive pressure sensor designed for board-mounting in a DIP package with 6 pins. It operates at supply voltages of 3.3 V or 5 V, offering accurate low-pressure measurement capabilities with maximum operating pressure of 1 psi and a maximum overload pressure of 30 psi. Featuring ±0.25% accuracy full scale span and minimal drift, this sensor is calibrated and temperature compensated by an onboard ASIC ensuring stable performance over the operating temperature range of -40°C to +85°C.
This pressure sensor provides both analogue and digital outputs updated at high speeds (1 kHz analogue, 2 kHz digital), ideal for applications that require quick and precise pressure readings such as CPAP and ventilator pressure monitoring, blood analysis, patient monitoring devices, HVAC systems, and pneumatic control. Its compact DIP board mount format facilitates integration into electronic systems where space and reliability are critical.
The device includes a single axial barbed port for pressure measurement and is suitable for use with non-corrosive liquids when used with a silicone-based gel option that protects the electronics. It also meets ISO 9001 automotive standards and BPA Free, LFGB, NSF-169 standards for quality and safety, making it suitable for food and medical-related environments. The sensor meets Moisture Sensitivity Level 2 and has unlimited storage life when packed appropriately.
This sensor delivers outstanding ±0.25% FSS accuracy and excellent long-term stability. It operates efficiently from either 3.3V or 5.0V supply sources for adaptable system design. Low current sleep mode consumption helps extend battery life in portable systems.
Robust compact design with 6-pin DIP package ensures easy mounting and integration. Supports use cases across industrial, medical, HVAC, and commercial sectors requiring reliable low-pressure sensing.
This ABPDANN001PGAA5 pressure sensor is ideal for engineers and designers who need a reliable, high-accuracy board mount pressure sensor IC for critical instrumentation and control systems. Explore more sensors and electronic components in the Electronics & Electricals category on EnvMart.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 1 psi, with a maximum overload pressure of 30 psi.
It provides an accuracy of ±0.25% full scale span.
This sensor operates with supply voltages from 3.3V to 5V.
It operates in temperatures ranging from -40°C to +85°C.
It provides both ratiometric analogue and digital outputs, with update rates of 1 kHz for analogue and 2 kHz for digital.
The sensor has a height of 3.63 mm, a length of 7.3 mm, and a width of 6.3 mm.
This model is designed for board mounting in a DIP package.
It features a single axial barbed port for pressure measurement.
It meets ISO 9001 automotive standards and is certified BPA Free, LFGB, and NSF-169.
It is suitable for applications such as CPAP and ventilator pressure monitoring, blood analysis, patient monitoring devices, HVAC systems, and pneumatic control.
The sensor has a low power consumption of 2 µA in sleep mode, which helps extend battery life in portable applications.
This model has a pin count of 6.
