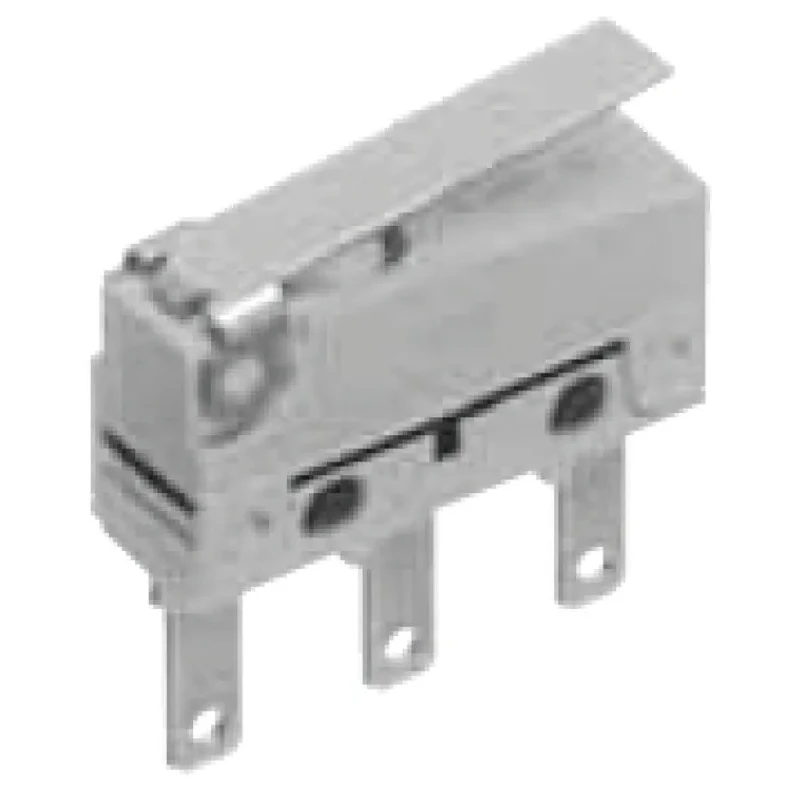

Panasonic Short Hinge Lever Micro Switch, Solder Terminal, 100mA, 250 V ac, 30 V dc, SPCO, IP50 ABS141151

Panasonic ABS141151 Short Hinge Lever Micro Switch is a high-performance subminiature switch designed for industrial, automotive, and home appliance applications. Featuring a solder terminal and a compact 6.4mm width housing made of ABS material, this micro switch provides reliable operation with an IP50 ingress protection rating.

The switch is engineered to handle a contact current of 100mA at 250 V ac or 30 V dc. Its single-pole changeover (SPCO) contact configuration allows versatile use in various electrical circuits. The operating force is 0.59 Newtons, enabling precise actuation with minimal effort.

Designed for durability, the micro switch offers a mechanical life of 5 million operations, ensuring dependable switching performance over extended use. It operates effectively in a wide temperature range from -40°C to 85°C, supporting demanding environments such as automotive electrical systems and household appliances.

Panasonic employs elastomer double moulding and ultrasonic swaging technologies in the sealed subminiature construction, enhancing environmental resistance and reliability. The compact dimensions of 19.8 mm length, 11.1 mm width, and 6.4 mm height enable space-saving installations without compromising functionality.

Subminiature size with a short hinge lever actuator for compact installations. Solder terminal type ensures secure and reliable electrical connections. Contact current rated at 100mA for precise switching applications. Single-pole changeover (SPCO) contact configuration for versatile circuit control.

Housing made of durable ABS material with IP50 rating for environmental protection. Operating force of 0.59N ensures responsive actuation. Wide operating temperature range from -40°C to 85°C for harsh environments. Robust mechanical life rated at 5,000,000 operations for long-term reliability.

Standards compliance includes RoHS, VDE, and cURus certifications. Compact dimensions measuring 19.8 x 11.1 x 6.4 mm suitable for home appliances and automotive electrical systems.

This micro switch is ideal for use in industrial automation, HVAC, manufacturing, automotive electrical systems, and home appliance controls. Its sealed design and compliance with international standards make it suitable for applications requiring reliable electrical switching performance and environmental resistance.
