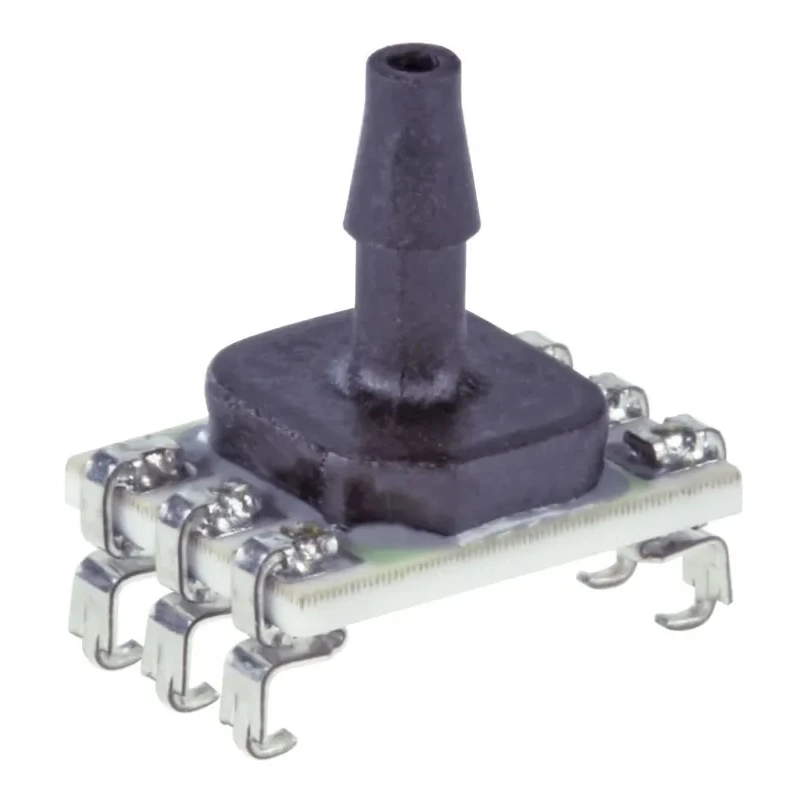

Honeywell Technologies Piezoresistive Gauge Pressure Sensor SMT Board Mount 30 psi 5V ±0.25% Accuracy ABPMANV030PG2A3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 30 psi |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPMANV030PG2A3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 1724kPa |
Key Features
- Operates efficiently within -40°C to +85°C temperature range.
- Provides 12-bit digital and ratiometric analog outputs for versatile interfacing.
- Supports dry non-corrosive gases and optional gel coating for liquid media.
- Compact SMT package with 6 pins suitable for PCB mounting.
- Designed for industrial and medical applications with ISO 9001 manufacturing standards.
- Low power consumption with sleep mode reducing current to microamp levels.
- Complies with RoHS and food safety standards including BPA Free, LFGB, NSF-169.
- Ideal for CPAP, ventilator pressure monitoring, pneumatic control, and HVAC systems.
Product Description
Honeywell Technologies ABPMANV030PG2A3 is a high-accuracy piezoresistive gauge pressure sensor designed for board mount SMT assembly. Its compact form factor with dimensions of 7.3mm length, 6.3mm width, and 10.63mm height suits industrial and medical system industry applications requiring precise pressure measurements up to 30 psi (1724 kPa maximum overload).
This sensor provides stable output through temperature compensation from -40°C to +85°C using an on-board ASIC, delivering ±0.25% measurement accuracy. It supports ratiometric analog and 12-bit digital SPI/I2C protocol outputs for versatile electronic interfacing with external devices.
The ABPMANV030PG2A3 is suitable for dry non-corrosive gases and can be optionally coated with silicone-based gel to handle non-corrosive liquids or condensation-prone environments. Its single axial barbed port facilitates pressure connections. Manufactured according to ISO 9001 standards, it meets rigorous quality and safety requirements including BPA Free, LFGB, and NSF-169 certifications for food-safe applications.
This sensor excels in applications such as medical equipment including CPAP and ventilators, pneumatic control systems, valve position feedback, blood analysis instrumentation, patient monitoring systems, HVAC pressure transmitters, and process gas monitoring. It is also suitable for consumer appliances like coffee makers requiring pressure sensing.
±0.25% accuracy improves measurement resolution. Wide operating temperature range from -40°C to +85°C. Fast sampling output up to 2kHz digital and 1kHz analog. Low-power sleep mode reduces current to microampere levels. Optional liquid media compatibility with gel coating.
Meets food safety approvals including BPA Free, LFGB, NSF-169. Compact SMT form factor with 6 pins and board mount capability.
Packaged in a surface mount technology package, it complies with J-STD-020E Moisture Sensitivity Level 2 for solder reflow assembly processes. This makes it ideal for modern, automated production of pressure sensing circuits in electronic and industrial environments.
Explore the full Honeywell ABP Series line for further pressure sensing solutions in industrial, laboratory, medical, HVAC, and consumer electronics applications on EnvMart.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 30 psi (1724 kPa).
This model has an accuracy of ±0.25%.
It operates efficiently within a temperature range of -40°C to +85°C.
The sensor provides 12-bit digital outputs and ratiometric analog outputs for versatile interfacing.
This model is designed for board mount (SMT) assembly.
The dimensions of the sensor are 7.3mm in length, 6.3mm in width, and 10.63mm in height.
It supports dry non-corrosive gases and can optionally be coated with silicone-based gel for compatibility with non-corrosive liquids.
The sensor operates with a supply voltage ranging from -0.3V to a maximum of 5V.
The SMT package of this sensor has a pin count of 6.
It complies with BPA Free, LFGB, and NSF-169 standards for food safety.
It is suitable for applications such as CPAP machines, ventilators, pneumatic control systems, and HVAC pressure monitoring.
It is manufactured according to ISO 9001 standards, ensuring quality and safety requirements.
