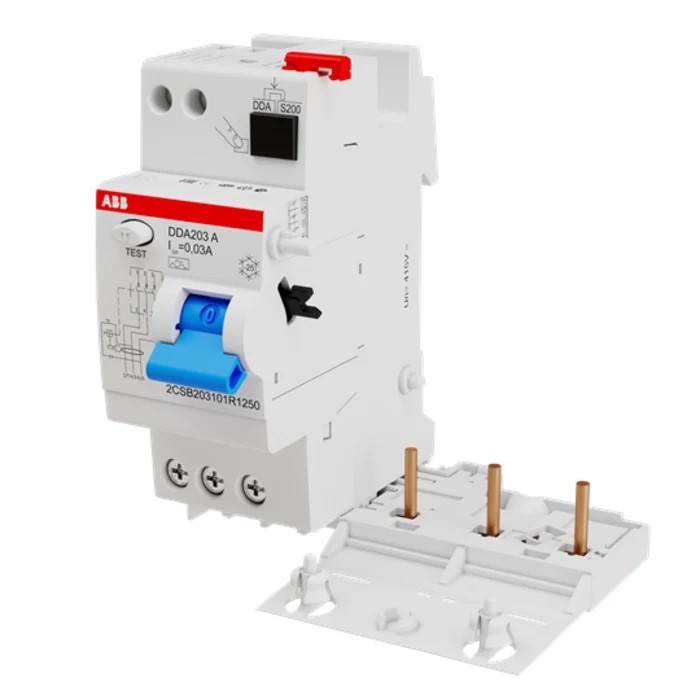

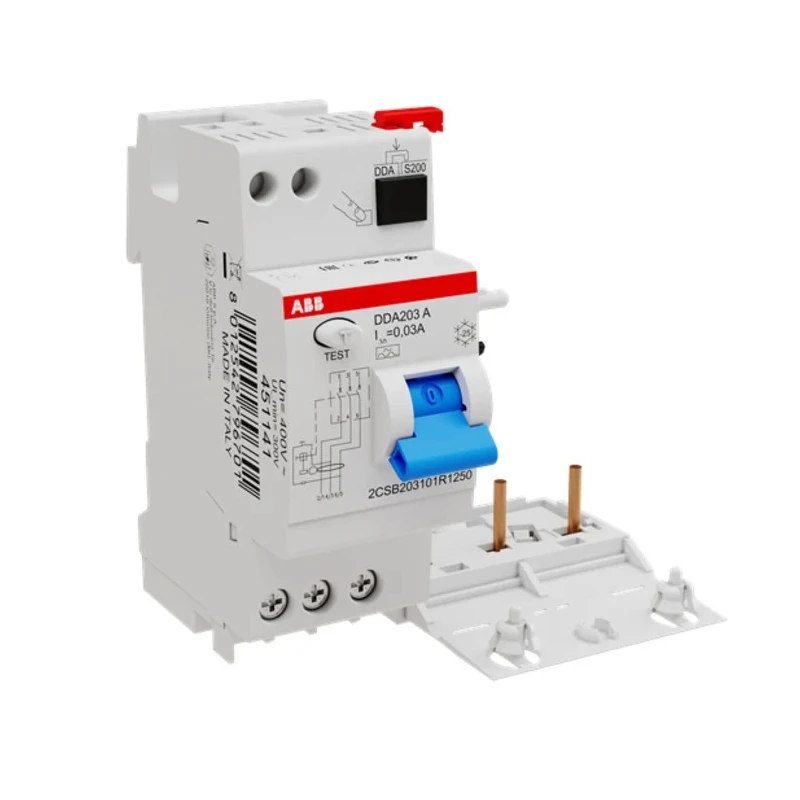

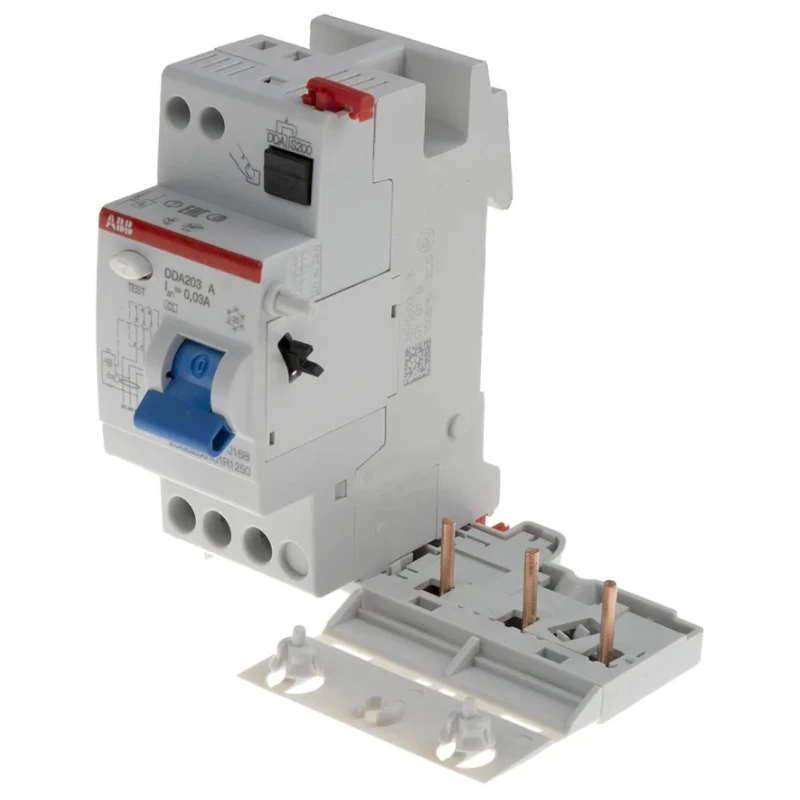

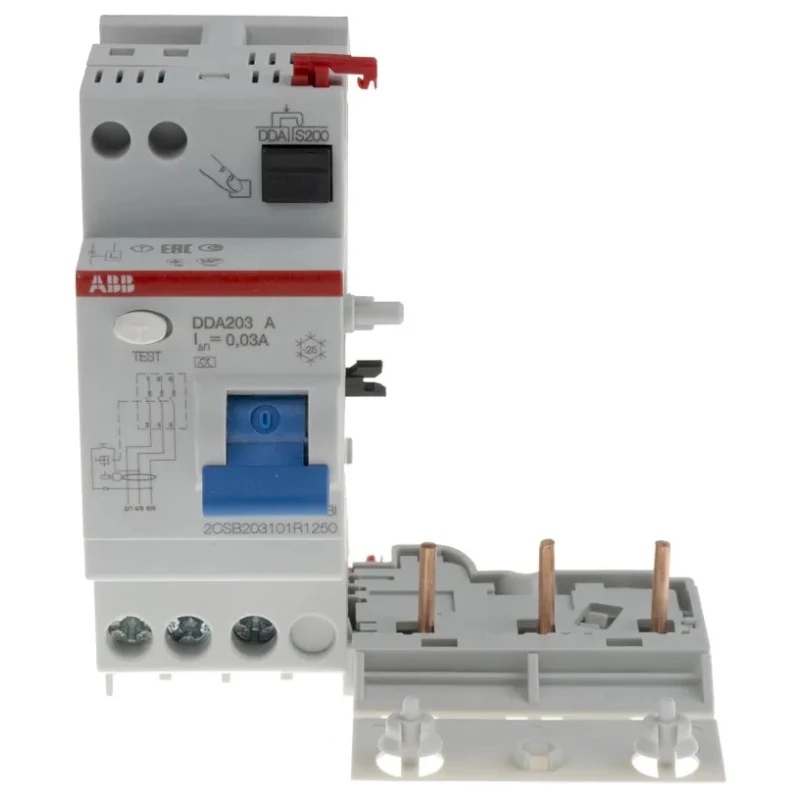

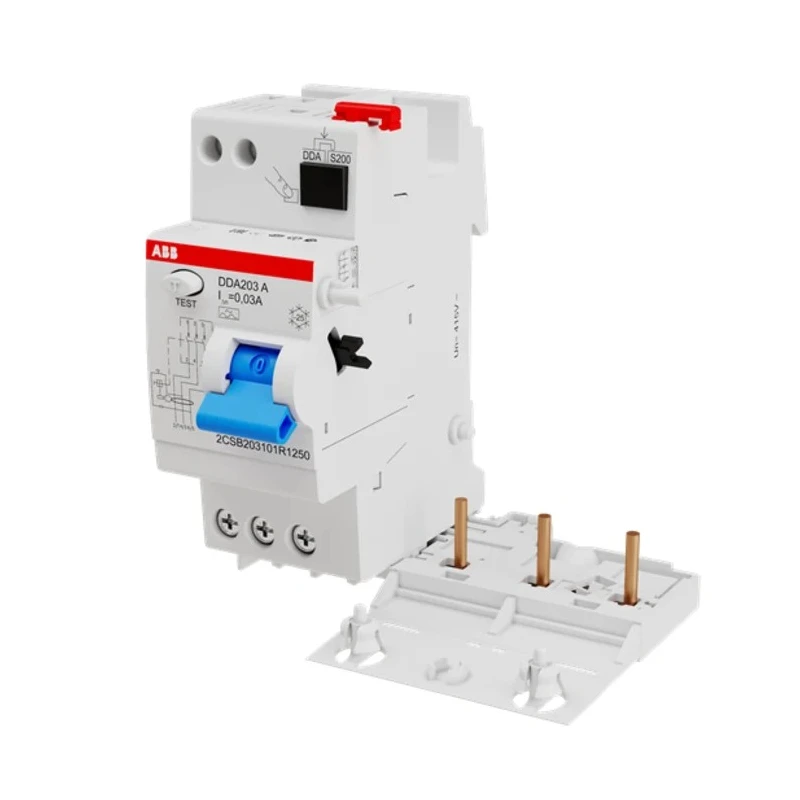

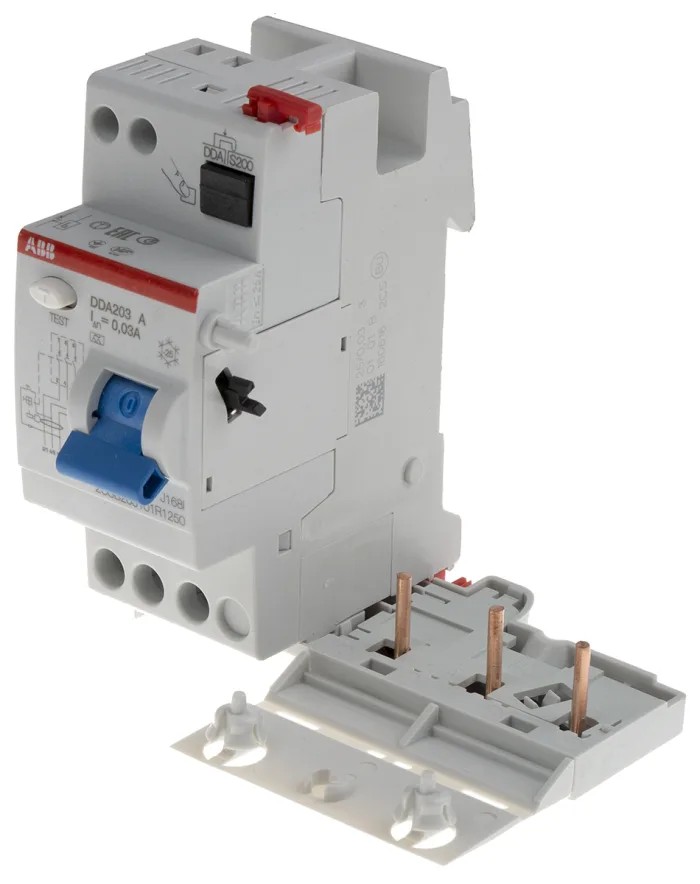

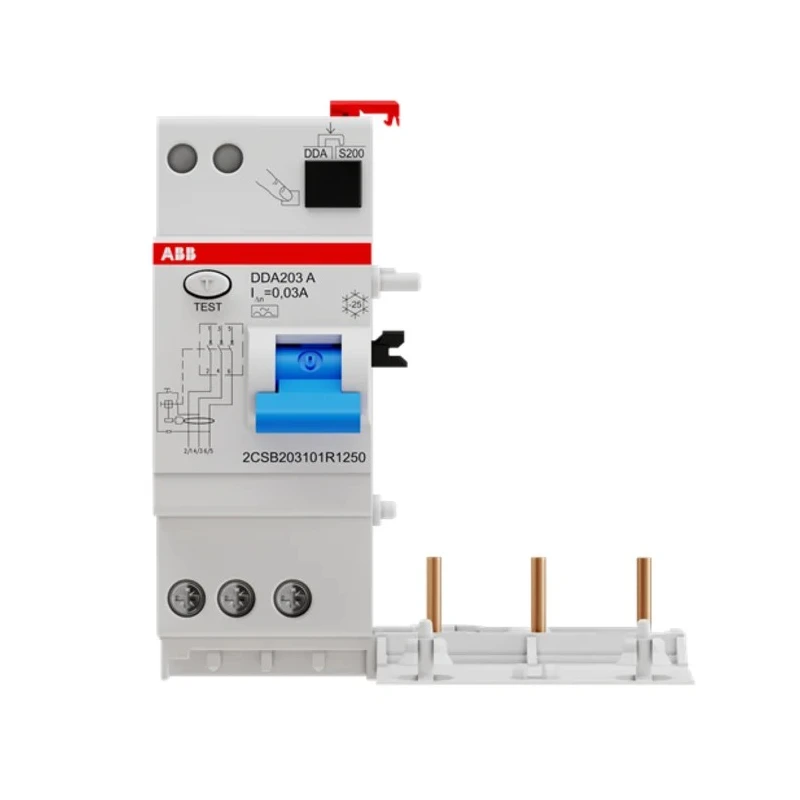

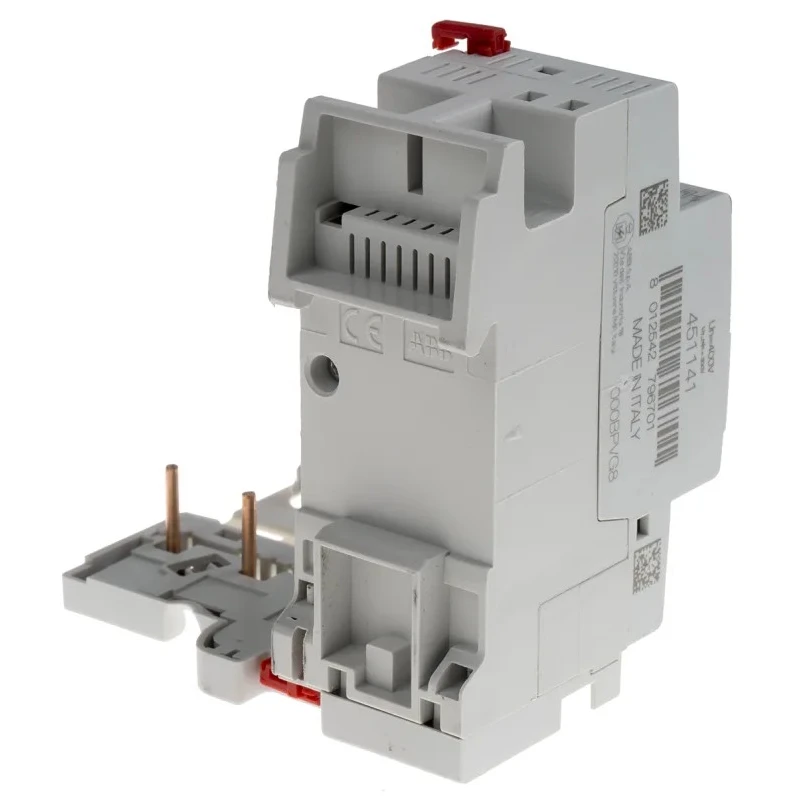

ABB Residual Current Device 25A 3-Pole 30 mA Type A 0.3 A 415V AC DDA 200 A Series 2CSB203101R1250 - DDA203A-25/0.03

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Device 25A 3-Pole 30 mA Type A 0.3 A 415V AC DDA 200 A Series 2CSB203101R1250 - DDA203A-25/0.03



Category Residual Current Device Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	System Pro M Compact
Brand	ABB
Height	80mm
Model	2CSB203101R1250 - DDA203A-25/0.03
Depth	76mm
Width	87mm
Mount Type	DIN Rail
Current Rating	25A
Series	DDA 200 A
Terminal type	Screw
Breaking Capacity	0.3A
Number of Poles	3
Standards/Approvals	CE
Rated AC Voltage	415V ac
Tripping Characteristics	Type A
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	Type A

Key Features

Instantaneous tripping at 30 mA sensitivity for enhanced safety.
Type A tripping characteristic suitable for residential and commercial applications.
Robust DIN rail mounting for easy tool-free installation.
Low power loss of 3W ensures energy-efficient operation.
Toggle switch with contact indicators shows operating status for quick troubleshooting.
Screw-type terminals for secure electrical connections.
Compact dimensions of 87mm width, 80mm height, and 76mm depth.
Conforms to CE standards and manufactured in Italy.

Product Description

ABB 2CSB203101R1250 - DDA203A-25/0.03 Residual Current Device DDA 200 A Series is designed for reliable earth leakage protection in residential, commercial, and industrial electrical installations. With a current rating of 25A and 3 poles, it ensures safe and effective circuit protection.

The device features instantaneous tripping at a sensitivity of 30 mA and Type A tripping characteristic that detects both AC and pulsating DC residual currents. It mounts easily on standard DIN rails without the need for tools, providing a simplified installation process.

Energy efficiency is optimized with a low power loss of 3W. The toggle switch actuator includes contact indicators, allowing users to quickly verify the RCD's operating state and troubleshoot if required. Screw terminal connections provide a robust and secure wiring interface.

The compact form factor measures 87 mm width, 80 mm height, and 76 mm depth, making it suitable for control panels with space constraints. This product meets CE certification requirements and is manufactured in Italy, ensuring quality and compliance with international standards.

Typical use cases include protection for control panels, commercial buildings, medical centers, assembly plants, and conveyor systems where sensitive earth leakage detection is critical for safety.

Instantaneous tripping at 30 mA sensitivity for enhanced safety. Type A tripping characteristic suitable for residential and commercial applications. Robust DIN rail mounting for easy tool-free installation. Low power loss of 3W ensures energy-efficient operation.

Toggle switch with contact indicators shows operating status for quick troubleshooting. Screw-type terminals for secure electrical connections. Compact dimensions of 87mm width, 80mm height, and 76mm depth. Conforms to CE standards and manufactured in Italy.
