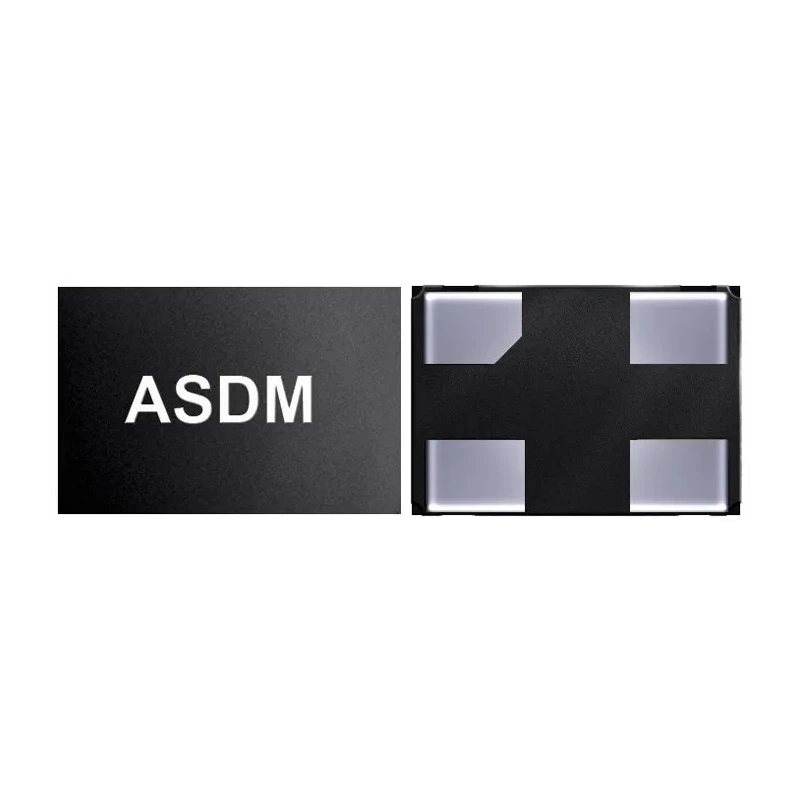

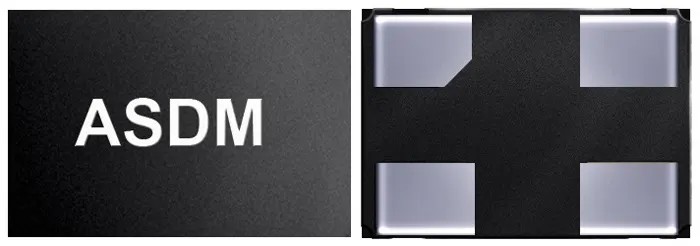

Abracon 80 MHz MEMS Oscillator 4-Pin Surface Mount ±50 ppm ASDM1-80.000MHZ-LC-T

Abracon ASDM1-80.000MHZ-LC-T MEMS Oscillator is a high-performance 80 MHz frequency device designed for reliable timing control in diverse electronic equipment. Featuring a small and sturdy 4-pin surface mount package, it is optimized for space-critical applications requiring accuracy and low power consumption.

This oscillator operates over a broad temperature range from -40°C to 85°C, making it suitable for demanding industrial, automotive, consumer electronics, portable devices, and military applications. The device’s frequency stability of ±50 ppm supports high-precision timing needs across environmental variations.

Operating supply voltage ranges from 1.8 V minimum to 3.3 V maximum, providing flexibility for integration with various circuit designs. The LVCMOS output level ensures seamless interfacing with digital logic and microcontrollers.

The compact QFN plastic package measures just 2.5 mm in length, 2 mm in width, and 0.85 mm in height, enabling integration into compact printed circuit boards with surface mount technology. Packaging on tape and reel supports automated insertion, enhancing manufacturing efficiency.

Operating frequency: 80 MHz. Frequency stability: ±50 ppm. Package size: 2.5 mm × 2 mm × 0.85 mm (L×W×H). Pin count: 4-pin surface mount. Operating voltage: 1.8 V - 3.3 V. Operating temperature: -40°C to 85°C. Output type: LVCMOS.

RoHS compliant.

This MEMS oscillator is ideal for use in consumer electronics such as TVs and DVRs, portable electronics including MP3 players and gaming consoles, industrial equipment operating in shock-prone and humid environments, military hardware, and automotive electronics requiring durable and precise clock sources.
