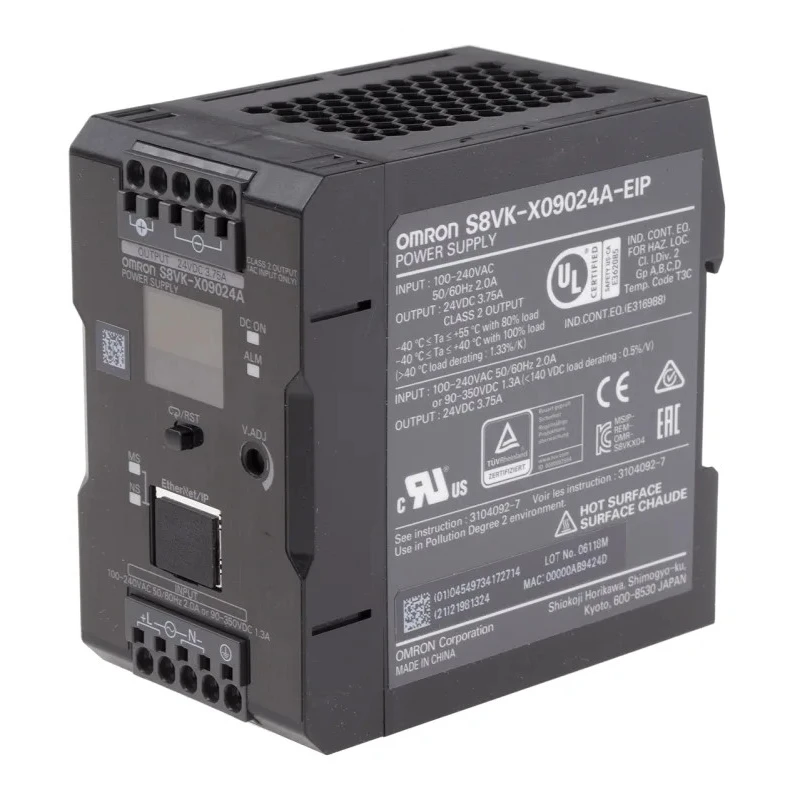

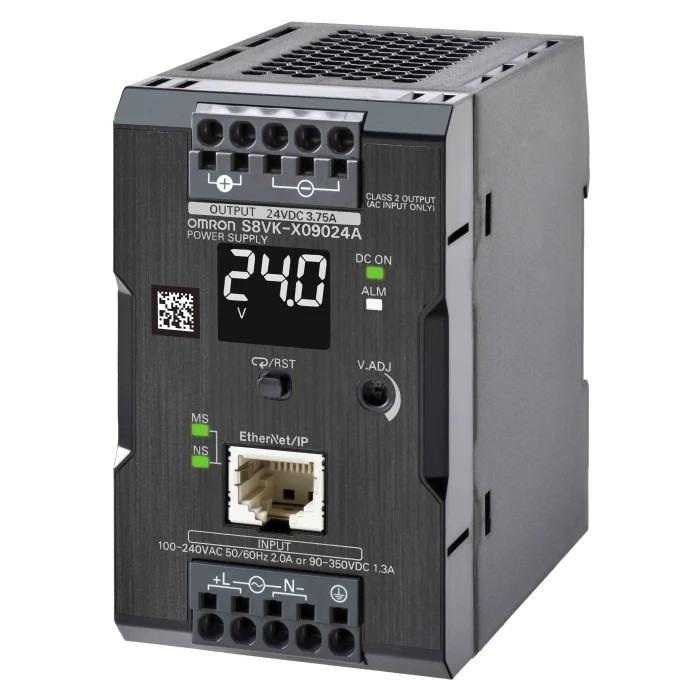

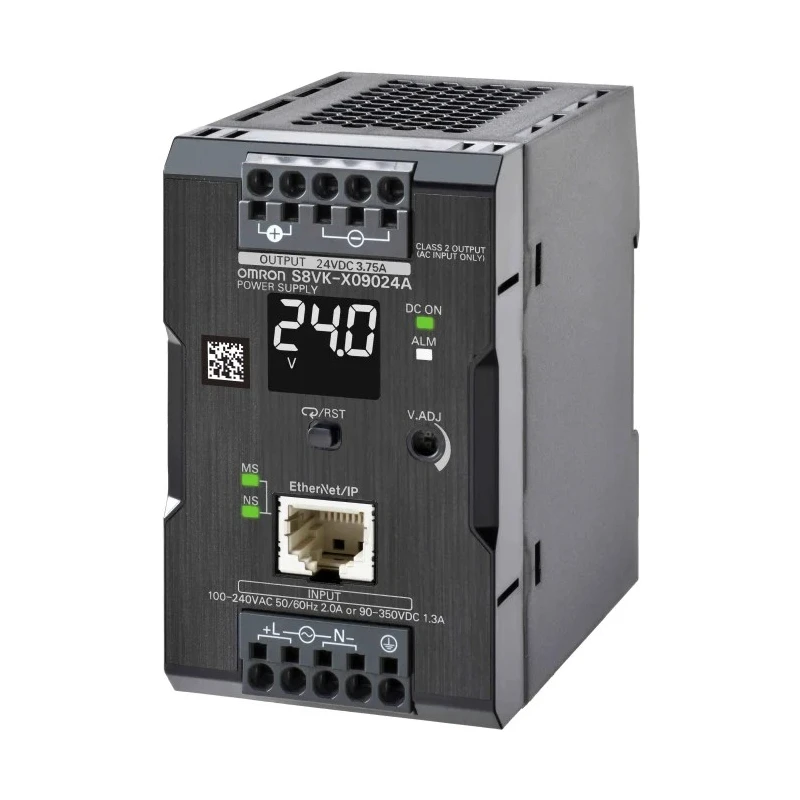

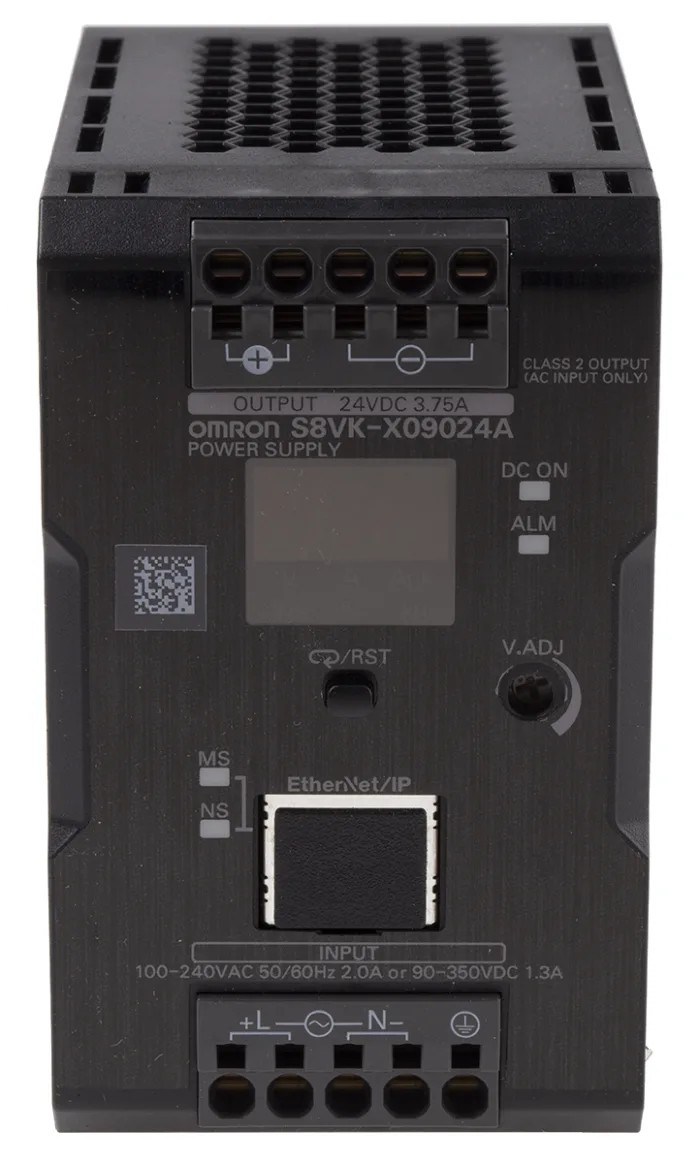

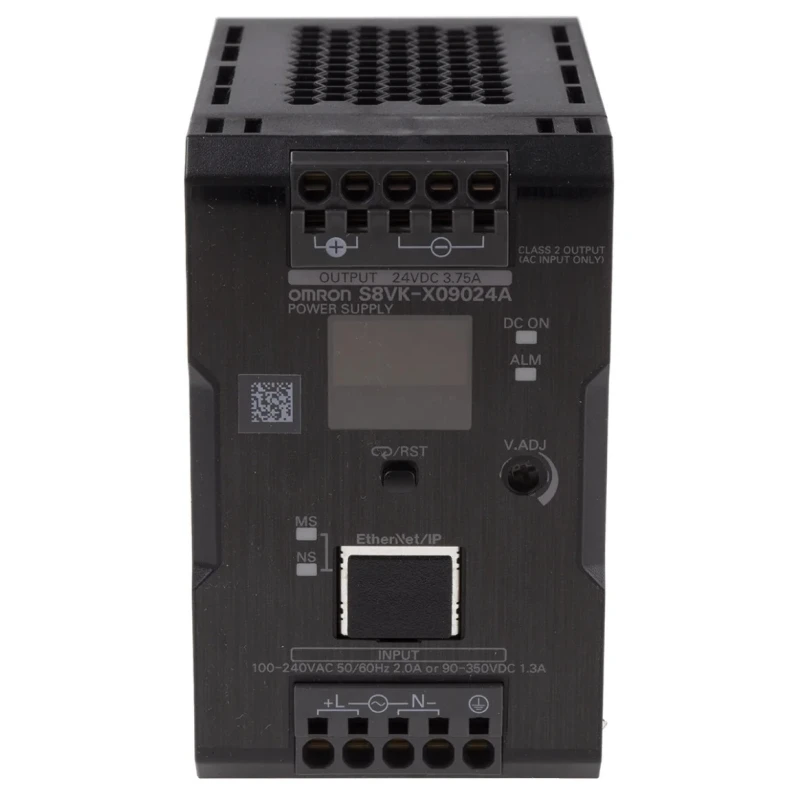

Omron S8VK-X Switched Mode DIN Rail Power Supply 100-240V AC Input, 24.1V DC, 3.75A Output, 90W S8VK-X09024A-EIP

Omron S8VK-X09024A-EIP is a reliable switched mode power supply designed for DIN rail mounting in industrial and commercial electrical panels. It offers a maximum output power of 90 W with a rated output voltage of 24.1 V DC and a maximum output current of 3.75 A. Suitable for 1-phase electrical systems, this compact power supply supports a wide input voltage range from 100 V AC to 240 V AC and can withstand a maximum of 350 V AC or DC for transient voltages.

The unit features communication capabilities including EtherNet/IP and Modbus TCP compatibility, allowing centralized monitoring via a PC connected through an Ethernet cable. Its built-in monitoring tools and indication LEDs provide real-time status updates, enhancing operational safety and reliability.

Constructed with a space-saving design, the S8VK-X09024A-EIP enables side-by-side installation without compromising ventilation up to 55°C. The device has considerable environmental resistance, including vibration resistance from 10 Hz to 55 Hz and shock resistance of 150 m/s², complemented by coated PCBs that improve resistance to humidity and gases prevalent in industrial environments.

Safety features include overload protection that automatically reduces output voltage when current exceeds safe limits (101% to 110%), ensuring protection against short circuits and overcurrent conditions. The power supply operates silently without a cooling fan and is rated IP20 for protection against solid foreign objects.

Dimensions are 90 mm in height, 55 mm in width, and 92 mm in depth, with a lightweight design of approximately 350 g, making it suitable for space-constrained installations. The power supply has a life expectancy rated for 10 years, making it a durable and cost-effective choice for continuous industrial operations.

This product is ideal for industrial automation, manufacturing facilities, building management systems, and other applications requiring reliable DC power conversion with communication and monitoring features.

Compact size and space saving design. Communication-enabled for centralized monitoring. Wide input voltage range and high efficiency. Overload and short circuit protection. Vibration and shock resistant for harsh environments.

Coated PCBs protect against humidity and gases. Silent operation with no cooling fan. IP20 protection standard. 10-year life expectancy. Discover more high-quality DIN Rail Power Supplies and accessories at EnvMart for your industrial and commercial power needs.
