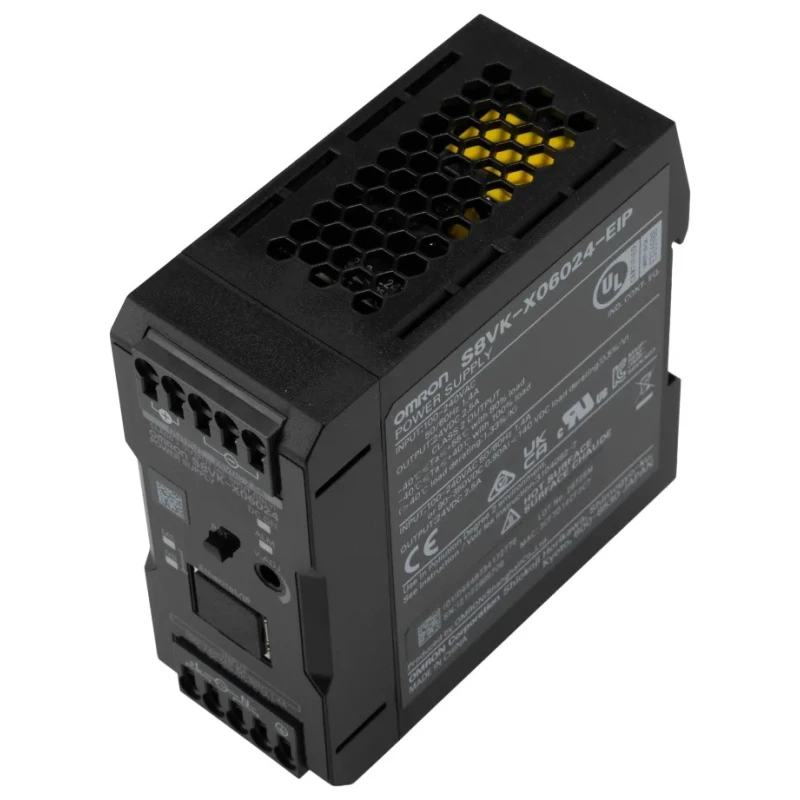

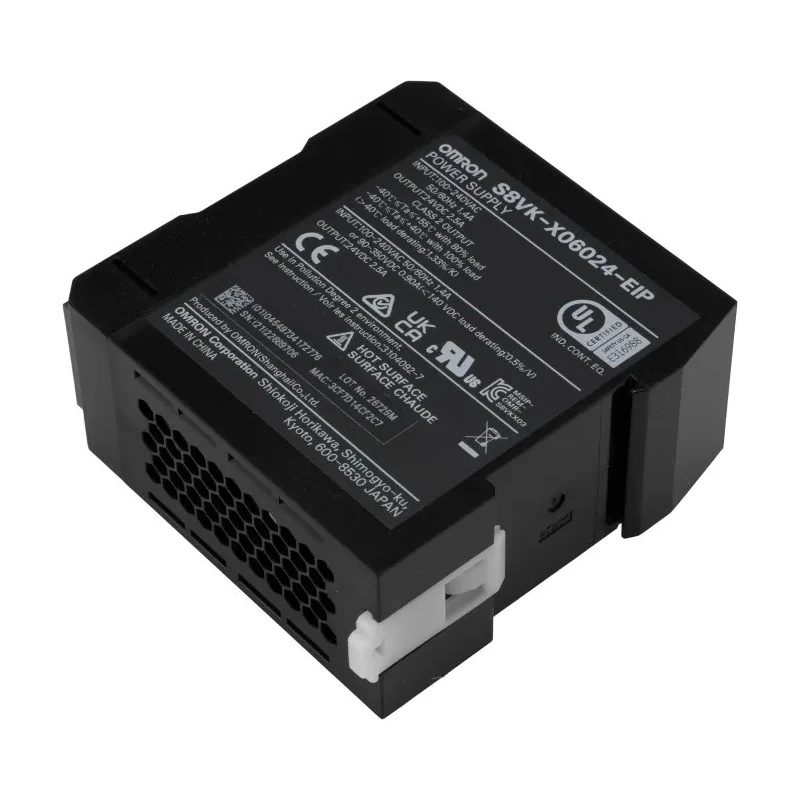

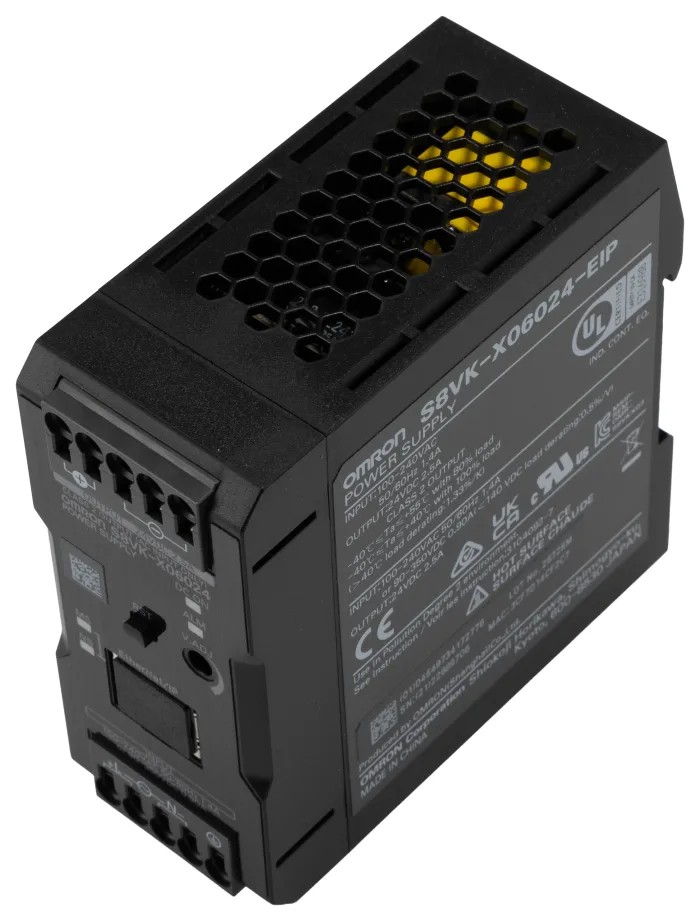

Omron S8VK-X Switched Mode DIN Rail Power Supply 240V AC Input 28V DC 2.5A Output 60W S8VK-X06024-EIP

Omron S8VK-X06024-EIP is a switched mode DIN Rail mounted power supply designed for compact, space-saving industrial power needs. It features a wide input voltage range of 100 V AC to 240 V AC and supplies a stable 28 V DC output at 2.5 A current, delivering a total power of 60 W. The S8VK-X series supports centralized communication and monitoring via EtherNet/IP and Modbus TCP protocols, accessible through a PC with an Ethernet connection.

The unit is engineered for robust industrial environments, with coated printed circuit boards that resist humidity and gases, plus high resistance to vibration (10 Hz - 55 Hz) and shock (150 m/s²). Its compact dimensions (90mm height, 40mm width, 92mm depth) enable side-by-side mounting without fans, making it ideal for equipment racks requiring silent operation and low maintenance.

This power supply includes important protective features such as overload protection that activates between 121% to 160% load to safeguard against short circuits and overcurrent conditions. The device is rated IP20 for ingress protection and certified under various international standards including UL, TUV, EN IEC 61558-2-16, EN IEC 60529, and CE, ensuring compliance with safety and performance norms.

Designed for use in electronics components, power supply systems, industrial automation, and control applications, the device operates reliably across a temperature range of -40°C to 70°C and at altitudes up to 3000 meters. Its energy-efficient 86% efficiency level helps reduce operational costs.

Indicators include a green LED for output status and a red LED alarm for fault detection, enabling quick diagnostics. The S8VK-X06024-EIP is an excellent solution for industrial, manufacturing, HVAC, and laboratory environments where compactness, reliability, and smart monitoring are critical.

Compact, space-saving DIN Rail mount power supply with 60 W output. Wide input voltage range: 100 V to 240 V AC with 50/60 Hz frequency. EtherNet/IP and Modbus TCP communication compatible for remote monitoring. Robust against vibration, shock, humidity, and gases with coated PCBs.

Advanced overload and short circuit protection for device safety. Silent operation with no cooling fan and side-by-side mounting capability. Operating temperature range from -40°C up to 70°C for harsh environments. Certified to UL, TUV, CE, cULus, and multiple IEC standards.

LED indicators for output status and alarms for easy fault detection. Designed for industrial automation, power electronics, and control systems. Explore more power supplies in our Electronics & Electricals category at EnvMart for a broad range of industrial power solutions.
