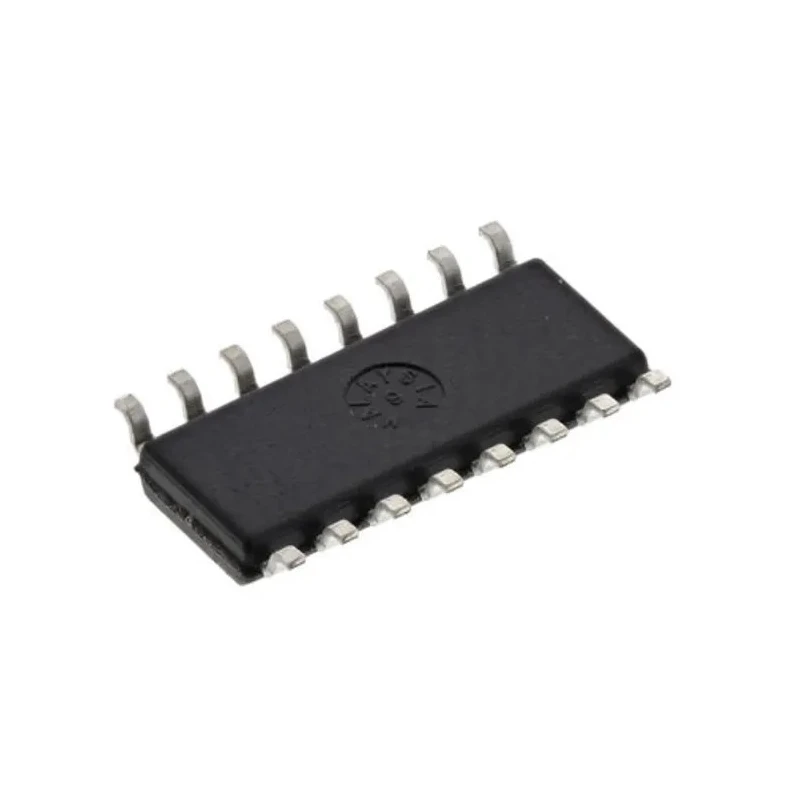

Renesas Electronics ICL3232ECBZ Line Transceiver 3 State Non-Inverting 16-Pin SOIC CMOS TTL IC ICL3232ECBZ
Specifications
| Country of Origin | China |
|---|---|
| Brand | Renesas Electronics |
| Height | 2mm |
| Length | 6.5mm |
| Model | ICL3232ECBZ |
| Width | 10.65mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | ISL32 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | CMOS, TTL |
| Minimum Supply Voltage | 3.5V |
| Maximum Propagation Delay Time @ CL | 0.15μs |
| Supply Current | 3mA |
Key Features
- Operates with a minimum supply voltage of 3.5V and maximum of 5.5V.
- Features 16-pin SOIC surface mount package for compact integration.
- Non-inverting logic output with 3 state capability.
- Suitable for operating temperatures ranging from -40°C to 85°C.
- Low supply current of 3mA ensures power efficiency.
- Maximum propagation delay time at CL is 0.15 microseconds.
- Logic function supports both CMOS and TTL families.
- Package series is ISL32, designed for RS-232 line driver and receiver applications.
Product Description
Renesas Electronics ICL3232ECBZ is a high-performance line transceiver IC designed for RS-232 communication interfaces. It features a 3 state, non-inverting output and is built with CMOS/TTL logic families, ensuring reliable signal transmission in a wide range of industrial and electronic applications.
This device operates over a supply voltage range between 3.5V and 5.5V, making it versatile for various power supply configurations. With a minimum operating temperature of -40°C and maximum of 85°C, it is suitable for demanding environmental conditions commonly found in industrial electronics, telecommunications, and instrumentation.
The compact 16-pin SOIC surface-mounted package supports straightforward assembly on printed circuit boards, contributing to smaller device footprints in electronic system designs. Its low supply current of 3mA aids in energy efficiency, a critical factor for battery-powered or low-power devices.
The line transceiver offers maximum propagation delay times of 0.15 microseconds at CL, facilitating high-speed data communication up to 1 Mbps. Its non-inverting output polarity and 3 state output enable effective control of signal lines and bus sharing.
Physical dimensions are 6.5mm length, 10.65mm width, and 2mm height, allowing easy accommodation in integrated circuit arrays or multi-chip modules. The ISL32 series, to which this model belongs, has been widely used for RS-232 line drivers and receivers with enhanced electrical characteristics and IEC61000 ESD protection.
This product is manufactured in China and adheres to industrial standards, ensuring quality and durability for high-reliability applications in industrial, laboratory, telecommunications, and embedded system domains.
Operates at 3.5V to 5.5V supply voltage range. 16-pin SOIC package with 2mm height. Non-inverting 3 state output logic. Low supply current of 3mA. Operating temperature from -40°C to 85°C. Maximum propagation delay of 0.15 microseconds.
Applicable for RS-232 communication interfaces. Suitable for industrial, laboratory, telecommunications, and embedded electronics. Compact and surface-mountable design. Manufactured according to industrial standards in China.
Explore the full range of Line Interface ICs at EnvMart for dependable and efficient communication solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of 3.5V to 5.5V.
The maximum propagation delay time at CL is 0.15 microseconds.
It has a length of 6.5mm, a width of 10.65mm, and a height of 2mm.
This unit features a non-inverting output with 3 state capability.
It operates within a temperature range of -40°C to 85°C.
The supply current is 3mA, which aids in energy efficiency.
It supports both CMOS and TTL logic families.
This model is packaged in a 16-pin SOIC surface mount package.
The input type is single-ended.
It is suitable for RS-232 communication interfaces in industrial, laboratory, telecommunications, and embedded electronics.
This model belongs to the ISL32 series, designed for line driver and receiver applications.
It is manufactured in China and adheres to industrial standards.
