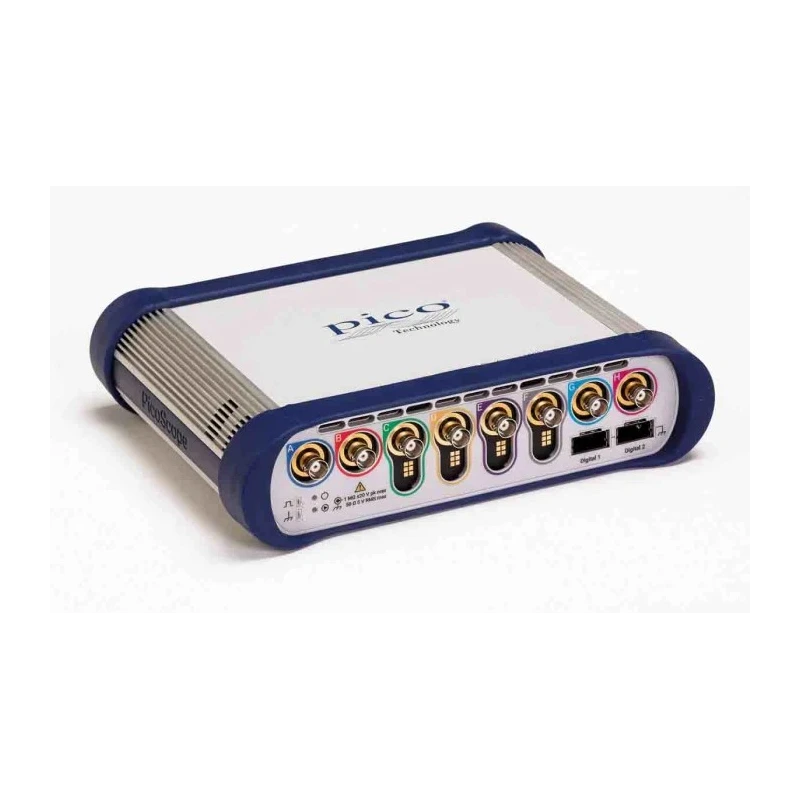

Pico Technology PC Based Oscilloscope 8-Channel 500 MHz Bandwidth, USB Interface PicoScope 6824E

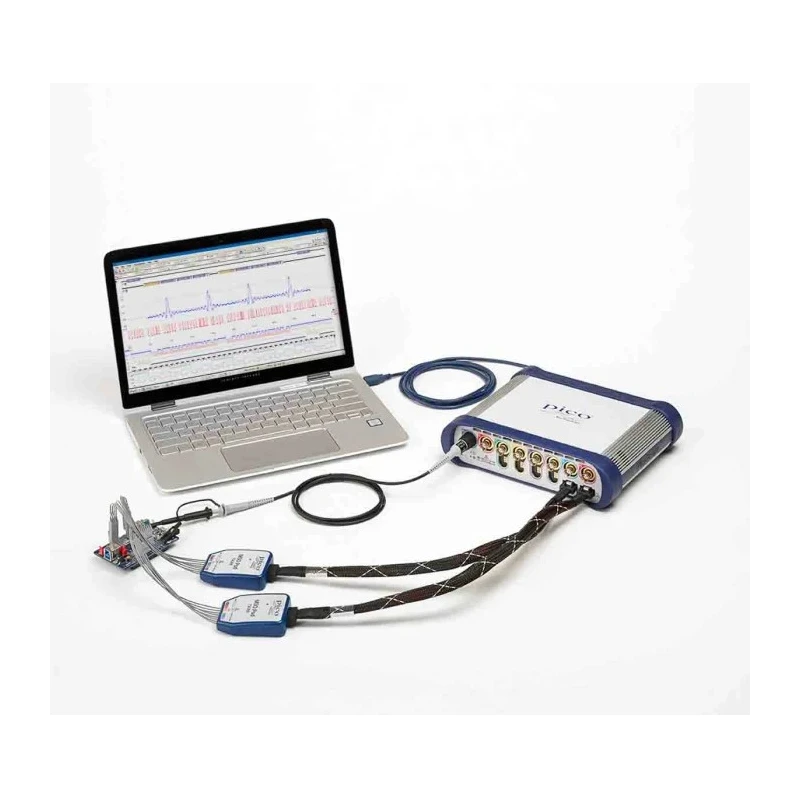

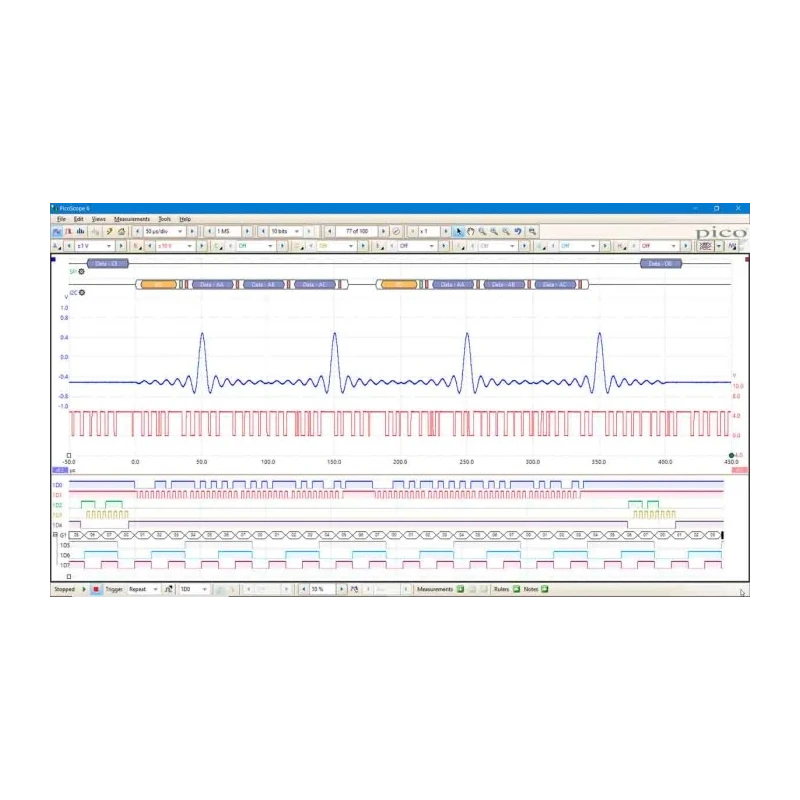

Pico Technology PicoScope 6824E PC Based Oscilloscope 8-Channel 500 MHz bandwidth is a high-performance USB oscilloscope designed for detailed and accurate signal measurement. It features 8 analog input channels, allowing simultaneous tracking of multiple signals. The device connects via USB to a user's PC running PicoScope 6 software, supporting Windows, Mac, and Linux platforms with multi-touchscreen displays.

This oscilloscope offers flexible vertical resolution options of 8, 10, or 12 bits, enabling users to select the appropriate detail level for their applications. With a 500 MHz bandwidth and a sampling rate of 5 GSa/s, it is suited for capturing high-frequency and fast-changing signals accurately.

The unit provides a deep memory capture of up to 4 GS for extended time resolution, segmented by numerous time-stamped triggers. It includes a 50 MHz arbitrary/function generator output, allowing waveform generation directly from the device. Additionally, digital channels (8 or 16) can be enabled through optional MSO pods for mixed signal applications.

Being IP20 rated and designed according to EN 61010-1:2010 standards, the oscilloscope ensures reliable operation within industrial and laboratory environments. Operating temperature ranges from 0 to 40 °C, with overvoltage protection up to ±20 V peak max safeguarding inputs.

Each scope package includes 4x P2056 500 MHz passive probes for comprehensive testing readiness. The compact device measures 245 mm in width, 192 mm in height, and 61.5 mm in depth, weighing 2.2 kg (scope only) or 5.6 kg including carry case, PSU, and cables.

This product is ideal for use in research, development, embedded system design, power electronics, automotive engineering, signal processing, and physics experiments. Features 8 analog channels for multiple simultaneous measurements.

500 MHz bandwidth supports high-frequency signal capture. 5 GSa/s sampling rate provides precise signal analysis. Deep memory of up to 4 GS for high timing resolution. 50 MHz arbitrary/function generator included. Supports optional 8 or 16 digital channels with MSO pods.

Compatible with Windows, Mac, and Linux via PicoScope 6 software. Includes 4x P2056 passive probes for immediate deployment. Robust design with IP20 rating and EN 61010-1:2010 compliance. Overvoltage protection of ±20 V peak max for input safety.
