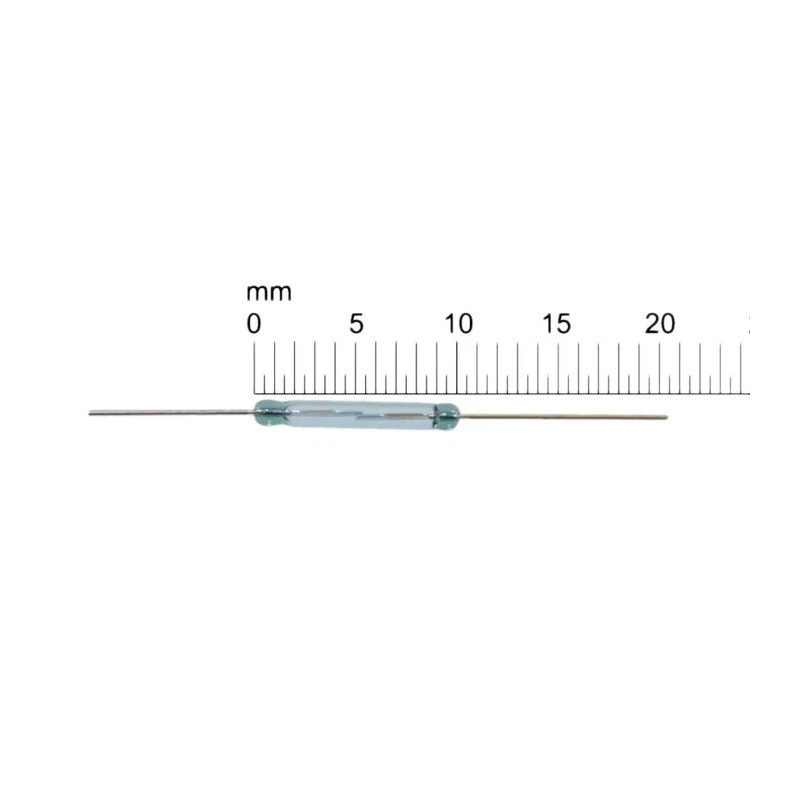

Assemtech SPST-NO PCB Reed Switch 500 mA 200 V AC/DC RI-60B

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPST-NO PCB Reed Switch 500 mA 200 V AC/DC RI-60B

Name: Assemtech SPST-NO PCB Reed Switch 500 mA 200 V AC/DC RI-60B
Brand: Assemtech
SKU: 272483
Price: 171.18 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Netherlands
Brand	Assemtech
Length	10mm
Model	RI-60B
Width	1.8mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	500mA
Maximum Operating Temperature	125°C
Contact Configuration	SPST-NO
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	2Ω
Maximum Switching Power	10W
Standards/Approvals	ISO
Maximum Switching Voltage	200V ac/dc
Maximum Release Time	20μs
Operating Time Including Bounce	0.15ms
AT Value Range	15 to 20 AT

Key Features

Features a single-pole, single-throw normally open (SPST-NO) contact configuration.
Capable of switching up to 500 mA current and 200 V AC/DC voltage.
Contact resistance is low at 2 Ω with ruthenium on gold plating.
Operating temperature range from -55°C to 125°C.
Hermetically sealed glass envelope enhances durability and reliability.
Compact size with 10 mm length and 1.8 mm width enables PCB integration.
Fast switching with maximum release time of 20 μs and bounce time of 0.15 ms.
Wire terminal and PCB mount type for straightforward installation.

Product Description

Assemtech RI-60B SPST-NO PCB Reed Switch is a precision electrical switching device designed to handle a maximum current of 500 mA and voltage up to 200 V AC/DC, making it ideal for PCB mounting in industrial and automation systems. The reed switch is hermetically sealed in a gas-filled glass envelope, offering enhanced protection against environmental factors and providing reliable contact performance over an extended mechanical life rated at 10^8 operations.

The device uses ruthenium on gold-plated contacts to minimize contact resistance, rated at 2 Ω, which ensures stable signal transmission and reduces wear. Its compact size, measuring 10 mm in length and 1.8 mm in width, allows for efficient PCB layout without sacrificing durability.

This switch operates with a single-pole, single-throw normally open (SPST-NO) contact configuration, suitable for various switching requirements triggered by magnetic fields through permanent magnets or electromagnetic coils. Its rapid switching capability includes a maximum release time of 20 microseconds and an operating time including bounce of only 0.15 milliseconds, ensuring precise control in automation and sensing applications.

The RI-60B is rated to operate within a temperature range of -55°C to 125°C, making it suitable for use in harsh industrial, laboratory, and electrical settings. Its wire terminal type and PCB mount configuration simplify installation and maintenance.

This reed switch complies with ISO standards for performance and quality assurance. Manufactured in the Netherlands, underscoring its high production standards. Commonly used in electronics, industrial automation, instrumentation, and control systems requiring reliable, low-power signal switching.

The sealed glass envelope eliminates contamination and erosion from external atmospheres, ensuring longevity and consistent operation.

For professionals seeking a dependable and precise Reed Switch for PCB applications, the Assemtech RI-60B offers an ideal combination of size, performance, and durability. Explore EnvMart’s extensive catalog for additional Assemtech switches and related electronic components.
