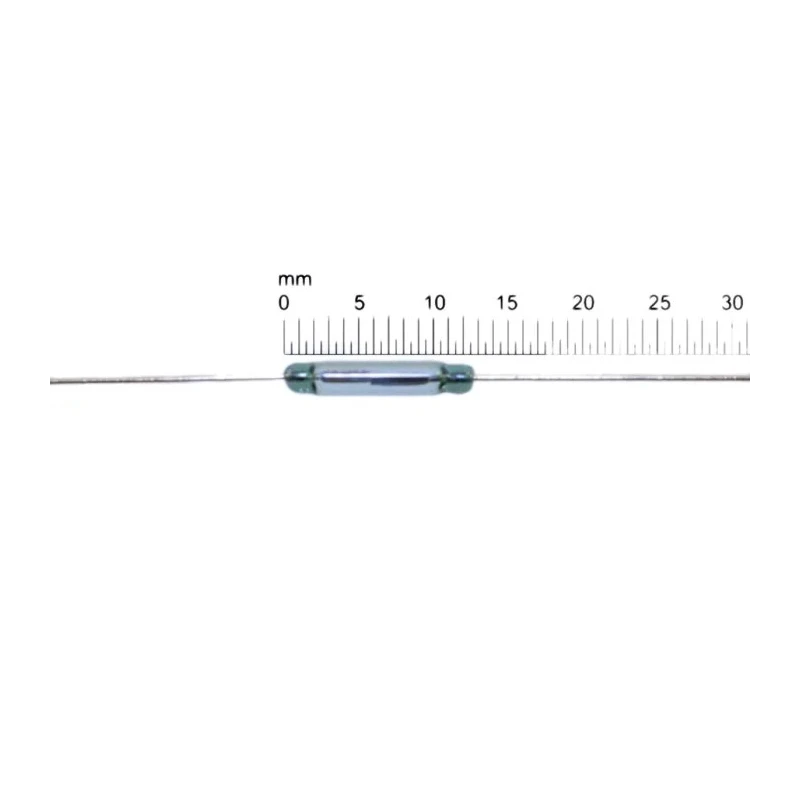

Assemtech SPST-NO PCB Reed Switch 500 mA 200 V RI-27A

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPST-NO PCB Reed Switch 500 mA 200 V RI-27A

Name: Assemtech SPST-NO PCB Reed Switch 500 mA 200 V RI-27A
Brand: Assemtech
SKU: 272482
Price: 141.84 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Netherlands
Brand	Assemtech
Length	13.5mm
Model	RI-27A
Width	1.8mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	500mA
Maximum Operating Temperature	125°C
Contact Configuration	SPST-NO
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	115mΩ
Maximum Switching Power	10W
Standards/Approvals	ISO
Maximum Switching Voltage	200V
Maximum Release Time	30μs
Operating Time Including Bounce	0.25ms
AT Value Range	20 to 34 AT
Assemtech SPST-NO PCB Reed Switch 500 mA 200 V ac/dcBrand	Assemtech

Key Features

Features a single pole, single throw normally open contact configuration.
Maximum switching power rating of 10 W ensures reliable performance.
Constructed with ruthenium on gold contact material for enhanced conductivity.
Hermetically sealed in a gas-filled glass envelope for durability and protection.
Operates over a wide temperature range from -55°C to 125°C.
Compact dimensions with a length of 13.5 mm and width of 1.8 mm.
Fast operating time of 0.25 ms including bounce for responsive switching.
Designed for PCB mount with wire terminal type.

Product Description

Assemtech RI-27A SPST-NO PCB Reed Switch is a precision electromechanical component designed for reliable switching in electronics and industrial applications. This reed switch features a single pole, single throw normally open contact arrangement, allowing it to control circuits with a maximum switching current of 500 mA and a maximum switching voltage of 200 V.

The switch contacts are ruthenium plated on gold, providing excellent electrical conductivity and resistance to wear. The device is hermetically sealed within a gas-filled glass envelope, ensuring long service life and excellent resistance to environmental factors, suitable for demanding industrial, manufacturing, and automation uses.

The RI-27A model supports fast response times with an operating time including bounce of 0.25 ms and a maximum release time of 30 microseconds, making it suitable for applications requiring rapid switching. Its compact size, measuring 13.5 mm in length and 1.8 mm in width, allows it to be easily integrated onto printed circuit boards. The switch uses wire terminals and is meant for PCB mounting.

Operating across a temperature range from -55°C to 125°C, this reed switch is robust for a variety of environments including industrial automation, HVAC controls, and instrumentation devices. Compliance with ISO standards reflects its quality and reliability.

Features a single pole, single throw normally open contact configuration. Maximum switching power rating of 10 W ensures reliable performance. Constructed with ruthenium on gold contact material for enhanced conductivity.

Hermetically sealed in a gas-filled glass envelope for durability and protection. Operates over a wide temperature range from -55°C to 125°C. Compact dimensions with a length of 13.5 mm and width of 1.8 mm. Fast operating time of 0.25 ms including bounce for responsive switching.

Designed for PCB mount with wire terminal type. Compliance with ISO standards ensures quality and reliability. Manufactured in the Netherlands with high industrial standards.

This Assemtech RI-27A reed switch is ideal for use in industrial, electrical, automation, and electronics projects requiring precise and reliable switching. Explore similar high-quality Reed Switches and other electronic components in the EnvMart catalog for your technical needs.
