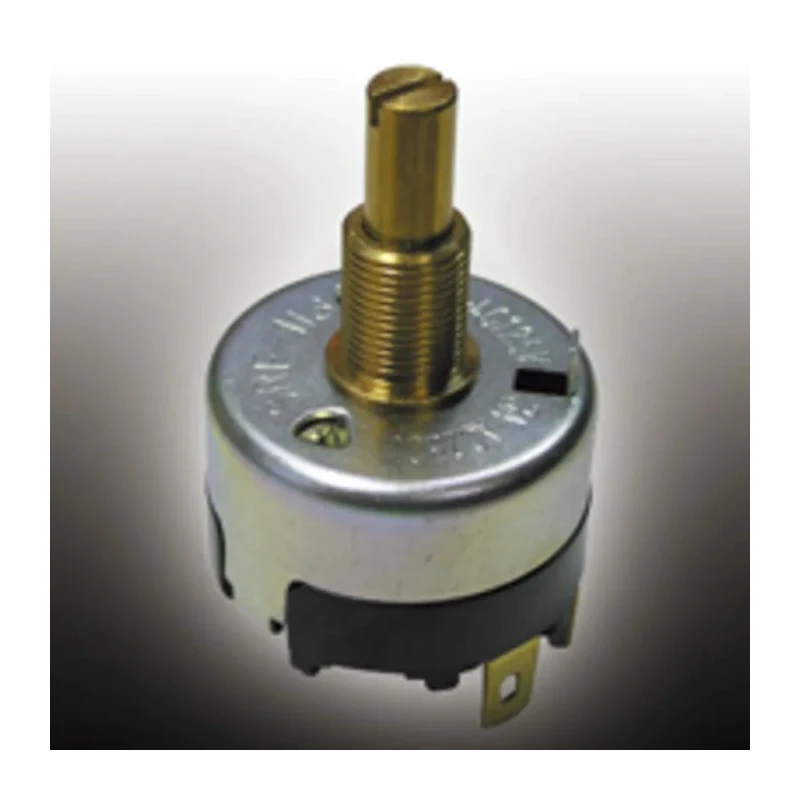

Nidec Components SRF Series SP3T Rotary Switch 6A, 250V AC, Latching, Panel Mount, Solder Terminals

Nidec Components SRF113-Z SP3T Rotary Switch is a precision electro-mechanical switch intended for electrical and automation applications requiring reliable switching performance up to 6 amperes and 250 volts AC. Featuring a single pole triple throw contact configuration, this latching switch offers robust control in panel-mounted installations.

Constructed with a silver actuator for enhanced visibility, the switch operates with a 45-degree angle of throw, offering precise switching positions ideal for varied industrial and commercial applications. With a panel mount design and solder type terminals, installation and connectivity are straightforward for PCB or wiring harness setups.

The SRF series is RoHS compliant, assuring adherence to environmental and safety regulations. The rotary switch's dimensions - 28 mm diameter and 39.5 mm height and depth - make it compact for integration in limited spaces. It boasts a mechanical endurance of 5000 cycles, indicative of dependable lifetime performance.

Typical use cases include electrical control panels, automation equipment, instrumentation, and applications in manufacturing or HVAC controls where precise, reliable switch actuation is critical.

The rotary switch features a SP3T (Single Pole Triple Throw) contact configuration. It supports a maximum switch contact current of 6 amperes. The switch operation is latching for stable positional locking. Designed for panel mounting with solder terminal type connections.

The actuator color is silver with a 45-degree angle of throw. Mechanical life rating is 5000 cycles ensuring durability. The switch diameter and height are both 39.5 mm. The product complies with RoHS environmental standards.

Maximum AC voltage rating is 250 volts AC for safe operation. Manufactured in China under strict quality control. Explore the full range of Rotary Switches and electrical components in the Electronics & Electricals category at EnvMart for industrial-grade equipment solutions.
