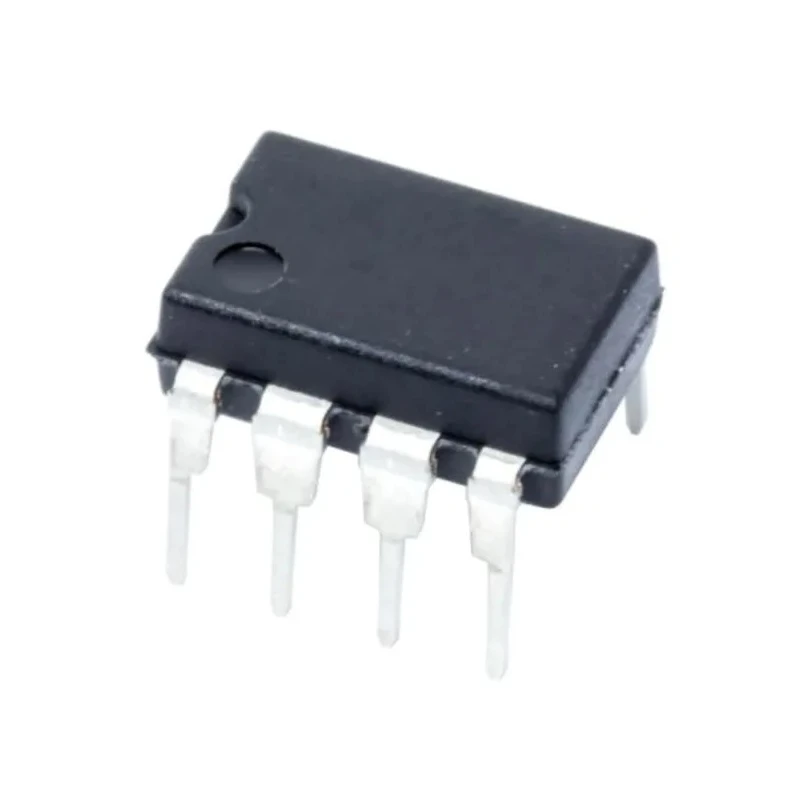

Texas Instruments Operational Amplifier 55 MHz 17V 8-Pin PDIP LME49720NA/NOPB
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 10.16mm |
| Model | LME49720NA/NOPB |
| Width | 8.26mm |
| Mount Type | Through Hole |
| Series | LME49720 |
| Output Current | 26mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 17V |
| Minimum Supply Voltage | 34V |
| GBP - Gain Bandwidth Product | 55MHz |
| Input Bias Current | 72 nA |
| Vos - Input Offset Voltage | 0.7 mV |
| Slew Rate | 20V/μs |
| Input Offset Current | 65 nA |
Key Features
- High gain bandwidth product of 55 MHz enables efficient signal amplification.
- Dual channel design with 2 channels for versatile applications.
- Wide operating temperature range from -40°C to 85°C provides reliability.
- Slew rate of 20 V/μs for fast signal response.
- Low input offset voltage of 0.7 mV ensures accurate performance.
- Input bias current of 72 nA supports precision circuits.
- Maximum supply voltage rating of 17 V for robust power handling.
- Standard 8-pin PDIP package allows easy through-hole mounting.
Product Description
Texas Instruments LME49720NA/NOPB is a high-performance operational amplifier designed for a wide range of analog signal processing applications. Featuring a gain bandwidth product of 55 MHz, this dual-channel amplifier delivers fast and precise amplification suitable for audio, instrumentation, and control systems. Its slew rate of 20 V/μs ensures rapid response to input signal changes.
This device operates reliably across temperatures from -40°C to 85°C and supports supply voltages up to 17 V, making it suitable for industrial and commercial electronics environments. The package is an 8-pin PDIP allowing easy integration into through-hole circuit designs.
The input offset voltage is low at 0.7 mV, supporting precision measurement and control tasks. Input bias current is minimal at 72 nA, which reduces noise and drift in sensitive circuits. Output current of up to 26 mA further expands its versatility in driving moderate loads.
Designed to meet RoHS standards, the LME49720NA/NOPB ensures compliance with environmental regulations. Manufactured in the Philippines, the product reflects Texas Instruments' commitment to quality.
This operational amplifier is ideal for applications in industrial instrumentation, laboratory equipment, audio amplification, and general analog signal processing. It is suitable for use in power and connector electronics, semiconductor amplification, and other demanding electronic component uses.
High bandwidth and slew rate for fast and accurate amplification. Dual channel offers design flexibility. Wide temperature range supports industrial environments. Standard PDIP package for easy prototyping and production.
Low offset voltage and bias current for precision applications. Explore more high-quality semiconductor amplifiers and Operational Amplifiers on EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 55 MHz, enabling efficient signal amplification.
The maximum supply voltage rating for the LME49720NA/NOPB is 17 V, allowing for robust power handling in various applications.
It operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for industrial environments.
The slew rate is 20 V/μs, ensuring a fast response to input signal changes.
This model features a dual-channel design, providing versatility for various applications.
The input offset voltage is low at 0.7 mV, which supports accurate performance in precision applications.
The input bias current is 72 nA, which helps reduce noise and drift in sensitive circuits.
The dimensions are 10.16 mm in length, 8.26 mm in width, and 5.08 mm in height.
It comes in a standard 8-pin PDIP package, allowing for easy through-hole mounting.
The LME49720NA/NOPB can provide an output current of up to 26 mA, which expands its versatility in driving moderate loads.
Yes, this operational amplifier is designed to meet RoHS standards, ensuring compliance with environmental regulations.
The operational amplifier is manufactured in the Philippines, reflecting the brand's commitment to quality.
