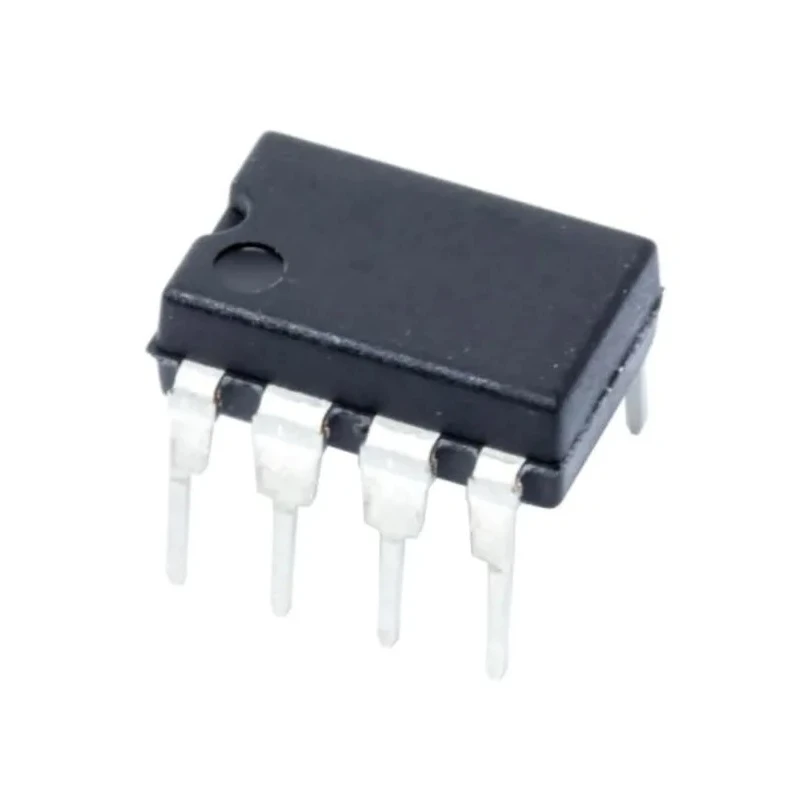

Texas Instruments Operational Amplifier 55 MHz 8-Pin 17V PDIP LME49720NA/NOPB

Texas Instruments LME49720NA/NOPB is a dual operational amplifier designed with a high gain bandwidth product of 55 MHz. Packaged in an 8-pin 17V PDIP, it is engineered for precision and high-frequency analog applications requiring reliable and stable performance.

Its through-hole mount type facilitates easy installation on standard PCBs. The device operates comfortably within a supply voltage range supporting up to 17V maximum and a minimum supply voltage of 34V. Such specifications enable usage in a variety of electronic circuits needing efficient signal amplification.

Featuring a minimal input offset voltage of 0.7 mV and a low input bias current of 72 nA, this operational amplifier delivers excellent accuracy, suitable for sensitive analog instrumentation and signal conditioning applications. The device ensures rapid response with a slew rate of 20 V/μs, maintaining signal integrity for fast-changing input signals.

Designed for industrial and commercial applications, it functions reliably across a wide temperature range from -40°C to 85°C. The output current capability of 26 mA allows driving several loads efficiently. Compliance with RoHS standards confirms that the product meets environmental regulations, enhancing sustainability in manufacturing and disposal.

Its dimensions, 10.16 mm length, 8.26 mm width, and 5.08 mm height, provide a compact footprint, enabling integration into densely populated circuits. Manufactured in Malaysia, the product ensures quality and consistent performance meeting global standards.

Features a gain bandwidth product of 55 MHz for high-speed signal processing. Includes two channels in a compact 8-pin PDIP package suitable for through-hole mount. Operates within a supply voltage range up to 17V and supports minimum supply voltage of 34V.

Exhibits a low input offset voltage of 0.7 mV and low input bias current of 72 nA for accurate amplification. Designed to operate from -40°C to 85°C temperature range for robustness in varying environments. Offers a slew rate of 20 V/μs ensuring fast response to input signal changes.

Output current capability of 26 mA, supporting a wide range of applications. Compliant with RoHS standards ensuring environmental safety. Manufactured in Malaysia ensuring high-quality production standards.

Ideal for use in industrial electronics, communications, instrumentation, and other high-performance applications requiring stable and precise analog signal amplification. Browse more Operational Amplifiers and semiconductor products in EnvMart for enhanced electronic system designs.
