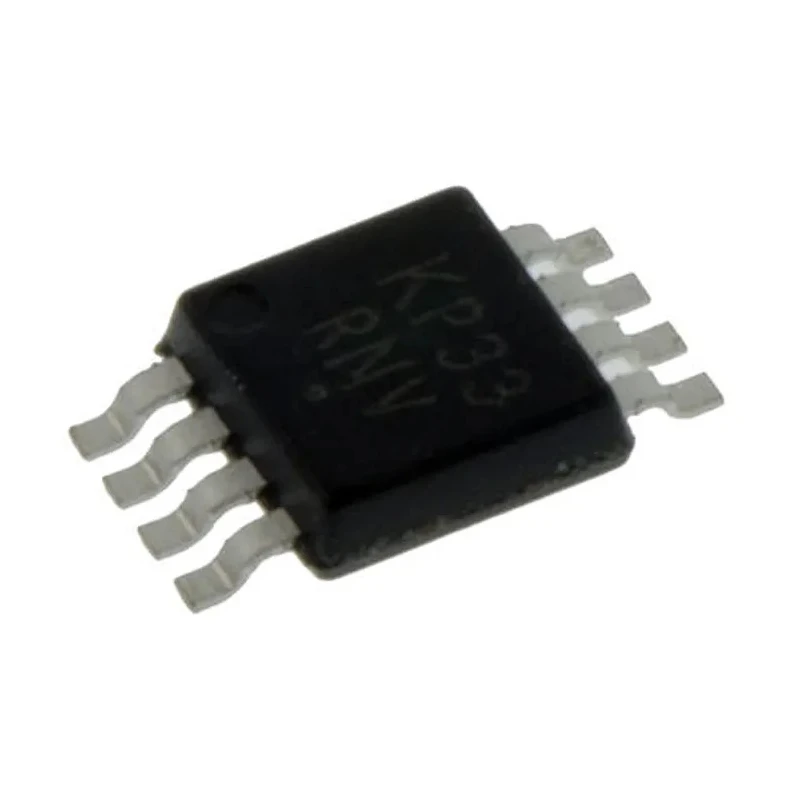

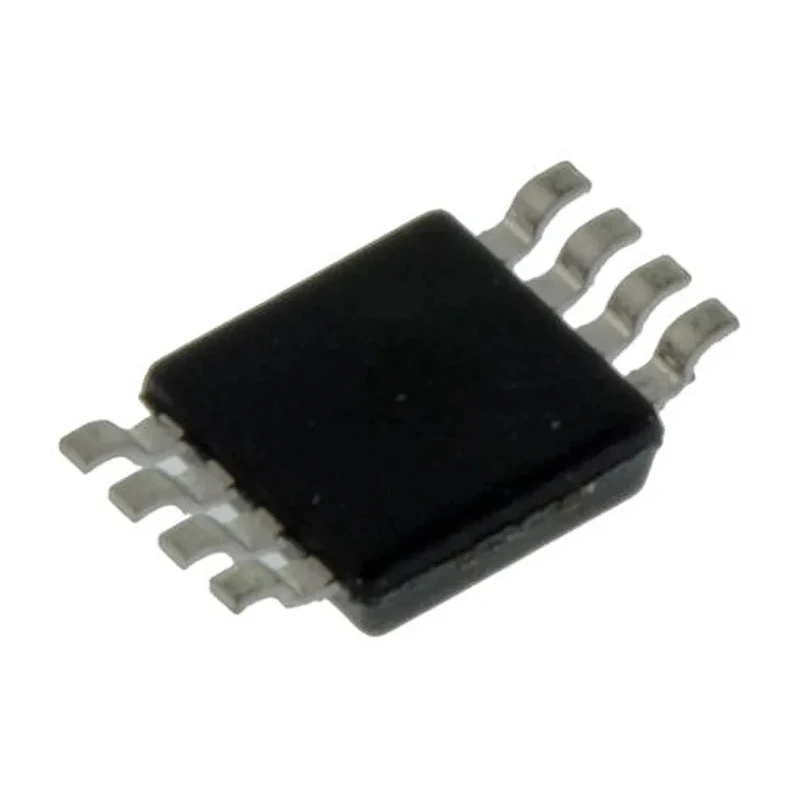

onsemi Operational Amplifier 3.2 MHz Gain Bandwidth, 8-Pin TSSOP, 2.7-36V Supply NCS20072DTBR2G
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | onsemi |
| Height | 1.1mm |
| Length | 3.1mm |
| Model | NCS20072DTBR2G |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | NCS20072 |
| Output Current | 70mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 3.2MHz |
| Input Bias Current | 1500 pA |
| Vos - Input Offset Voltage | ±4 mV |
| Slew Rate | 2.8V/μs |
| Input Offset Current | 1000 pA |
| Low supply current | 405 μA per channel |
Key Features
- Offers a wide supply voltage range from 2.7 V to 36 V.
- Single channel operation with 70 mA output current capability.
- Provides low input bias current of 1500 pA and low supply current of 405 μA per channel.
- Features a high slew rate of 2.8 V/μs and low input offset voltage of ±4 mV.
- Designed for automotive applications conforming to AEC-Q100 standard.
- Operates reliably in temperatures ranging from -40°C to 125°C.
- Compact dimensions of 3.1 mm length, 4.5 mm width, and 1.1 mm height.
- RoHS compliant ensuring environmental safety.
Product Description
onsemi NCS20072DTBR2G is a precision operational amplifier designed for use in demanding industrial, automotive, and electronic applications. It features a gain bandwidth product of 3.2 MHz, suitable for amplifying signals with high fidelity and linearity.
Encased in an 8-pin Thin Shrink Small Outline Package (TSSOP), this surface-mount device provides a compact footprint ideal for space-constrained printed circuit boards. It supports a wide power supply range from 2.7 V to 36 V, enabling versatility in various power environments.
The operational amplifier offers single channel operation with a maximum output current of 70 mA, complemented by a low supply current of 405 μA per channel, optimizing power efficiency. It exhibits a high slew rate of 2.8 V/μs and a low input offset voltage of ±4 mV, making it suitable for high-speed and precision applications.
With an operating temperature range from -40°C to 125°C, the NCS20072DTBR2G meets the automotive AEC-Q100 standard, ensuring reliability under harsh conditions. Input bias current is minimal at 1500 pA, and input offset current is 1000 pA, further enhancing signal accuracy.
Compact size with dimensions: 3.1 mm length, 4.5 mm width, 1.1 mm height. The device complies with RoHS standards, supporting environmentally responsible manufacturing. Dual rail-to-rail output facilitates full utilization of the supply voltage range for improved dynamic range.
This operational amplifier is widely applicable in industrial control systems, automotive electronics, signal conditioning in measurement instruments, and consumer electronics requiring dependable and precise analog signal amplification.
EnvMart offers this onsemi Operational Amplifier for customers seeking cutting-edge semiconductor solutions tailored for performance and efficiency in professional electronic design and manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the NCS20072DTBR2G is 3.2 MHz, making it suitable for amplifying signals with high fidelity and linearity.
This operational amplifier has a maximum output current capability of 70 mA, allowing it to drive various loads effectively.
The dimensions of this model are 3.1 mm in length, 4.5 mm in width, and 1.1 mm in height, making it compact for space-constrained applications.
The input bias current is 1500 pA, which helps enhance the accuracy of signal amplification.
It operates reliably in temperatures ranging from -40°C to 125°C, suitable for automotive and industrial applications.
The input offset voltage for this operational amplifier is ±4 mV, contributing to its precision in signal processing.
The slew rate is 2.8 V/μs, allowing for fast signal changes and improved performance in high-speed applications.
Yes, it conforms to the AEC-Q100 standard, ensuring reliability for automotive applications.
The NCS20072DTBR2G is encased in an 8-pin Thin Shrink Small Outline Package (TSSOP), ideal for surface mounting.
The supply current is low at 405 μA per channel, optimizing power efficiency in applications.
It is widely applicable in industrial control systems, automotive electronics, and signal conditioning in measurement instruments.
