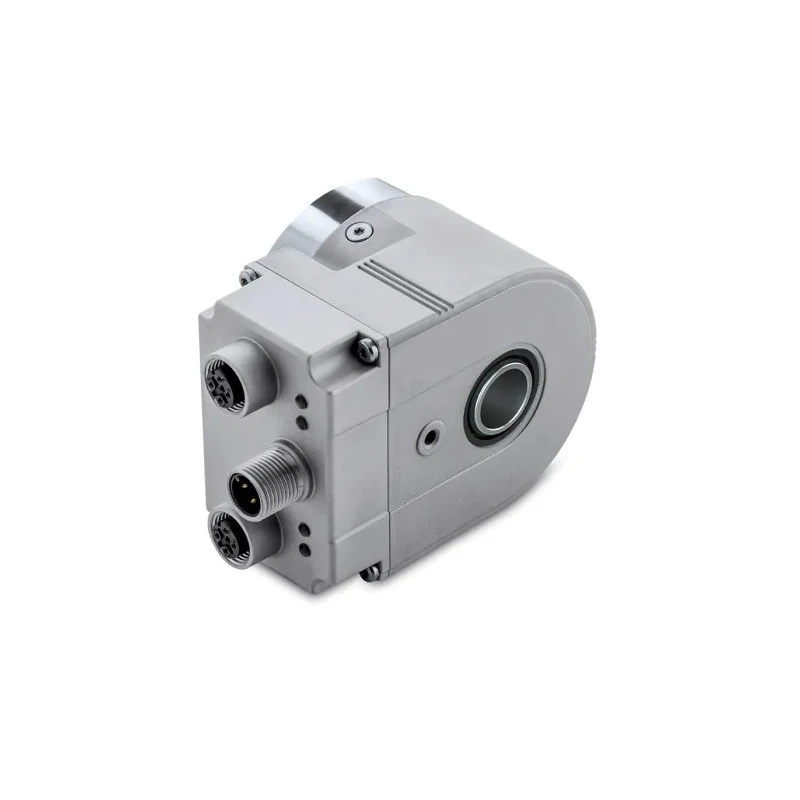

Baumer Optical Absolute Encoder Hollow Shaft Flange Mount 30V, Ethernet IP Signal, 12 mm Shaft EAL580

Free Delivery in India | Lowest Global Shipping Charges

Baumer Optical Absolute Encoder Hollow Shaft Flange Mount 30V, Ethernet IP Signal, 12 mm Shaft EAL580

Name: Baumer Optical Absolute Encoder Hollow Shaft Flange Mount 30V, Ethernet IP Signal, 12 mm Shaft EAL580
Brand: Baumer
SKU: 261670
Price: 1162.65 USD
Availability: InStock



Category Optical Encoder Brand Baumer Condition New

Specifications

Country of Origin	Germany
Brand	Baumer
Model	EAL580
IP Rating	IP65
Mount Type	Hollow Shaft Flange Mount
Series	EAL580
Overall Width	58mm
Maximum Operating Temperature	85°C
Max. Resolution	single turn 18 bit, multiturn 16 bit
Minimum Operating Temperature	-40°C
Shaft Diameter	12mm
Overall height	90.9mm
Shaft Type	Hollow
Terminal type	M12 Flange Connector
Interface Type	Ethernet/IP
Standards/Approvals	UL
Maximum Supply Voltage	30V
Overall Depth	59mm
Encoder Technology	Optical
Maximum Revolutions	6000rpm
Output Signal Type	Ethernet IP

Key Features

This encoder has a hollow shaft flange mount design suitable for versatile industrial applications.
It provides a maximum speed of 6000 rpm for accurate motion detection.
The optical sensing offers high resolution with single turn 18 bit and multiturn 16 bit capability.
Rated IP65 for dust and water resistance, allowing use in harsh environments.
Equipped with M12 flange connector for secure Ethernet/IP interface connections.
Operating temperature range from -40°C to 85°C supports various industrial climates.
Complies with UL standards ensuring product safety and reliability.
Compact dimensions of 90.9 mm height, 58 mm width, and 59 mm depth enable installation in limited spaces.

Product Description

Baumer EAL580 Optical Absolute Encoder (model EAL580) is engineered for high performance in industrial automation and motion control environments. It operates at a maximum supply voltage of 30V and delivers precise position feedback via Ethernet IP output signal. The hollow shaft flange mount design with a 12 mm diameter shaft enhances flexibility for various mechanical integrations.

This encoder supports up to 6000 rpm rotational speed and features an optical sensing mechanism with a maximum single turn resolution of 18 bits and multiturn resolution of 16 bits, ensuring detailed and accurate positioning data. Its IP65 rating protects against dust ingress and water jets, making it suitable for demanding industrial applications.

The device uses a robust M12 flange connector to interface with Ethernet/IP systems, designed to maintain reliable communication in automated equipment. It functions reliably between -40°C and 85°C, suitable for extreme ambient conditions found in manufacturing, processing, and industrial automation sectors.

Constructed to UL standards and made in Germany, this absolute encoder assures long-lasting performance and compliance with safety requirements. Its precise compact form factor (90.9 mm height, 58 mm width, 59 mm depth) allows easy mounting in constrained environments while delivering excellent operational stability and signal integrity.

Hollow shaft flange mount encoder with 12 mm diameter shaft. Maximum operational speed of 6000 rpm. Optical absolute encoder with 18 bit single turn and 16 bit multiturn resolution. Ethernet IP output signal type via M12 flange connector.

IP65 rated for dust and splash water protection. Operating temperature range from -40°C to 85°C. Certified to UL standards for safety compliance. Compact dimensions and robust industrial design.

This encoder is widely applied in industrial automation, manufacturing, robotics, packaging, and process control where accurate motion feedback and reliable Ethernet communication are critical. Explore more sensors and motion control devices in the Baumer product line and find tailored solutions for your automation needs at EnvMart.

Explore more products in our Optical Encoder category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The EAL580 encoder has a maximum operating speed of 6000 rpm, allowing for precise motion detection in industrial applications.

This model offers a maximum single turn resolution of 18 bits and a multiturn resolution of 16 bits, ensuring detailed and accurate positioning data.

It features a hollow shaft flange mount design, which enhances flexibility for various mechanical integrations in industrial settings.

The encoder is rated IP65, providing protection against dust ingress and water jets, making it suitable for harsh environments.

This encoder operates effectively within a temperature range of -40°C to 85°C, accommodating various industrial climates.

It provides an Ethernet/IP output signal type via an M12 flange connector, ensuring reliable communication in automated systems.

The encoder has compact dimensions of 90.9 mm in height, 58 mm in width, and 59 mm in depth, allowing for installation in limited spaces.

The shaft diameter of the EAL580 encoder is 12 mm, suitable for various mechanical applications.

This encoder complies with UL standards, ensuring safety and reliability in its operation.

The EAL580 encoder is manufactured in Germany, reflecting high engineering standards.

It is equipped with an M12 flange connector for secure Ethernet/IP interface connections, facilitating easy integration into systems.

This encoder is widely applied in industrial automation, manufacturing, robotics, packaging, and process control where accurate motion feedback is critical.
