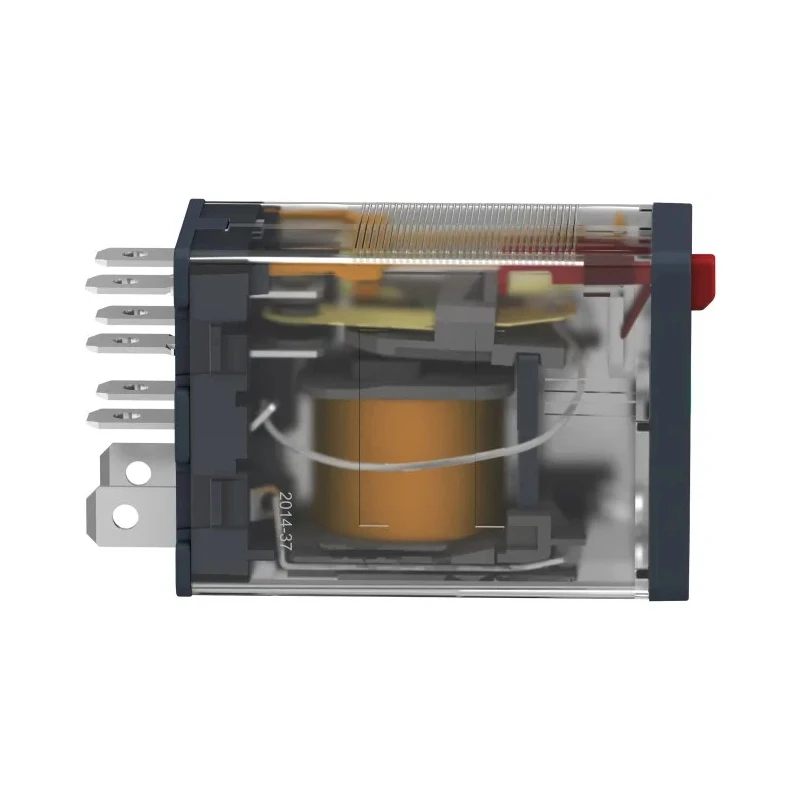

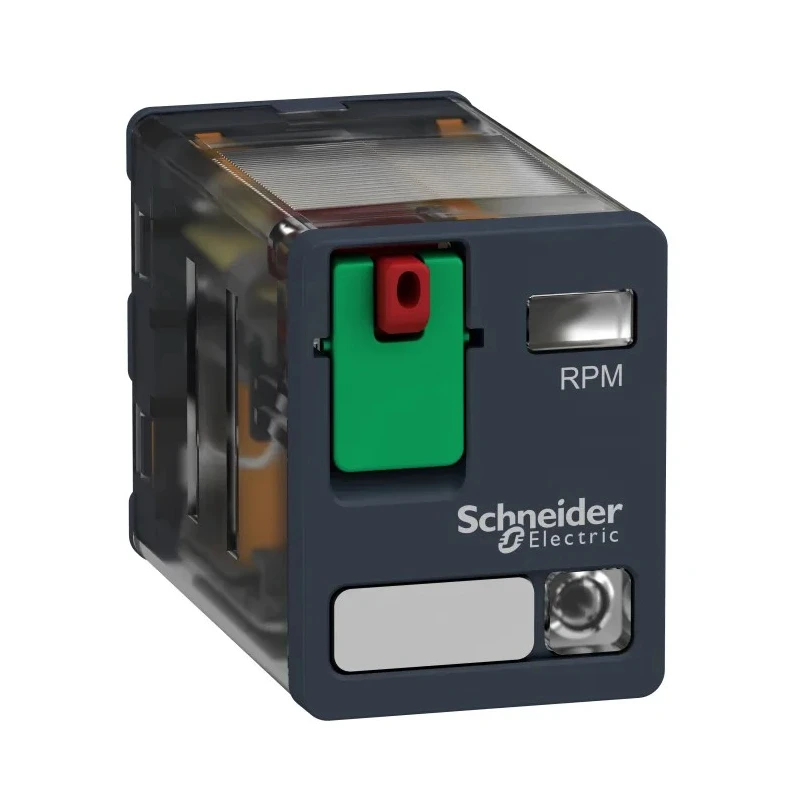

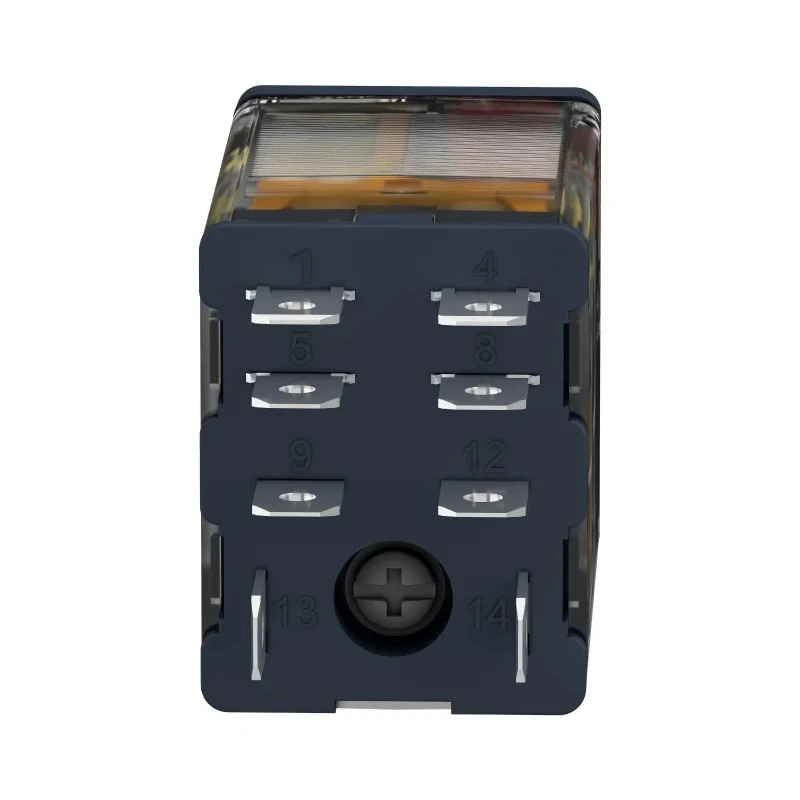

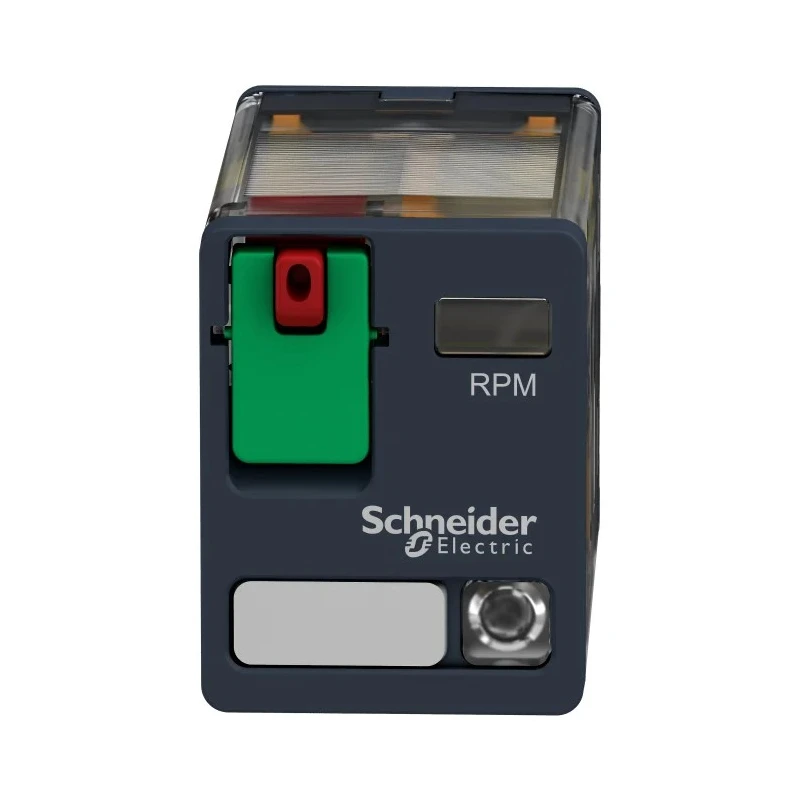

Schneider Electric Panel Power Relay 230V AC Coil 15A Switching Current DPDT Harmony RPM22P7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RPM22P7 |
| Width | 47mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RP |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 15A |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| Coil Resistance | 16.3kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 28V ac |
| Coil Power | 1.1W |
Key Features
- This power relay belongs to the Harmony RP series and is designed for panel mounting.
- It includes a plug-in terminal type for easy installation.
- The relay supports switching both AC and DC voltages up to 28V.
- It operates reliably across a temperature range from -40°C to 55°C.
- The coil resistance measures 16.3kΩ with power consumption at 1.1W.
- Silver alloy contacts ensure durable and effective electrical conduction.
- The relay is RoHS compliant, ensuring environmental safety and regulatory compliance.
- Includes LED indicators for clear status display day and night.
Product Description
Schneider Electric RPM22P7 is a panel power relay designed with a 230V AC coil and a 15A switching current capability featuring a DPDT (double poles double throw) contact configuration. This relay is part of the Harmony RP series, providing robust performance and flexibility for industrial automation and electrical control systems.
The plug-in terminal type allows easy and secure mounting on panels, reducing installation time and enhancing machine reliability. It supports switching of both AC and DC voltages up to 28V, making it adaptable for various control and signal applications.
Operational from -40°C to 55°C, this relay is suitable for demanding industrial environments. The coil resistance of 16.3kΩ and coil power rating of 1.1W ensure efficient energy consumption. The relay uses silver alloy contacts known for their durability and excellent conduction properties.
Its compact size with dimensions of 47mm in width, 27mm in height, and 21mm in length facilitates space-saving enclosure designs. This RPM22P7 relay complies with RoHS standards, ensuring it meets environmental and safety regulations.
The device also features a built-in LED indicator, providing a clear visual signal of relay status at any time, aiding maintenance and operational monitoring in industrial, manufacturing, HVAC, and automation control setups.
This panel power relay fits perfectly in industrial automation systems requiring reliable switching of electrical circuits. Its DPDT contact design allows switching of two separate circuits simultaneously, optimizing control functions.
The plug-in mounting type and compact dimensions allow integration into tight spaces on control panels and assemblies. Robust operational temperature range makes it ideal for factory environments with variable conditions.
RoHS compliance demonstrates commitment to sustainable and environmentally-conscious manufacturing. Silver alloy contacts extend relay lifespan and reduce maintenance frequency. The LED status indicator facilitates real-time device monitoring, enhancing operational safety.
Explore the Electronics & Electricals category at EnvMart for reliable Power Relays from Schneider Electric and related industrial control devices for enhanced automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 15A.
This model operates with a coil voltage of 230V AC.
It operates reliably across a temperature range from -40°C to 55°C.
The relay features a DPDT (double poles double throw) contact configuration.
The coil resistance measures 16.3kΩ.
The contacts are made from silver alloy, known for effective electrical conduction.
It is designed for panel mounting and includes a plug-in terminal type for easy installation.
It supports switching both AC and DC voltages up to 28V.
Yes, it is RoHS compliant, ensuring environmental safety and regulatory compliance.
The dimensions are 47mm in width, 27mm in height, and 21mm in length.
The coil power consumption is rated at 1.1W.
This relay is suitable for industrial automation, electrical control systems, and HVAC applications.
