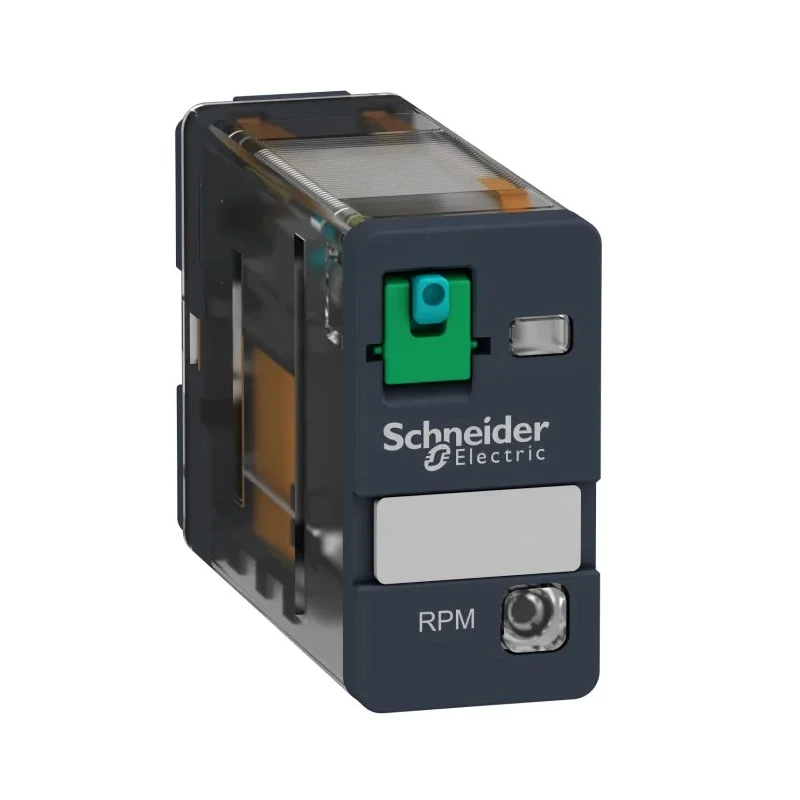

Schneider Electric Panel Power Relay 12V dc Coil 15A Switching Current SPDT RPM12JD

Schneider Electric RPM12JD panel power relay is an electromechanical device engineered for precise switching functions in industrial, electrical automation, and control panel applications. It features a coil voltage of 12V dc, suitable for low voltage control circuits, and provides a switching current capacity of up to 15A with SPDT (Single Pole Double Throw) contact configuration, allowing selection between two circuits.

This relay is constructed with silver alloy contact materials, enhancing conductivity and wear resistance, ideal for frequent switching cycles in manufacturing and HVAC systems. The plug-in terminal type facilitates easy installation and maintenance within panel assemblies. The device supports switching voltages of 28V dc and 250V ac, offering versatility in both DC and AC circuits.

The operating temperature range from -40°C to +55°C enables reliable performance in diverse industrial environments, including outdoor and harsh conditions. The compact physical dimensions (14mm length, 27mm height, 43mm width) allow it to fit efficiently within control panels without occupying excessive space.

Energy efficiency is maintained with a coil resistance of 115Ω and coil power consumption of 1.1W. The relay complies with RoHS standards, confirming environmental compliance and safe material use.

The RPM12JD belongs to the Harmony Relay RP series, recognized for its dependability in automation and electrical control scenarios. It is intentionally designed to serve industries such as manufacturing, electrical distribution, building automation, and HVAC control systems.

Set contains a single Schneider Electric RPM12JD Panel Power Relay, ready for integration into electrical panels and automation equipment. Manufactured in China, it represents global quality standards in relay technology.

Coil voltage rated at 12V dc for low voltage industrial applications. Silver alloy contact material ensures high conductivity and durability. Plug-in terminal type for easy mounting and replacement on panel setups. Operational temperature range from -40°C to +55°C for varied environmental conditions.

Compact dimensions with 14mm length, 27mm height, and 43mm width. Coil resistance of 115Ω with coil power consumption of 1.1W for efficient energy usage. Capable of switching up to 15A current, supporting both 28V dc and 250V ac switching voltages.

Compliance with RoHS standards ensuring eco-friendly manufacturing. Part of the Harmony Relay RP series trusted for industrial control applications. Manufactured in China, reflecting global sourcing standards. Explore the wide range of Schneider Electric electrical components and relays at EnvMart for reliable industrial automation solutions.
