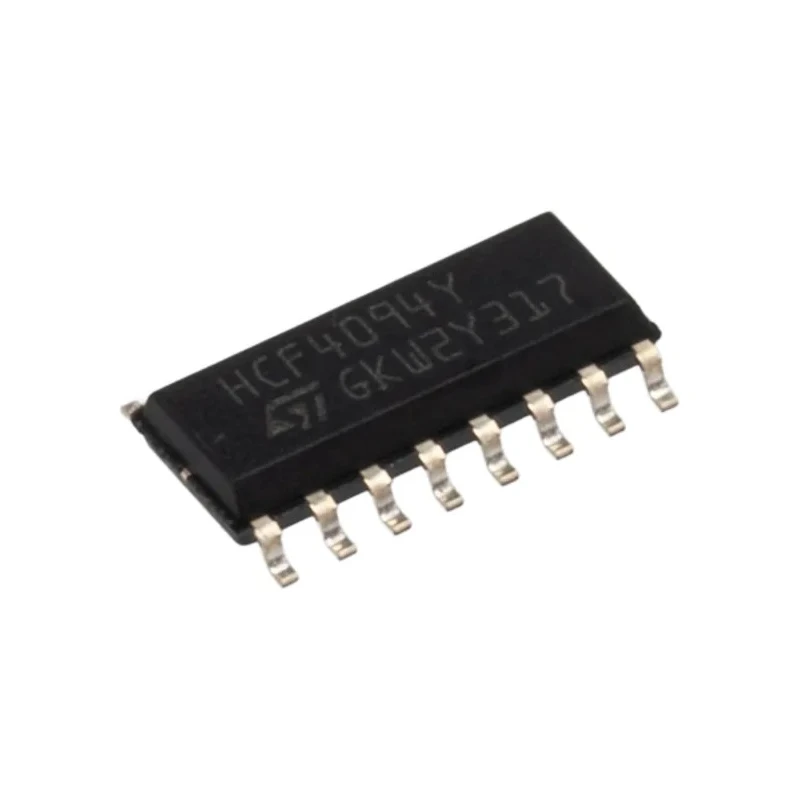

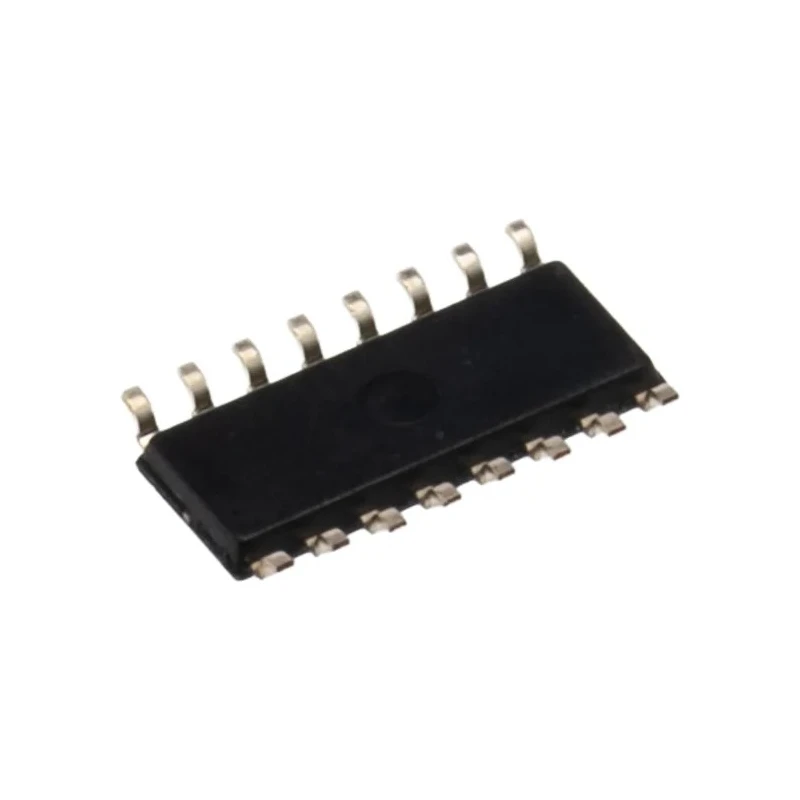

STMicroelectronics Shift Register SO 16-Pin Surface Mount 3V to 20V Maximum Supply Voltage HCF4094YM013TR

STMicroelectronics HCF4094YM013TR is a 1-element Shift Register in a 16-pin SO (Small Outline) surface mount package designed for advanced electronic and semiconductor applications. It supports a wide supply voltage range from 3 V to 20 V and meets the stringent Automotive Standard AEC-Q100, which makes it suitable for automotive electronics and other high-reliability industrial uses.

This shift register provides 3-state parallel outputs allowing easy connection to a common bus system as well as separate serial outputs synchronized to both positive and negative clock edges, enabling cascading of multiple devices to extend functionality. It offers medium speed operation up to 5 MHz at 10 V, making it versatile for many timing and logic applications in electronic circuits.

The device features low quiescent current and minimal input leakage current (maximum 100 nA at 18 V at 25 °C). Its output characteristics are standardized and symmetrical with parametric ratings available at various voltages (5 V, 10 V, and 15 V), ensuring consistent performance. It is 100% tested for quiescent current to guarantee reliability in application.

Robust electrostatic discharge (ESD) protection is included with Human Body Model rated at 1 kV, Machine Model at 200 V, and Charged Device Model at 1 kV, safeguarding the device against typical handling stresses. The maximum operating temperature of 125 °C fits demanding industrial and automotive environments.

This shift register comes in a compact 10 mm × 4 mm × 1.75 mm package (L×W×H), which suits space-constrained PCB designs. Features 3-state parallel outputs for common bus connection. Separate serial outputs synchronous to both clock edges for cascading.

Medium speed operation up to 5 MHz at 10 V. Low quiescent current and input leakage specified. Automotive grade AEC-Q100 standard compliance. High ESD protection ratings with full quiescent current testing. Compact SO package with 16 pins for surface mounting.

Rated for operation up to 125 °C for industrial use.

This product is ideal for applications in electronics manufacturing, automotive electronics, industrial machinery, and other environments requiring reliable Shift Register logic components. For more precision logic ICs and semiconductor components, explore the Electronics & Electricals category on EnvMart.
