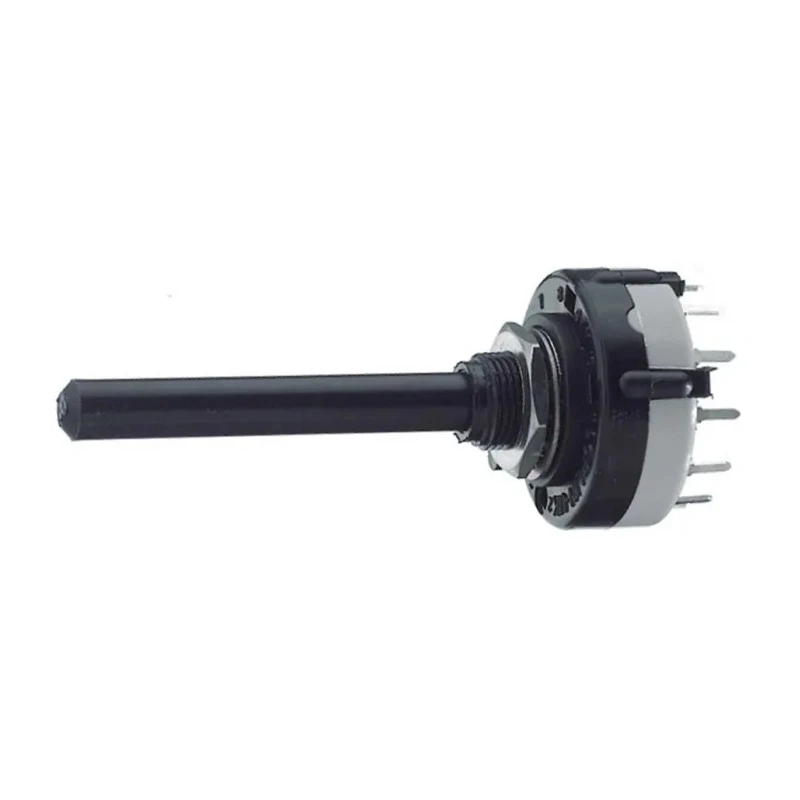

Lorlin DP Rotary Switch 150mA Solder Terminal Nylon Housing 250V AC 24V DC CK1045
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread |
| Height | 59.1mm |
| Model | CK1045 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DP |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
Key Features
- Features a double-pole (DP) contact configuration supporting up to 150mA current.
- Operates safely under a maximum AC voltage of 250V and DC voltage of 24V.
- Constructed with durable nylon housing and designed for panel mounting.
- Provides 90° angle of throw with mechanical life rated at 10,000 cycles.
- Includes a 27.5mm diameter body with a 59.1mm height.
- Functions reliably within the operating temperature range of -30°C to 85°C.
- Utilizes solder terminal type for robust electrical connections.
- Includes a 1.5 inch long spindle with a 0.25 inch diameter and 30mm flat for knob mounting.
Product Description
Lorlin CK1045 DP Rotary Switch is engineered for precision and durability with a 150mA contact current rating and solder terminal configuration suitable for various electrical and automation applications. Featuring a nylon housing, this switch supports a maximum AC voltage of 250V and a DC voltage of 24V and is designed for panel mounting to ensure secure installation.
This rotary switch offers a 90° angle of throw and mechanical life exceeding 10,000 cycles, making it reliable for repeated switching operations in industrial, laboratory, and manufacturing environments. Its compact dimensions include a 27.5mm diameter and 59.1mm height, with an extended spindle length for compatibility with grub screwed knobs.
The operating temperature range from -30°C to 85°C allows use under diverse environmental conditions. The switch construction includes a shorting MBB (make before break) and non-shorting BBM (break before make) contacts with adjustable stop and continuous rotation options, enhancing flexibility in control systems.
This product conforms to RoHS standards, ensuring compliance with environmental regulations. The proof voltage of 1500Vac enhances safety parameters, suitable for use in industrial automation circuits, electrical switchgear assemblies, and control panels. The dimensions and thread specifications facilitate versatile mounting and accessory compatibility.
Double-pole (DP) contact configuration rated for 150mA current. Maximum rated voltages: 250V AC and 24V DC. Nylon housing for insulation and mechanical robustness. Panel mount type with solder terminals for secure connections.
90° mechanical angle of throw with 10,000 cycles lifespan. Operating temperature range: -30°C to 85°C. Spindle dimensions: 1.5 inch length, 0.25 inch diameter with 30mm flat. RoHS compliant for environmentally safe use.
This Lorlin rotary switch model CK1045 suits applications in industrial automation, electrical control, manufacturing processes, and various electronic device controls. It is ideal for users seeking a durable, reliable rotary switching solution with precise control and robust electrical ratings. For additional options and related products, explore the full range of Rotary Switches in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lorlin CK1045 rotary switch has a maximum contact current rating of 150mA.
This model supports a maximum AC voltage of 250V and a maximum DC voltage of 24V.
The mechanical life of the CK1045 rotary switch is rated at 10,000 cycles.
It operates reliably within a temperature range of -30°C to 85°C.
The switch utilizes solder terminals for robust electrical connections.
The switch has a diameter of 27.5mm and a height of 59.1mm, with a spindle length of 1.5 inches and a diameter of 0.25 inches.
Yes, it is designed for panel mounting, ensuring secure installation.
The angle of throw for this model is 90 degrees.
The switch features a nylon housing, providing insulation and mechanical robustness.
Yes, the CK1045 rotary switch conforms to RoHS standards for environmental safety.
It is suitable for applications in industrial automation, electrical control, and manufacturing processes.
The spindle has a thread specification of 9.52x32TPI, with a bush length of 8mm.
