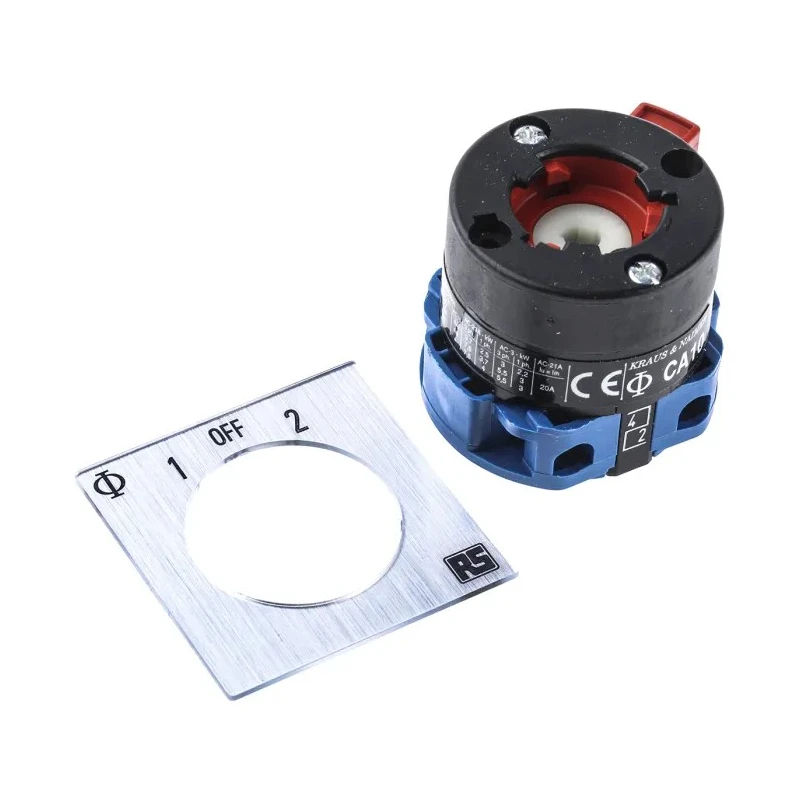

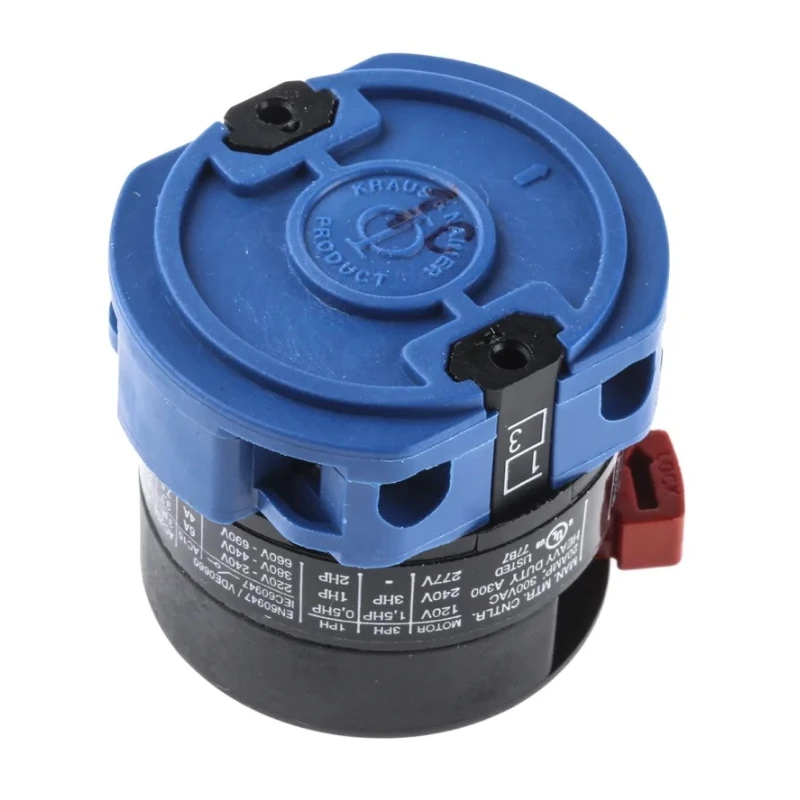

Kraus & Naimer Cam Switch 3 Position 60° 1 Pole Screw Terminal IP65/IP42 CA10.A214/GBA002.*FT

Kraus & Naimer CA10.A214/GBA002.*FT Cam Switch is a precision-engineered cam switch designed for electrical switching tasks requiring three distinct positions and a 60° angle of throw. It operates with a single pole and features screw terminals for strong and secure electrical connections, rated at 20 amperes and able to handle contact voltages up to 690 volts.

Its compact dimensions of 48mm by 48mm comply with the EN 50022 standard, making it suitable for standard control panels and industrial machinery installations. The switch exhibits exceptional mechanical durability with a rated life of 1,000,000 operations, ensuring long-term reliability in continuous or intermittent industrial use.

The device is protected against ingress of dust and water with IP65 and IP42 ratings, making it suitable for demanding environments such as manufacturing plants and automation systems. It can operate in ambient temperatures ranging from -25°C to 55°C, servicing a broad range of operating conditions.

The cam switch is designed primarily for electrical automation, control, and switching applications. It is sold with the switch body and the corresponding legend plate; however, the switch operator must be procured separately to complete the assembly.

Features screw type terminals for secure and easy wiring. Rated at 20A with contact voltage up to 690V. Supports IP65 and IP42 ingress protection ratings for use in harsh environments. Operates reliably from -25°C to a maximum of 55°C ambient temperature.

Mechanical life expectancy is 1,000,000 operations, ensuring long-term performance. Complies with EN 50022 standards for dimensional compatibility. The switch body measures 48mm by 48mm, compact for versatile installations.

No hazardous area certification is provided with this model. Legend plates are supplied with the switch body; switch operators must be ordered separately. Suitable for electrical automation and switchgear assemblies.

This cam switch is ideal for diverse applications including industrial automation systems, electrical panel control, manufacturing machinery, and other equipment requiring reliable multi-position switching.
