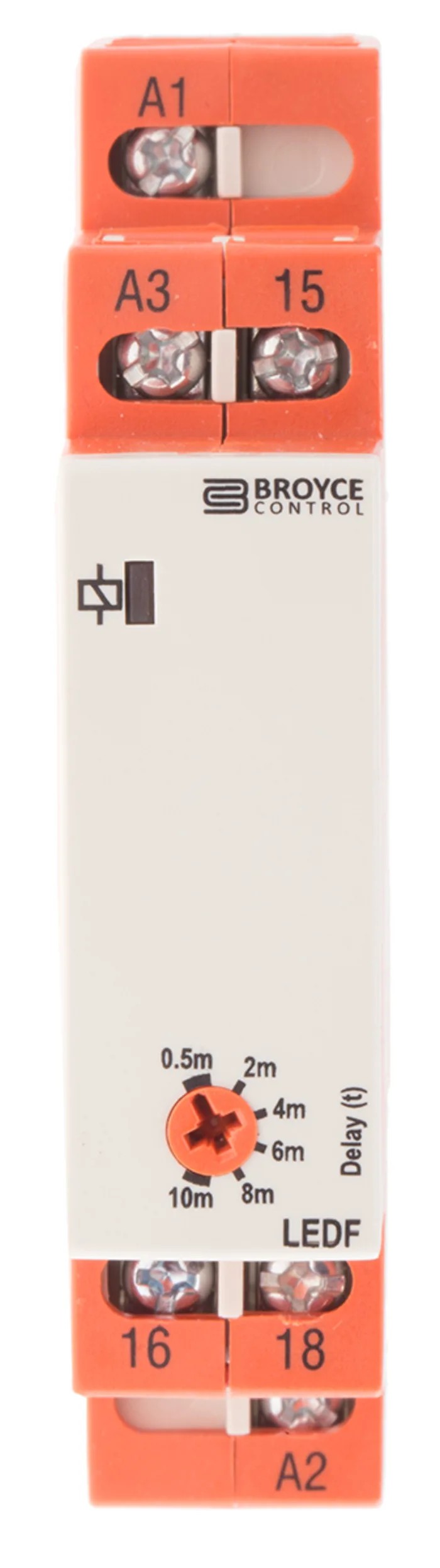

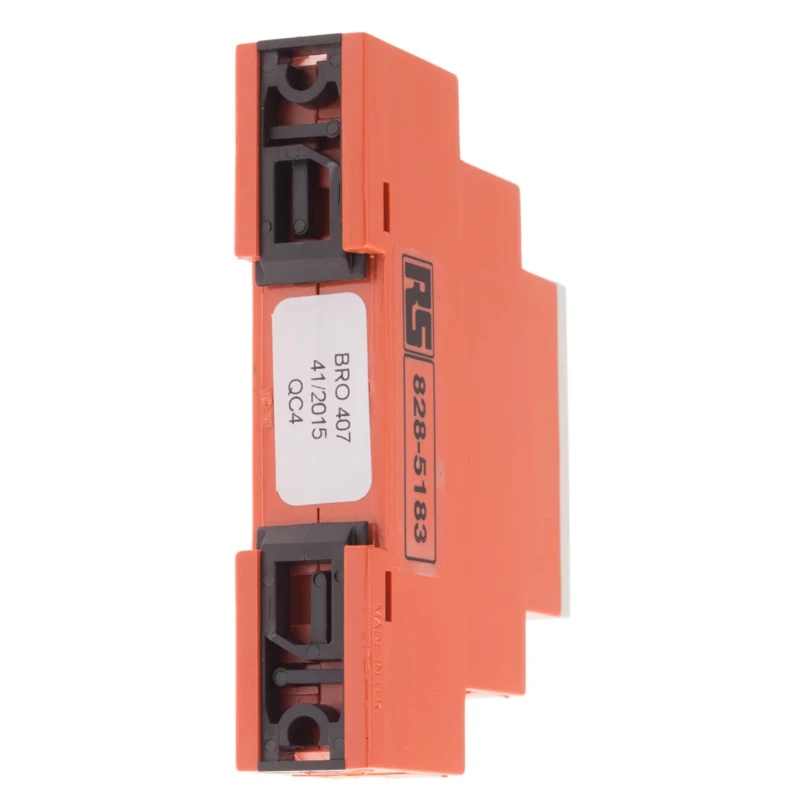

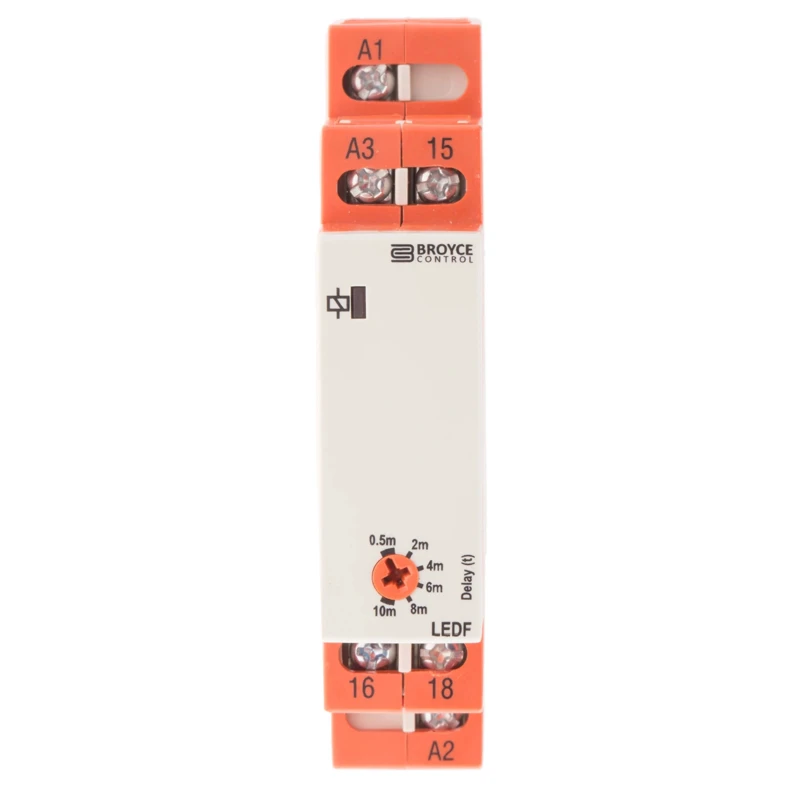

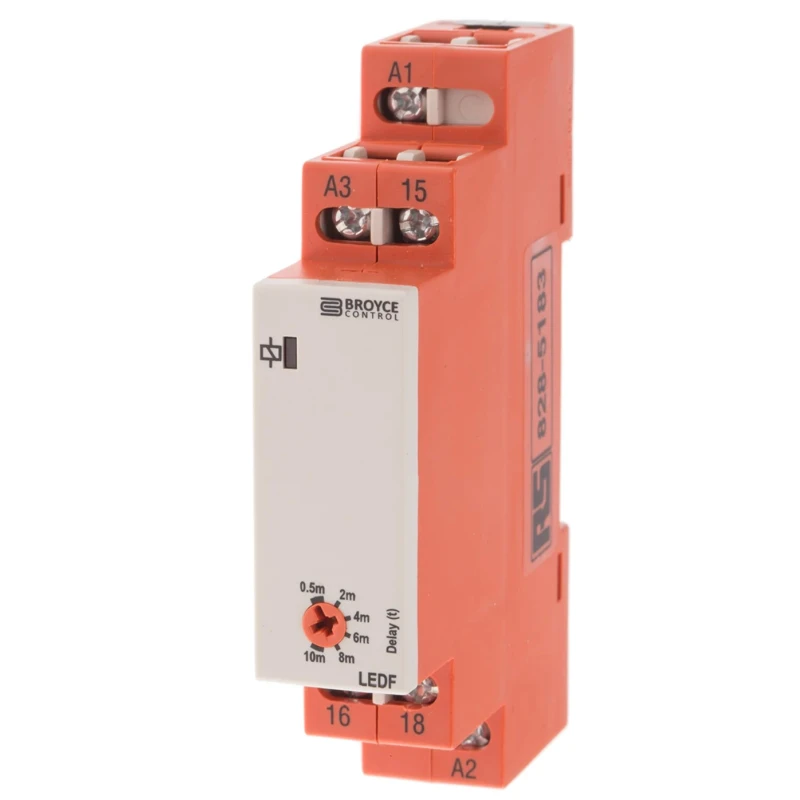

Broyce Control LEDF Series DIN Rail Timer Relay, 1-Contact, SPDT, 24 V dc / 110 V ac / 24 LEDF 24VAC/DC/110VAC. 0.5-10 Mins
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 66.5mm |
| Length | 89mm |
| Model | LEDF 24VAC/DC/110VAC. 0.5-10 Mins |
| Mode | Power-Off Delay |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | LEDF |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.5 to 10 min |
| Terminal type | Screw |
| Standards/Approvals | UL, IEC, CE |
| Number of Contacts | 1 |
| Number of Timer Functions | 1 |
| Contact Current | 8A |
| Supply DC Voltage | 24 V dc |
| Timing Adjustment | Screwdriver Slot |
| Supply AC Voltage | 110, 24V ac |
Key Features
- Designed with a 0.5 to 10 minute time delay for versatile control.
- Single contact with SPDT type for reliable switching.
- Power-Off Delay mode ensures timer activates upon power removal.
- Compact DIN rail mount with dimensions 89mm length, 17.5mm width, 66.5mm height.
- Green LED indicates supply status for easy monitoring.
- Contact current rated at 8A for dependable load handling.
- Timing adjustable via screwdriver slot for user convenience.
- Operating temperature range from -20°C to 60°C for rugged environments.
Product Description
Broyce Control LEDF 24VAC/DC/110VAC. 0.5-10 Mins DIN Rail Timer Relay is a high-quality timer relay designed for precise delay-off timing in industrial and automation control systems. It features a single SPDT contact to control circuits with a reliable 8A contact current rating, suitable for a range of electrical loads.
This timer relay operates on dual voltage inputs, offering compatibility with 24 V dc, 24 V ac, and 110 V ac supply voltages, making it versatile for various electrical setups. It mounts easily on a standard 17.5mm DIN rail, with compact dimensions of 89mm length, 17.5mm width, and 66.5mm height, optimizing panel space.
The device provides a time range adjustable from 0.5 to 10 minutes using a screwdriver slot, suitable for applications requiring precise control over switching delays. The power-off delay (true off delay) function activates the timer upon removal of power, ensuring accurate timing behavior for release-based control tasks.
Environmental operating conditions cover a temperature range from -20°C minimum to 60°C maximum, supporting robust performance in industrial and commercial environments. The green LED supply indication allows quick verification of operational status. Screw-type terminals ensure secure and durable wiring connections.
Common use cases for this DIN rail timer relay include industrial automation, HVAC control panels, manufacturing process timing, process control systems, and electrical distribution timing functions. Its certifications and compliance with UL, IEC, and CE standards guarantee quality and safety in demanding applications.
Designed with a 0.5 to 10 minute time delay for versatile control. Operates on dual voltage inputs: 24 V dc, 24 V ac, and 110 V ac. Single contact with SPDT type for reliable switching. Power-Off Delay mode ensures timer activates upon power removal.
Compact DIN rail mount with dimensions 89mm length, 17.5mm width, 66.5mm height. Green LED indicates supply status for easy monitoring. Contact current rated at 8A for dependable load handling. Timing adjustable via screwdriver slot for user convenience.
Operating temperature range from -20°C to 60°C for rugged environments. Rugged screw terminal type for secure connections. Explore the Broyce Control Timer Relay range and other automation components on EnvMart for reliable electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay features a time delay range adjustable from 0.5 to 10 minutes.
It operates on dual voltage inputs of 24 V dc, 24 V ac, and 110 V ac, making it versatile for various setups.
This model has a single contact with a SPDT (Single Pole Double Throw) configuration for reliable switching.
The contact current is rated at 8A, suitable for handling various electrical loads.
It has compact dimensions of 89mm in length, 17.5mm in width, and 66.5mm in height.
Timing can be adjusted using a screwdriver slot, allowing for user convenience in setting the delay.
The operating temperature range is from -20°C to 60°C, suitable for rugged environments.
This model is designed for DIN rail mounting, optimizing panel space in electrical setups.
A green LED indicates the supply status, allowing for easy monitoring of operational status.
It complies with UL, IEC, and CE standards, ensuring quality and safety in demanding applications.
The Power-Off Delay mode activates the timer upon removal of power, ensuring accurate timing behavior for release-based control tasks.
It features screw-type terminals for secure and durable wiring connections.
