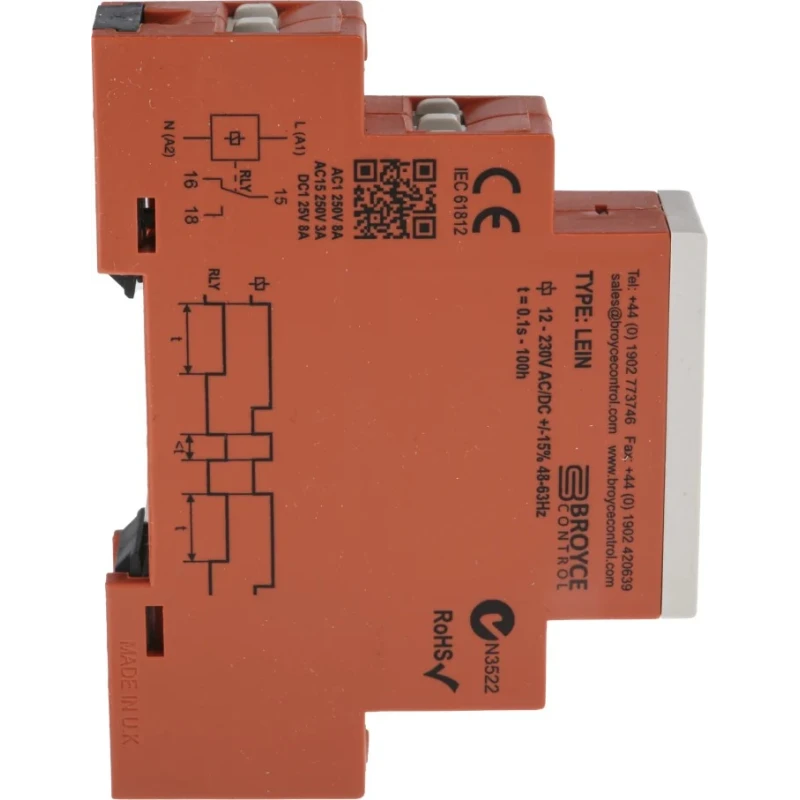

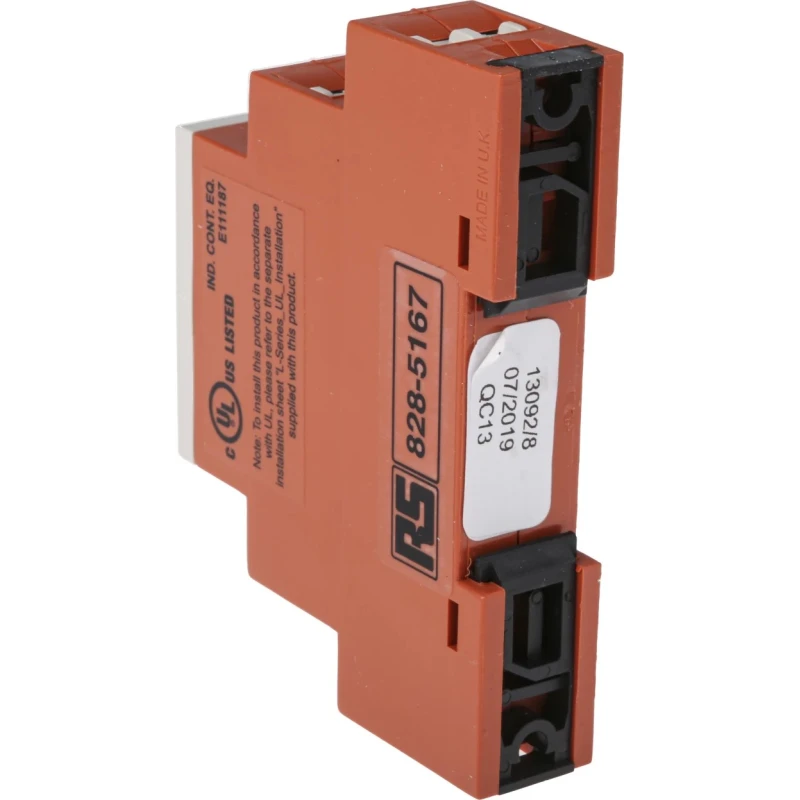

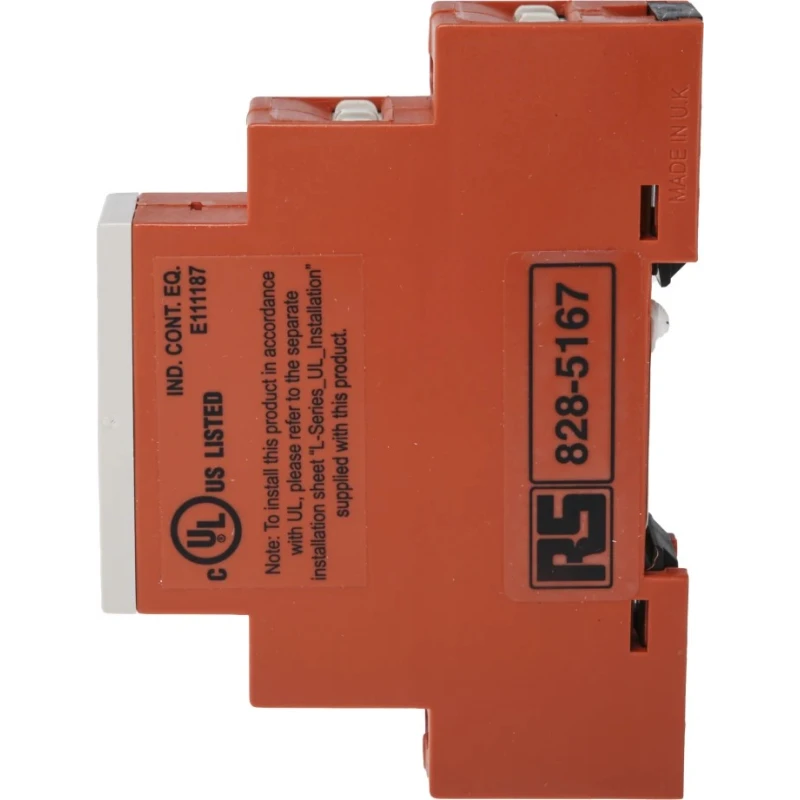

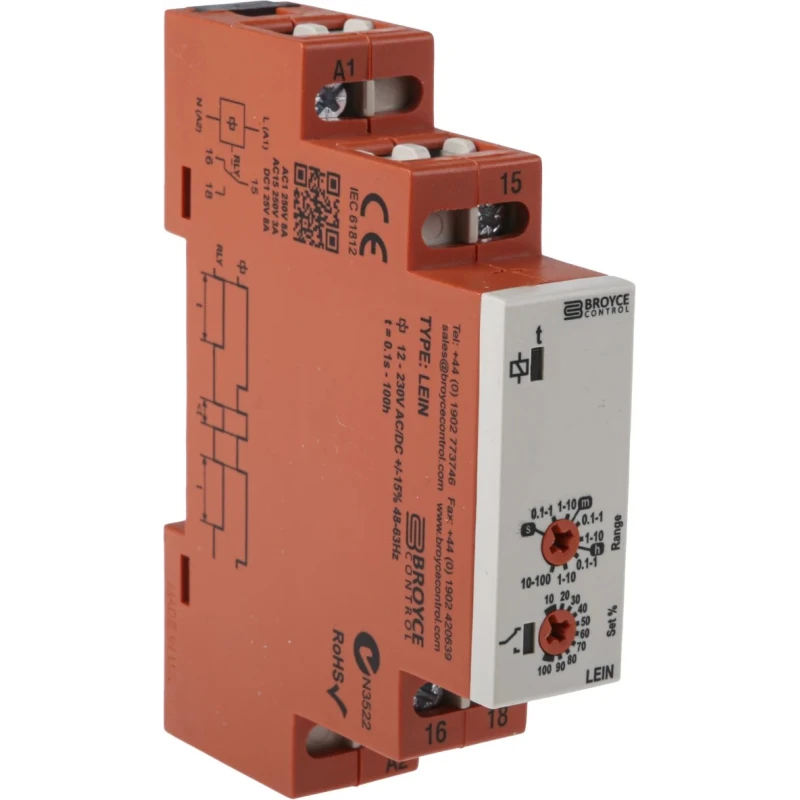

Broyce Control LEIN Series DIN Rail Timer Relay 1-Contact 230 V dc 12V ac 230 V ac 0.1 s to 100 h SPDT LEIN 12-230V AC/DC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 66.5mm |
| Function | Multifunction |
| Length | 89mm |
| Model | LEIN 12-230V AC/DC |
| Mode | Interval |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | LEIN |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.1 s to 100 h |
| Terminal type | Screw |
| Standards/Approvals | UL, IEC, CE |
| Number of Contacts | 1 |
| Number of Timer Functions | 1 |
| Contact Current | 8A |
| Supply DC Voltage | 230 V dc |
| Timing Adjustment | Screwdriver Slot |
| Supply AC Voltage | 12, 230V ac |
Key Features
- Compact DIN rail mounting with 17.5mm housing width for easy installation.
- Single SPDT contact configuration rated at 8A for reliable switching.
- Wide supply voltage range from 12V ac/dc up to 230V ac/dc.
- 7 selectable time ranges adjustable via rotary switches for flexibility.
- LED indicators for supply, timing, and relay status provide user-friendly diagnostics.
- Timing adjustment via screwdriver slot enables precise setting of delays.
- Operating temperature range from -20°C to 60°C suitable for various industrial environments.
- Complies with UL, IEC, and CE standards ensuring safety and quality.
Product Description
Broyce Control LEIN 12-230V AC/DC DIN Rail Timer Relay is a high-precision, compact solid-state timer relay designed for industrial and automation control applications. With a single SPDT contact capable of handling 8A current, it offers versatile timing functions with an interval mode and a time range from 0.1 seconds up to 100 hours.
The device mounts easily on DIN rails with a slim 17.5mm housing, optimizing panel space. Its wide supply voltage acceptance accommodates 12V ac/dc to 230V ac/dc, making it compatible with various power systems. Two front rotary switches allow intuitive selection from 7 time ranges, complemented by fine timing adjustments via a screwdriver slot.
LED indicators provide clear visual feedback on power supply, timing status, and relay operation. This timer relay supports operation in temperatures from -20°C to 60°C, suitable for demanding industrial environments. The screw terminal connections ensure secure wiring.
Certified to UL, IEC, CE, and other international standards, the LEIN series timer relay guarantees reliability and safety. It is extensively used in industries such as textiles, chemical processing, mining, irrigation systems, raw material handling, food and beverages, and general industrial process controls. The IP20 rating ensures terminal protection against solid objects.
Compact DIN rail mounting with 17.5mm width optimizes panel space. Single SPDT contact rated for 8A load switching. Wide supply voltage range from 12V to 230V AC/DC. Seven selectable time ranges from 0.1 seconds to 100 hours.
Fine adjustment of timing using screwdriver slot. LED indicators for supply and relay status provide clear feedback. Operational temperature range from -20°C to 60°C. Complies with UL, IEC, and CE standards for quality assurance.
Suitable for process control in varied industrial sectors.
This timer relay is a dependable component for precision timing control in industrial automation and process control industries. Explore more about Broyce Control Timer Relays and similar automation components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay has a time range from 0.1 seconds to 100 hours, allowing for flexible timing applications.
This model features a single SPDT (Single Pole Double Throw) contact configuration, rated for 8A current.
It operates within a temperature range of -20°C to 60°C, making it suitable for various industrial environments.
The relay supports a wide supply voltage range from 12V AC/DC to 230V AC/DC, providing compatibility with different power systems.
Timing adjustments are made using a screwdriver slot, allowing for precise setting of delays.
The dimensions are 89mm in length, 66.5mm in height, and 17.5mm in width, making it compact for DIN rail mounting.
It is designed for DIN rail mounting, which optimizes panel space in industrial settings.
The relay features screw terminal connections, ensuring secure wiring for reliable operation.
It complies with UL, IEC, and CE standards, ensuring safety and quality in its design and functionality.
This timer relay is used in various industries including textiles, chemical processing, mining, irrigation systems, and food and beverage processing.
This model supports one timer function, designed for interval timing applications.
