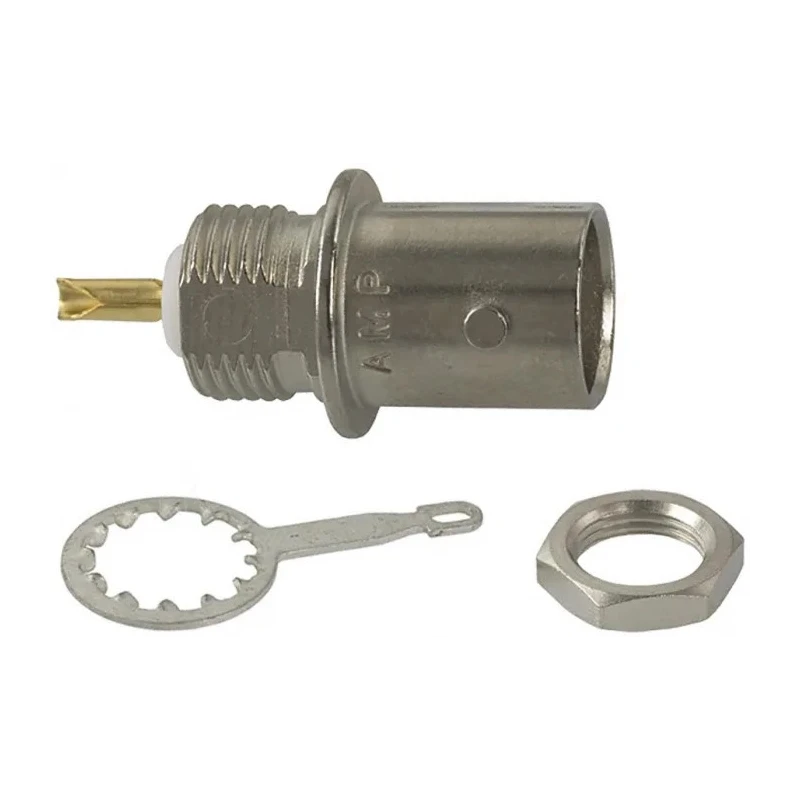

TE Connectivity BNC Series Coaxial Connector Panel Mount Female, 50 Ohm, Straight Body Solder Termination 5227169-8
Specifications
| Country of Origin | Mexico |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Phosphor Bronze |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- The connector is designed for panel mount applications with bulkhead support for secure installation.
- Nickel plated body ensures durability and corrosion resistance in industrial environments.
- Gold plated phosphor bronze contacts provide excellent conductivity and low contact resistance.
- Operates efficiently across a frequency range up to 4 GHz for high-performance RF applications.
- Suitable for use in electronic components, power & connectors, and RF coaxial connectors and adapters.
- Supports a wide operating temperature range from -55°C to 85°C for varied environmental conditions.
- Termination by solder ensures robust mechanical and electrical connection.
- Standard size and normal polarity configuration conform to industry norms for ease of use and compatibility.
Product Description
TE Connectivity 5227169-8 BNC Series Coaxial Connector is a high-quality female coaxial connector designed for panel mount applications. With a 50 Ohm impedance and straight body solder termination, this connector is ideal for applications requiring reliable RF signal transmission up to 4 GHz. The nickel-plated body offers excellent protection against corrosion, making it suitable for demanding industrial and commercial environments.
The connector features gold plated phosphor bronze contacts that ensure low resistance and dependable electrical performance. Its panel mount bulkhead design facilitates secure installation in electronic and power connector assemblies. Normal polarity and standard size ensure compatibility with a wide range of coaxial cables and equipment.
This product supports a wide operating temperature range from -55°C to 85°C, allowing for use in harsh environmental conditions typical of industrial, manufacturing, laboratory, and electronic testing applications.
TE Connectivity connectors are widely used in electronics, power distribution, and RF communication systems where signal integrity and mechanical reliability are critical. Panel mount bulkhead solder jack type for secure mounting.
Nickel plating on body for corrosion resistance. Gold plated phosphor bronze contacts for excellent conductivity. Operates up to 4 GHz frequency range. Standard size with normal polarity configuration. Solder termination type for reliable electrical connection.
Wide operating temperature range supports diverse applications. Manufactured to high-quality standards in Mexico. Explore the full range of TE Connectivity Coaxial Connectors and electronic components on EnvMart for your industrial, laboratory, HVAC, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector operates efficiently up to a maximum frequency of 4 GHz, making it suitable for high-performance RF applications.
The connector has an impedance rating of 50 Ohm, which is standard for many RF applications.
It utilizes a solder termination type, ensuring a robust mechanical and electrical connection.
The contacts are made of phosphor bronze and are gold plated, providing excellent conductivity and low contact resistance.
This model supports a wide operating temperature range from -55°C to 85°C, suitable for varied environmental conditions.
It features a panel mount design with bulkhead support for secure installation in electronic assemblies.
The body is nickel plated, which provides corrosion resistance and durability in industrial environments.
This connector has a female contact gender, making it suitable for pairing with male connectors.
The connector has a straight body orientation, which is standard for many applications.
It is manufactured in Mexico, adhering to high-quality standards.
This model is designed for use with coaxial cables, which are commonly used in RF applications.
It conforms to a standard size configuration, ensuring compatibility with a wide range of coaxial cables and equipment.
