Pico Technology PC Based Oscilloscope 70 MHz Bandwidth, 4 Channel, USB 3.0 Interface PicoScope 3404D MSO

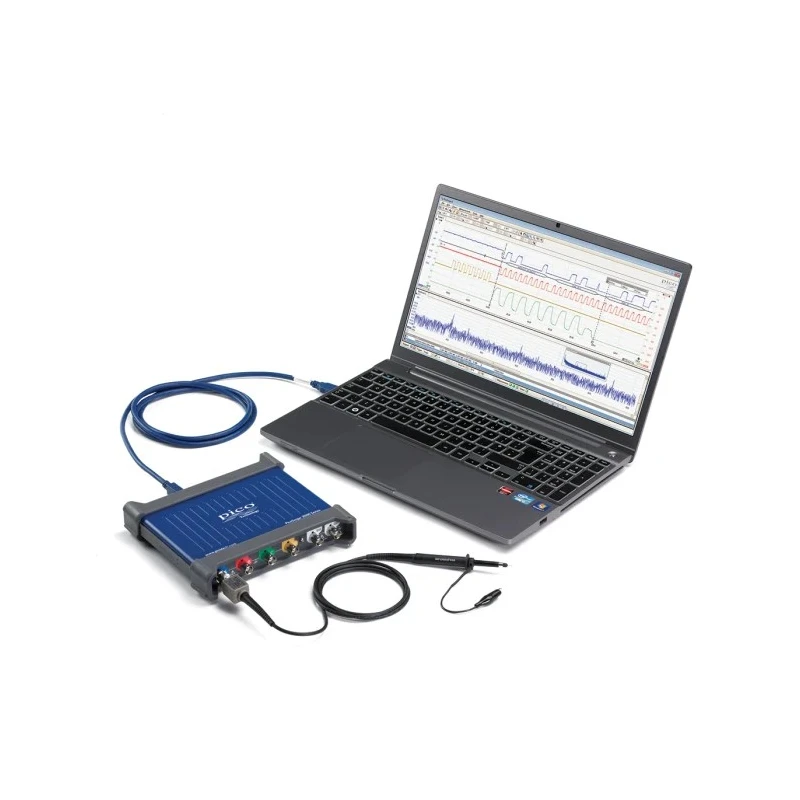

Pico Technology PicoScope 3404D MSO is a PC based oscilloscope with a bandwidth of 70 MHz and 4 analog channels. It offers high precision waveform analysis and digital signal decoding, connecting via USB 3.0 to a computer for convenient portability and flexible testing environments.

This oscilloscope is equipped with 1 GS/s real-time sampling rate and a 128 MS buffer memory, enabling the capture of detailed waveforms with an update rate of 100,000 waveforms per second. Its advanced digital triggering supports pulse width, window, dropout, channel logic, and digital pattern qualifiers, facilitating precise signal evaluation.

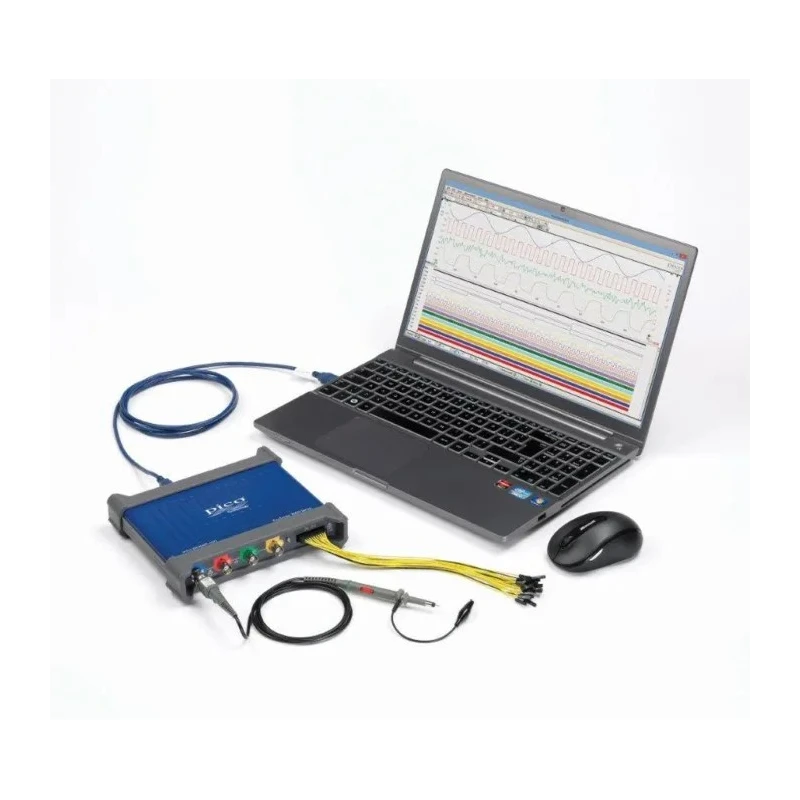

The device supports comprehensive serial protocol decoding including SPI, I2C, I2S, RS-232/UART, CAN, LIN, and FlexRay, even allowing simultaneous monitoring of mixed protocols across 20 analog and digital channels. The vertical resolution is 8 bits, with a minimum time base of 2 ns/div and a maximum vertical sensitivity of 4 V/div.

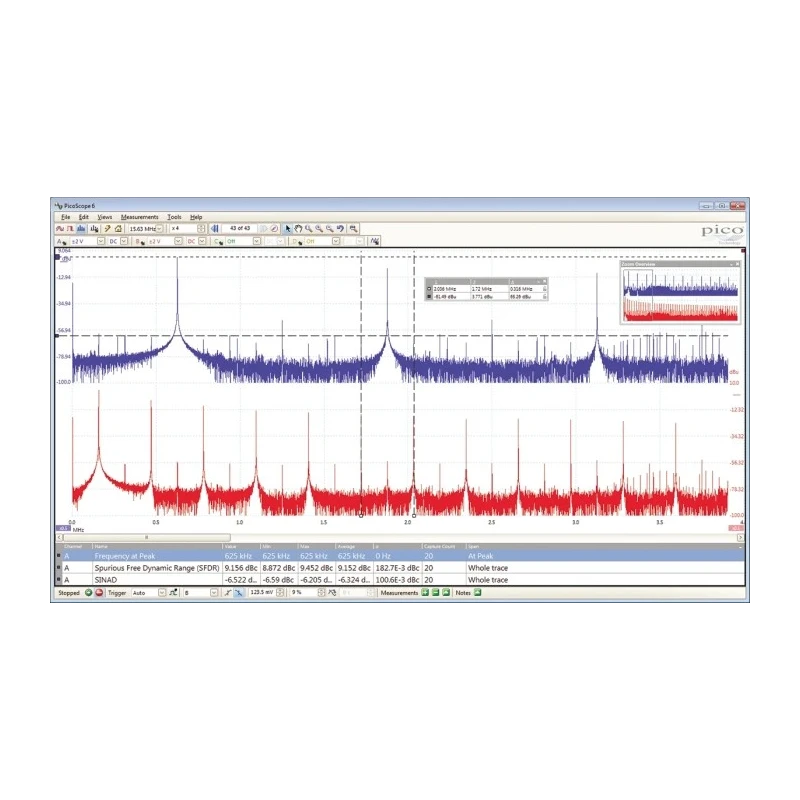

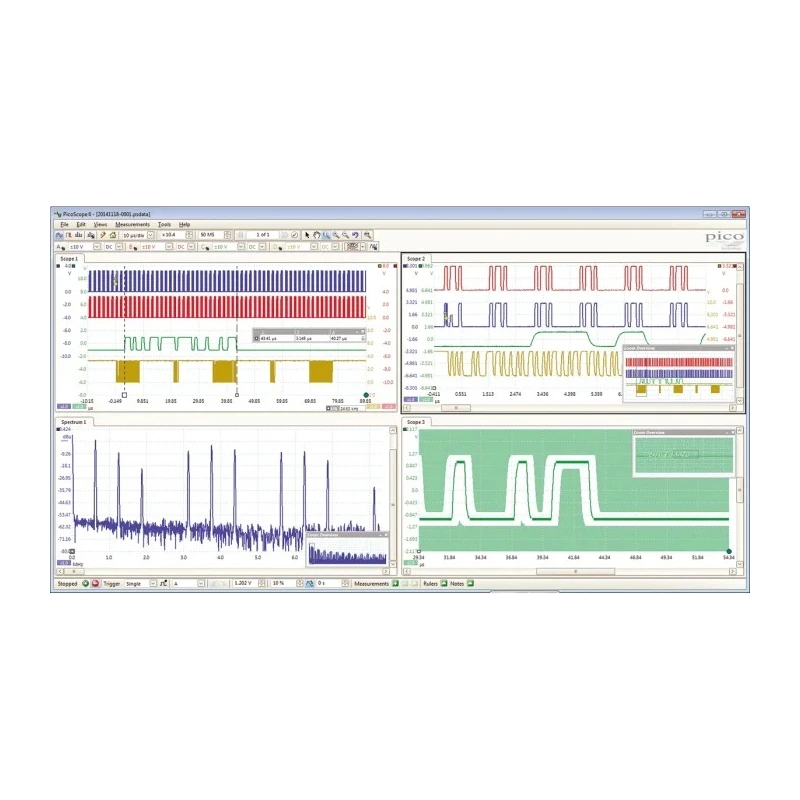

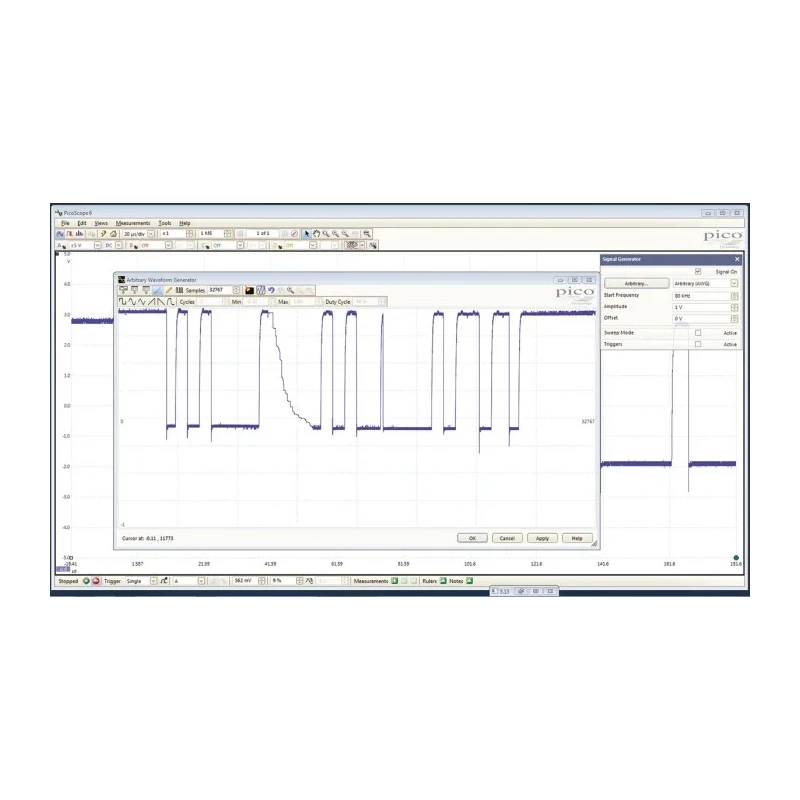

PicoScope 3404D MSO is compatible with PicoScope6 software, offering advanced features like arbitrary waveform generation, mask limit testing, and color persistence display mode. It is suitable for industrial, laboratory, educational, and servicing applications, including design verification, fault finding, and repair tasks.

The unit is delivered with high-quality switchable x1/x10 probes for each analog channel, a carrying case, quick start guide, software CD, USB connection cables, and a power adaptor. The oscilloscope dimensions are 210 mm length, 140 mm width, and 40 mm height.

This product complies with EN 61010-1:2010 and EN61326-1:2006 standards and is WEEE certified. It is manufactured in the United Kingdom ensuring high manufacturing quality. Offers 1 GS/s real-time sampling and 128 MS buffer memory for detailed waveform acquisition.

Includes serial decoding for SPI, I2C, I2S, RS-232/UART, CAN, LIN, and FlexRay protocols. Equipped with built-in advanced digital triggering and pulse width, window, dropout qualification capabilities. Provides 100,000 waveforms per second update rate and hardware-accelerated display refresh.

Compatible with PicoScope6 software for powerful data analysis and visualization on PC. Compact USB-powered portable design suitable for field and laboratory use. Supplied with switchable x1/x10 probes, carrying case, quick start guide, software CD, USB cables, and power adaptor.

Applications include design, testing, education, servicing, monitoring, fault finding, and repairs. Manufactured in the United Kingdom with compliance to EN 61010-1:2010 and EN61326-1:2006 standards. Explore more Pico Technology Oscilloscopes and accessories on EnvMart for advanced measurement solutions in industrial, laboratory, and educational sectors.
