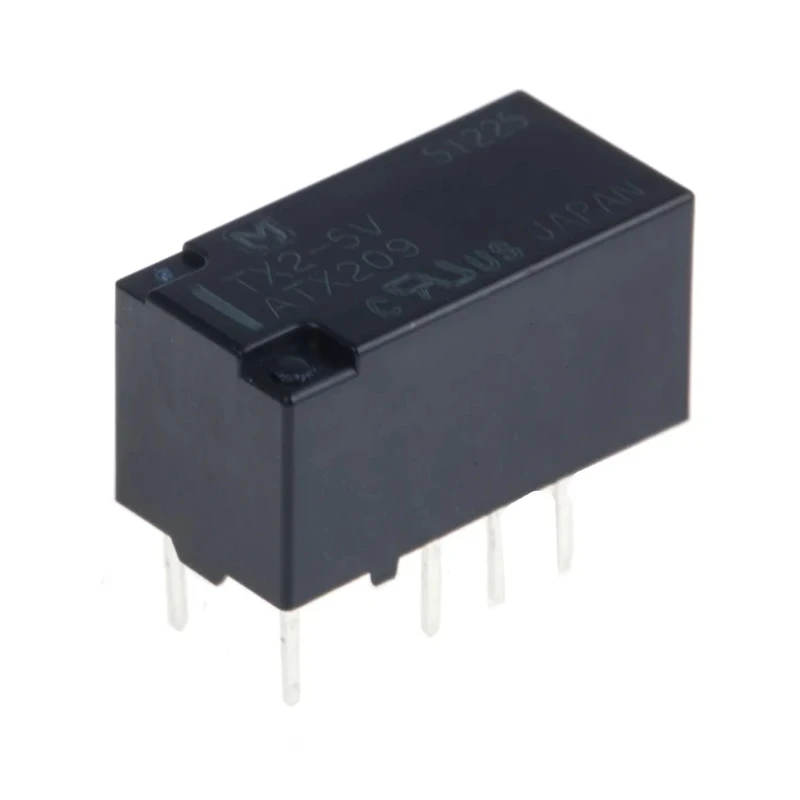

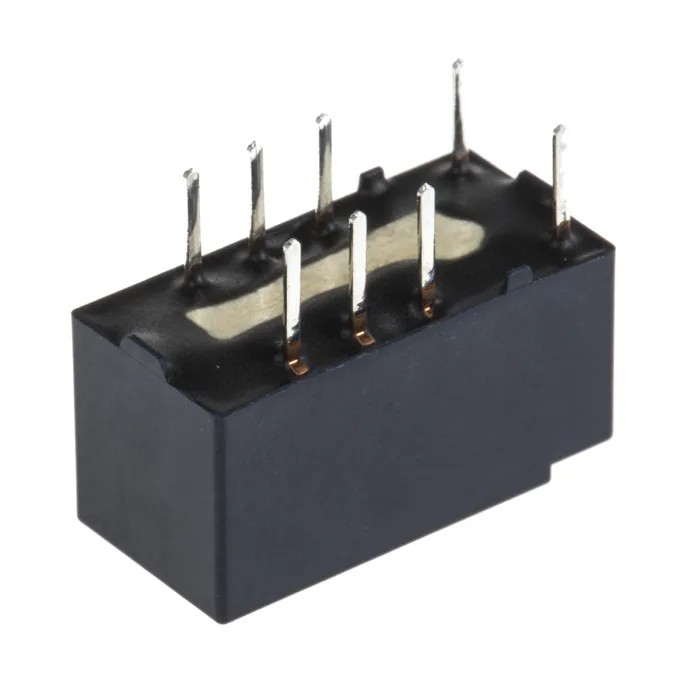

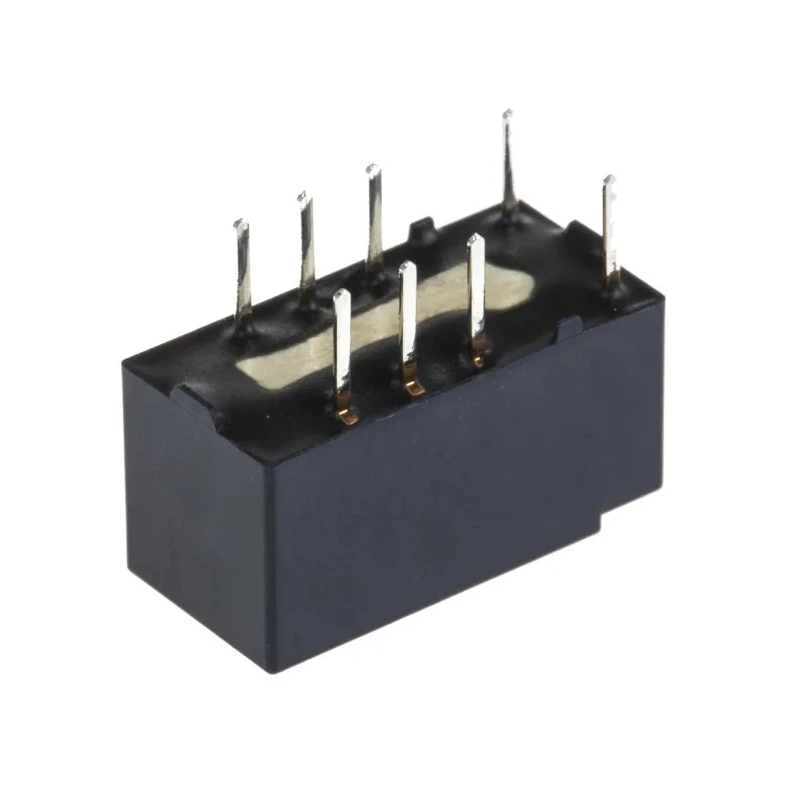

Panasonic Signal Relay 5V DC Coil 2A Switching Current DPDT DIP Mount TX2-5V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2-5V |
| Width | 7.4mm |
| Mount Type | DIP |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 140mW |
| Panasonic PCB Mount Signal Relay, 5V dc Coil, 3A Switching Current, DPDTBrand | Panasonic |
| KEMET PCB Signal Relay, 5V dc Coil, 2A, DPDTBrand | KEMET |
Key Features
- Coil voltage rated at 5V DC suitable for low voltage control circuitry.
- Double Pole Double Throw (DPDT) contact configuration offers versatile switching.
- Rated switching current of 2 amperes for moderate load control.
- DIP mount type optimized for PCB installation and automated assembly.
- Operates reliably from -40°C up to 85°C environmental temperatures.
- Gold plated contacts ensure high reliability and low contact resistance.
- Coil resistance of 178 ohms with power consumption of 140mW for energy-efficient operation.
- Sealed construction providing high vibration and shock resistance and enabling automatic washing.
Product Description
Panasonic TX2-5V Signal Relay is a high-quality electromechanical relay designed for PCB mounting with a 5V DC coil and DPDT contact configuration. It supports a 2A switching current, delivering robust performance in telecommunication, measurement, security, and medical equipment applications.
This relay belongs to the TX2 series, known for its high contact capacity and high breakdown voltage, withstanding surges effectively. Its sealed design enhances vibration and shock resistance, making it suitable for industrial environments.
The relay features gold plated contacts to ensure low resistance and durability during operation. Operating temperature range from -40°C to 85°C supports a wide range of environmental conditions.
Dimensions measure 15mm in length, 7.4mm in width, and 8.2mm in height, enabling compact electronic circuit designs. The PCB mount DIP terminal type facilitates integration into automated assembly lines.
With coil power consumption of only 140mW and coil resistance of 178Ω, the relay assures energy efficiency. It complies with RoHS standards ensuring environmental compliance.
This Panasonic Signal Relay is ideal for industrial, telecommunications, security systems, and medical instrumentation, offering reliable switching solutions for moderate current loads up to 2 amps.
Coil voltage rated at 5V DC suitable for low voltage control circuitry. Double Pole Double Throw (DPDT) contact configuration offers versatile switching. Rated switching current of 2 amperes for moderate load control. DIP mount type optimized for PCB installation and automated assembly.
Compact dimensions: 15mm length, 7.4mm width, 8.2mm height for space-saving designs. Operates reliably from -40°C up to 85°C environmental temperatures. Gold plated contacts ensure high reliability and low contact resistance.
Coil resistance of 178 ohms with power consumption of 140mW for energy-efficient operation. Sealed construction providing high vibration and shock resistance and enabling automatic washing. Broad switching voltage capability up to 220V AC/DC for diverse applications.
Explore more Panasonic electrical components and relays in the Electronics & Electricals category at EnvMart for high-performance industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage rating of 5V DC, making it suitable for low voltage control circuitry.
It supports a maximum switching current of 2 amperes, allowing for moderate load control.
This relay measures 15mm in length, 7.4mm in width, and 8.2mm in height, enabling compact electronic circuit designs.
It features a Double Pole Double Throw (DPDT) contact configuration, which offers versatile switching capabilities.
The relay operates reliably within a temperature range from -40°C to 85°C, suitable for various environmental conditions.
The coil resistance is 178 ohms with a power consumption of 140mW, ensuring energy-efficient operation.
It is designed for DIP mounting, which is optimized for PCB installation and automated assembly.
The relay features gold plated contacts, which ensure high reliability and low contact resistance during operation.
It can switch voltages up to 220V AC and 220V DC, making it versatile for various applications.
This model complies with RoHS standards, ensuring environmental compliance.
It is ideal for use in telecommunication, measurement, security, and medical equipment applications.
The relay features a PCB terminal type, facilitating integration into automated assembly lines.
