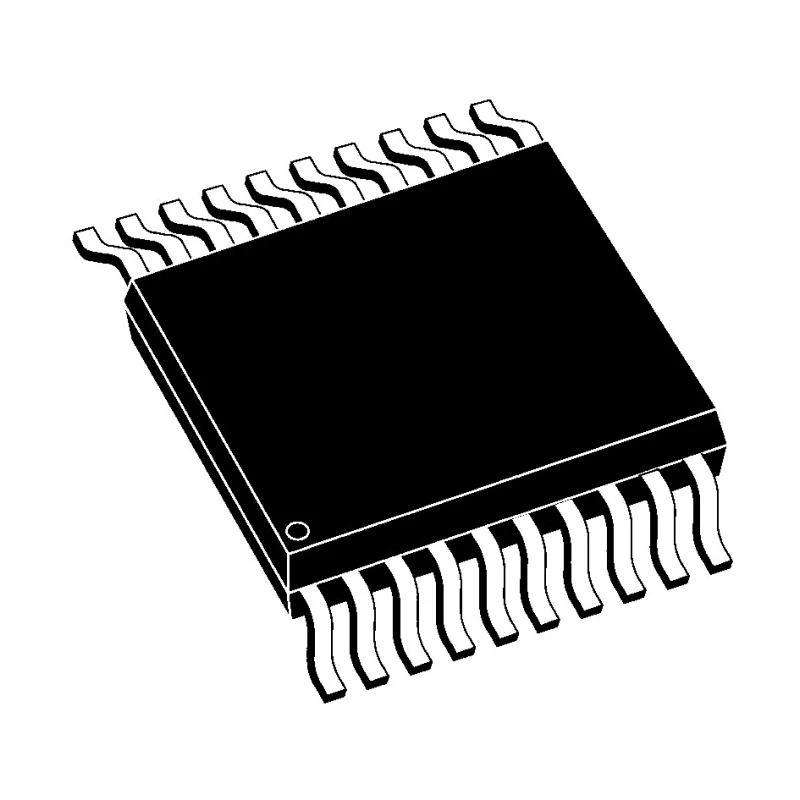

Microchip PIC18LF14K22-I/SS 8 bit PIC18F Microcontroller 64 MHz 16 kB FLASH 256 B EEPROM 20-Pin SSOP

Microchip PIC18LF14K22-I/SS is a versatile and high-performance 8-bit PIC18F microcontroller designed for a wide range of embedded and industrial applications. It features a 64 MHz maximum CPU speed, delivering up to 16 MIPS, enhanced by the PIC18 architecture which supports a 31-level hardware stack and 75 instructions. This microcontroller operates on eXtreme Low Power technology, making it ideal for battery-powered and energy-efficient designs.

Equipped with 16 kB of FLASH program memory and 256 bytes of EEPROM, it supports reliable and flexible program storage. Its 512-bit RAM and 18 programmable I/O pins provide ample resources for control and interfacing tasks. The device integrates advanced peripherals including 12 channels of 10-bit analogue-to-digital converters (ADCs), two analogue comparators, a 5-bit DAC, multiple timers (four), and communication interfaces such as SPI and I2C via the MSSP module, along with an enhanced USART.

The PIC18LF14K22-I/SS comes in a compact 20-pin SSOP surface-mount package, measuring 7.5 mm length, 5.6 mm width, and 1.85 mm height, suitable for space-constrained applications. Operating in voltage ranges from 1.8 V to 3.6 V and temperature from -40°C to 85°C, it performs reliably in industrial and automotive environments.

Notable features include power-on reset, brown-out reset, watchdog timer, and multiple low-power modes achieving as low as 34 nA in sleep mode, optimizing power efficiency. Its compliance with RoHS standards reflects its manufacturing quality and environmental compliance.

Operates at 64 MHz with 16 MIPS CPU speed. Includes 16 kB FLASH memory and 256 B EEPROM. Offers 18 programmable I/O pins and four timers. Supports ADC, DAC, comparator, MSSP SPI/I2C, and USART communication. Compact 20-pin SSOP surface-mount package.

Low power consumption with sleep mode current of 34 nA. Voltage range: 1.8 V to 3.6 V; temperature range: -40°C to 85°C. RoHS compliant and environmentally safe.

This microcontroller is suited for embedded systems in consumer electronics, industrial automation, motor control, medical devices, and automotive applications. It provides a robust and efficient platform for developers with advanced peripheral integration and low power features.
