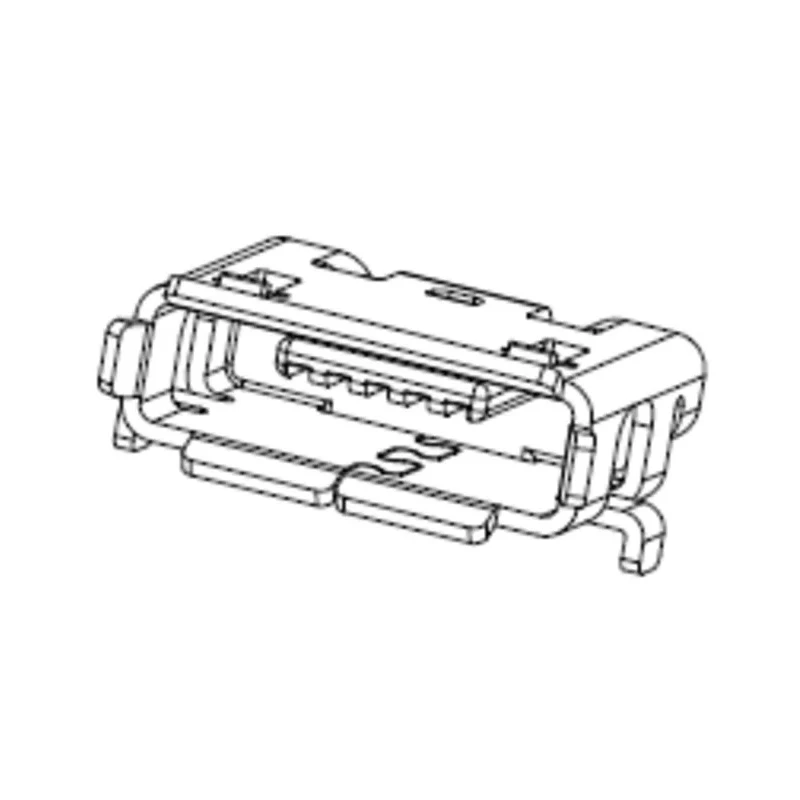

Molex Right Angle Surface Mount Female 1 Port Micro USB Type AB USB Connector USB 2.0 47589-1001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.8A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 4758 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| USB Type | Micro USB Type AB |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Supports a maximum current of 1.8A ensuring stable connectivity.
- Operates safely at voltages up to 30V suitable for various electronic applications.
- Surface mount design with right angle orientation allows compact PCB layouts.
- Constructed with copper alloy contacts for enhanced conductivity and durability.
- Termination type is solder, ensuring firm attachment to circuit boards.
- Operates under a temperature range from -30°C to 85°C for versatile use environments.
- Designed as a 1-port female USB connector specifically for Micro USB Type AB interface.
- Matte tin plated shell provides corrosion resistance and lead-free construction supports environmental standards.
Product Description
Molex 47589-1001 is a female USB connector designed as a right angle, surface mount Micro USB Type AB connector compliant with USB 2.0 specifications. It supports reliable data transmission and power delivery in electronic devices, designed to operate at voltages up to 30V and currents up to 1.8A.
This connector features a copper alloy contact material with a matte tin plated shell for corrosion resistance and durability. The termination type is solder, ensuring a secure and stable attachment to printed circuit boards (PCBs). Its right angle orientation and surface mount design optimize space on compact PCBs, making it suitable for use in mobile, industrial, and consumer electronics.
The connector is rated for an operating temperature range from -30°C to 85°C, making it reliable in various environmental conditions. It comes from the 4758 series and is manufactured in China. The product is lead-free, supporting eco-friendly electronics manufacturing practices.
Supports a maximum current of 1.8A ensuring stable connectivity. Operates safely at voltages up to 30V suitable for various electronic applications. Surface mount design with right angle orientation allows compact PCB layouts.
Constructed with copper alloy contacts for enhanced conductivity and durability. Termination type is solder, ensuring firm attachment to circuit boards. Operates under a temperature range from -30°C to 85°C for versatile use environments.
Designed as a 1-port female USB connector specifically for Micro USB Type AB interface. Matte tin plated shell provides corrosion resistance and lead-free construction supports environmental standards.
This connector is commonly used in electronic and electrical applications including consumer electronics, industrial equipment, and communication devices where robust USB 2.0 connectivity is required. It supports USB Type AB interface devices and is suited for mounting on PCBs where right angle connections are necessary to optimize space.
Explore a wide range of electronic connectors and components including USB Connectors at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 1.8A, ensuring stable connectivity for various applications.
It operates safely at voltages up to 30V, making it suitable for a range of electronic applications.
This connector is designed specifically for the Micro USB Type AB interface, compliant with USB 2.0 specifications.
It features a right angle orientation, which allows for compact PCB layouts and efficient use of space.
The termination type is solder, ensuring a firm attachment to printed circuit boards (PCBs).
It is constructed with copper alloy contacts and has a matte tin plated shell for enhanced conductivity and corrosion resistance.
It operates under a temperature range from -30°C to 85°C, suitable for various environments.
This model is designed as a 1-port female USB connector.
This connector is part of the 4758 series from Molex.
The connector is manufactured in China.
It is commonly used in electronic and electrical applications, including consumer electronics, industrial equipment, and communication devices.
The connector features a lead-free construction, supporting eco-friendly electronics manufacturing practices.
