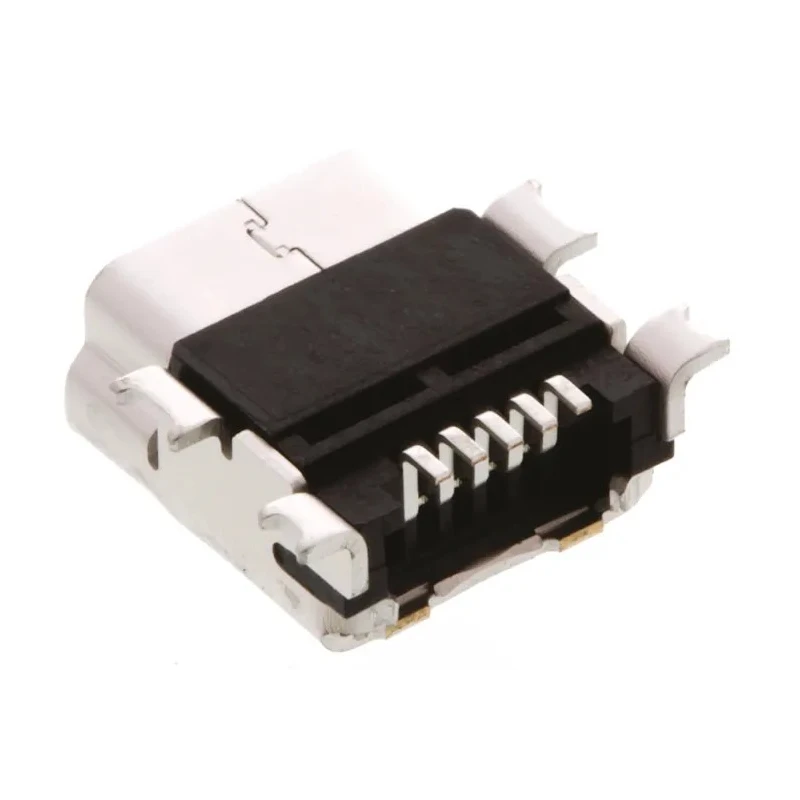

Molex Right Angle Surface Mount Female 1 Port USB Type B Connector USB 2.0 1A 30V 54819-0572

Molex 54819-0572 Right Angle USB Type B Connector is a compact, surface mount female USB 2.0 connector designed for modern electronic components and portable devices. It supports USB On-The-Go (OTG) standard which facilitates direct communication between USB devices without needing a PC host. With a current rating of 1A and a voltage rating of 30V, it is suitable for various low-power equipment applications.

The connector utilizes copper alloy contacts that ensure excellent conductive properties and longevity under repeated connections. The right angle orientation and surface mount design allow for efficient use of PCB space, catering to tightly packed electronic systems. It operates reliably across a temperature range from -20°C to +85°C, making it suitable for diverse environmental conditions encountered in industrial, commercial, and consumer electronics.

This USB connector is designed to achieve excellent electromagnetic compatibility with superior RFI and EMI performance, minimizing interference in signal transmission. Its 5-pin pitch configuration, which includes an ID pin, supports USB OTG applications and allows compatibility with various USB-B devices and cable assemblies. It is ideal for use in manufacturing, telecommunications, data networking, instrumentation, and other electronics manufacturing sectors.

Available in both through-hole and surface mount versions, Molex 54819-0572 connectors provide assembly flexibility and enhanced durability. The rated expected life cycle of 5000 mating cycles ensures long-term reliability in rigorous usage scenarios.

Complies with USB 2.0 standard supporting high-speed data transfers. Compact right angle design for efficient PCB layout integration. Copper alloy contacts provide reliable electrical contact and longevity. Rated for 1 Ampere current and 30 Volt voltage.

Operating temperature range from -20°C to +85°C enables broad environmental use. Solder termination ensures durable mounting on printed circuit boards. Supports USB On-The-Go functions allowing USB device interconnectivity.

Excellent RFI/EMI performance maintains signal integrity. Expected mating durability of 5000 cycles for dependable use. Available in through-hole and SMT versions for assembly versatility.

This Molex USB connector is ideal for industrial electronics manufacturing, testing equipment, and a range of telecommunications and audio/video devices requiring reliable USB interface connections. For other USB Connectors and electronic components, explore EnvMart’s electronics categories for comprehensive product selections.
