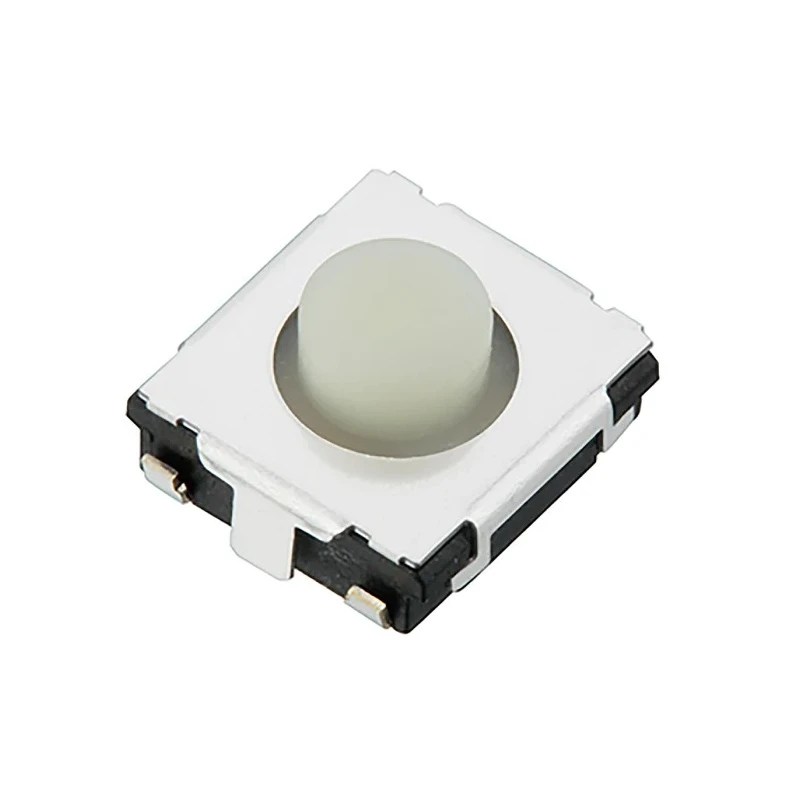

Panasonic White Tactile Switch Push Plate 1.3 mm SPST 10 μA 20mA 15 V dc Surface EVQQ2H03W
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Panasonic |
| Height | 3.1mm |
| Length | 6.5mm |
| Model | EVQQ2H03W |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | EVQQ2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| External Dimensions | 6.5 mmx6.0mm,Height1.8mm |
| Terminal type | J Bend |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Actuator Length | 1.3mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 10, 20μA |
| Operating Force | 1N |
| Mechanical Life | 1000000Cycles |
Key Features
- Compact dimensions with length 6.5 mm and width 1.8 mm provide easy integration.
- Push plate actuator style designed for precise momentary switch operation.
- Robust operating force of 1N ensures reliable tactile feedback.
- Wide operating temperature range from -40°C to 85°C suits various environments.
- High mechanical life of 1,000,000 cycles ensures durability in industrial use.
- SPST contact configuration delivers stable single-pole single-throw switching.
- Surface mount design with J Bend terminal type for efficient PCB assembly.
- RoHS compliant, supporting environmental and safety standards.
Product Description
Panasonic EVQQ2H03W is a white tactile switch push plate designed for surface mount applications with precise 1.3 mm actuator length. This tactile switch features a SPST contact configuration supporting low current switching from 10 μA up to 20 mA at 15 V dc, making it ideal for sensitive electronic controls.
The switch body measures 6.5 mm in length and 1.8 mm in width, with a compact external size of 6.5 mm x 6.0 mm and a height of approximately 1.8 mm excluding the push plate, enabling it to fit in space-constrained circuit designs. It operates with a mechanical life expectancy of one million cycles, ensuring long-term reliability for demanding industrial or consumer applications.
An operating force of 1 Newton offers tactile feedback with each press, suitable for keyboards, PC mice, and automotive audio controls. The switch operates reliably over a temperature range from -40°C to +85°C, enhancing versatility in environmental conditions.
Mount type is surface mount with J Bend terminal type, facilitating easy PCB installation. The switch is RoHS compliant, aligning with environmental regulations for electronic components.
Compact and durable tactile switch with surface mount design. High reliability with 1 million mechanical cycles. Low contact current and voltage rating for sensitive controls. Wide ambient temperature range for diverse industrial uses.
Suitable for consumer electronics and automotive controls. Manufactured in Malaysia ensuring quality and consistency. Push plate actuator style enhances user interaction experience. SPST contact provides simple switching logic.
External dimensions of 6.5 mm × 6.0 mm facilitate design flexibility.
This Panasonic tactile switch EVQQ2H03W caters to electronic manufacturing, automotive, gaming, and laboratory instrument applications where precise, reliable switching is critical. Explore more Tactile Switch options in Electronics & Electricals category on EnvMart for comprehensive sourcing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch features an SPST (Single Pole Single Throw) contact configuration, which allows for stable single-pole switching.
The external dimensions of this model are 6.5 mm in length, 6.0 mm in width, and approximately 1.8 mm in height.
It operates reliably over a wide temperature range from -40°C to +85°C, making it suitable for various environmental conditions.
This tactile switch has a mechanical life expectancy of 1,000,000 cycles, ensuring long-term reliability for various applications.
The switch uses a J Bend terminal type, which facilitates easy installation on printed circuit boards (PCBs).
The actuator length of the push plate is 1.3 mm, designed for precise momentary switch operation.
The operating force for this model is 1 Newton, providing reliable tactile feedback with each press.
The switch supports a contact current rating from 10 μA up to 20 mA at a DC voltage of 15 V.
Yes, this tactile switch is RoHS compliant, aligning with environmental regulations for electronic components.
This model is suitable for applications in consumer electronics, automotive controls, gaming, and laboratory instruments where precise switching is critical.
The switch body measures 6.5 mm in length, 1.8 mm in width, and has a height of approximately 3.1 mm.
The EVQQ2H03W is manufactured in Malaysia, ensuring quality and consistency in production.
