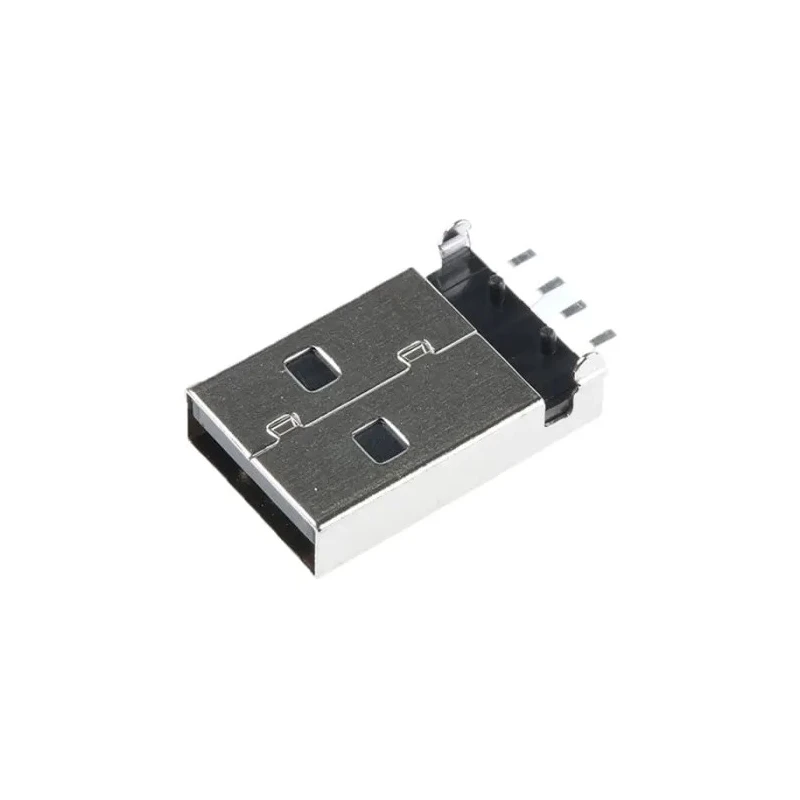

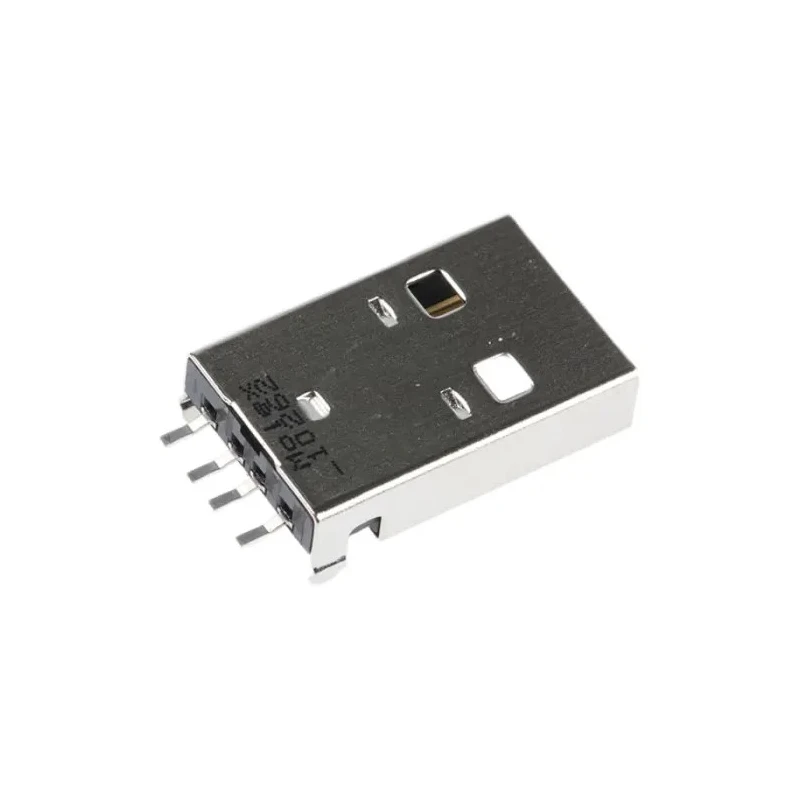

Molex Right Angle Surface Mount Male USB Type A Connector USB 2.0 1 Port 48037-1000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 150V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Surface |
| Contact Material | Tin |
| Series | 48037 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| USB Type | USB Type A |
| Connector Gender | Male |
| USB Specification | USB 2.0 |
Key Features
- Designed for surface mounting on PCBs with a thickness of 1.2 to 1.6mm.
- Supports USB 2.0 standard with 1.5A current and 150V voltage ratings.
- Right angle orientation ideal for space-efficient electronic assemblies.
- Gold-plated tin contacts ensure corrosion resistance and excellent conductivity.
- Operates in a wide temperature range from -20°C to 85°C.
- Polarised design prevents incorrect connections and damage.
- Solder termination provides durable, dust and moisture resistant installation.
- Suitable for use in computer systems, device chargers, and communications applications.
Product Description
Molex 48037-1000 is a high-quality right angle, surface mount male USB Type A connector compliant with USB 2.0 specifications. It is engineered for durable, reliable connectivity on printed circuit boards with thickness from 1.2 to 1.6mm. The connector features gold-plated tin contacts to resist corrosion and ensure excellent electrical conductivity.
Operating safely up to 150V and carrying a current of 1.5A, it supports stable data transmission in consumer and commercial devices. Its wide temperature range from -20°C to +85°C allows deployment in diverse industrial, laboratory, and communication equipment environments.
The right angle orientation is optimal for installations requiring space efficiency and ease of routing wiring on PCBs. It is polarized to avoid damage from incorrect connections, secured via a solder termination method that prevents dust and moisture infiltration.
This connector is ideal for computer systems, device chargers, communication devices, and other electronics requiring robust USB interface connections. It minimizes electromagnetic interference through full electrical shielding to maintain signal integrity.
Designed for surface mount on 1.2 - 1.6mm PCB thicknesses. Supports USB 2.0 with 1.5A current and 150V voltage ratings. Right angle orientation for compact PCB layouts. Gold-plated tin contacts for corrosion resistance and conductivity.
Wide operating temperature range suitable for many environments. Polarized and secure solder termination for durability and reliability. Effective EMI shielding for stable data transmission. Applicable in computer, communications, and charger applications.
As part of the Molex 48037 Series, this connector is manufactured in China and is a trusted component in electronic component design. Browse EnvMart’s Electronics Components and USB Connectors categories to explore related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 150V.
This model supports a current capacity of 1.5A.
It operates within a temperature range of -20°C to +85°C.
The connector features a solder termination type for secure installation.
It has a right angle orientation, which is ideal for space-efficient layouts on PCBs.
This connector is designed for surface mounting on PCBs with a thickness of 1.2 to 1.6mm.
The contacts are made of gold-plated tin, which provides corrosion resistance and good conductivity.
This model has 1 port.
Yes, it is polarized to prevent incorrect connections and potential damage.
It is suitable for use in computer systems, device chargers, and communication devices.
This connector is part of the Molex 48037 Series.
The connector is manufactured in China.
