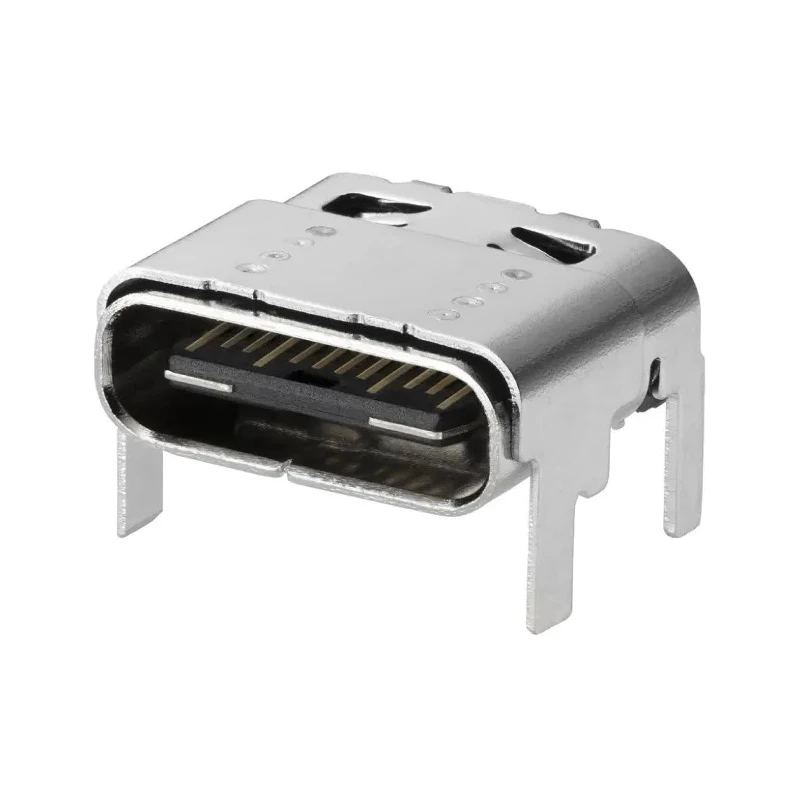

Molex Right Angle Surface Mount Female USB Connector, 1 Port, USB Type C 3.2, 30V, 5A Current, Model 201267-0005
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 201267 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| USB Type | USB Type C |
| Connector Gender | Female |
| USB Specification | 3.2 |
Key Features
- This USB connector features a right angle orientation for optimized PCB layout.
- Single port configuration supports universal serial bus connections.
- Surface mount type ensures secure and reliable attachment to circuit boards.
- Contact material is copper alloy with 0.76μm gold plating ensuring excellent conductivity.
- Operating temperature ranges from -40°C to 105°C for durable performance.
- Termination type is solder for stable electrical and mechanical connection.
- Series number 201267 provides assured quality and consistent compatibility.
- Designed for standard USB 3.2 specifications enabling high data transfer rates.
Product Description
Molex 201267-0005 is a high-quality right angle surface mount female USB connector designed specifically for USB Type C 3.2 applications. This connector supports a single port configuration with a current rating of 5A and operates at a voltage of 30V, making it suitable for a wide range of electronic and electrical devices.
The connector's right angle orientation allows for efficient PCB layout and space saving on circuit boards. Its surface mount design ensures a sturdy and reliable mechanical connection using solder termination type. The contacts are made from copper alloy and plated with 0.76μm of gold (Au), ensuring excellent electrical conductivity and corrosion resistance, which contributes to long-term durability.
Operating temperature ranges from -40°C to 105°C, allowing this connector to perform reliably across harsh environmental conditions. It does not carry any specific standards or hazardous area certifications but follows the specifications of the 201267 series from Molex.
This USB connector is widely used in various industrial, commercial, and consumer electronics applications such as computing devices, communication equipment, and embedded systems that require robust USB Type C connections.
This USB Connector features a right angle orientation for optimized PCB layout. Single port configuration supports universal serial bus connections. Surface mount type ensures secure and reliable attachment to circuit boards.
Contact material is copper alloy with 0.76μm gold plating ensuring excellent conductivity. Operating temperature ranges from -40°C to 105°C for durable performance. Termination type is solder for stable electrical and mechanical connection.
Series number 201267 provides assured quality and consistent compatibility. Designed for standard USB 3.2 specifications enabling high data transfer rates. Suitable for a wide variety of applications including consumer electronics and industrial equipment.
Explore more connectors and USB components from the Molex brand and find compatible products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This USB connector has a current rating of 5A, making it suitable for various electronic applications.
It supports a voltage of 30V, which is standard for many USB applications.
The operating temperature range is from -40°C to 105°C, allowing it to function in a variety of environments.
This connector uses solder termination for stable electrical and mechanical connections.
It features a single port configuration, designed for universal serial bus connections.
The contacts are made from copper alloy and plated with 0.76μm of gold for excellent conductivity.
It has a right angle orientation, which helps optimize PCB layout and saves space on circuit boards.
This model is designed for USB Type C 3.2 specifications, enabling high data transfer rates.
It is a surface mount type, ensuring secure and reliable attachment to circuit boards.
The country of origin for this connector is China.
It belongs to the 201267 series, which provides assured quality and consistent compatibility.
It is widely used in various industrial, commercial, and consumer electronics applications, such as computing devices and embedded systems.
